Gigabyte Z370 HD3 Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

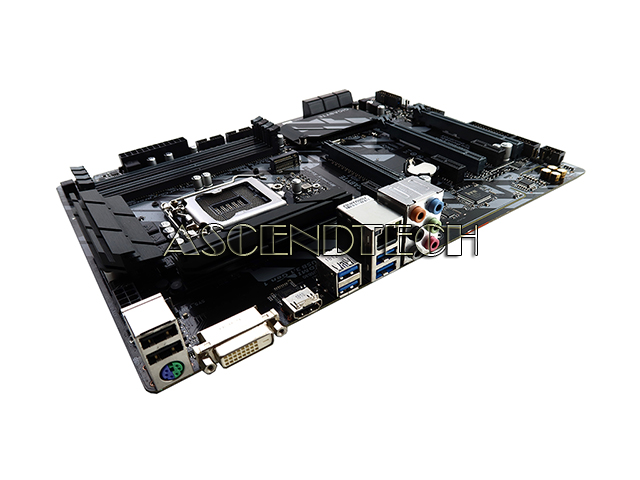

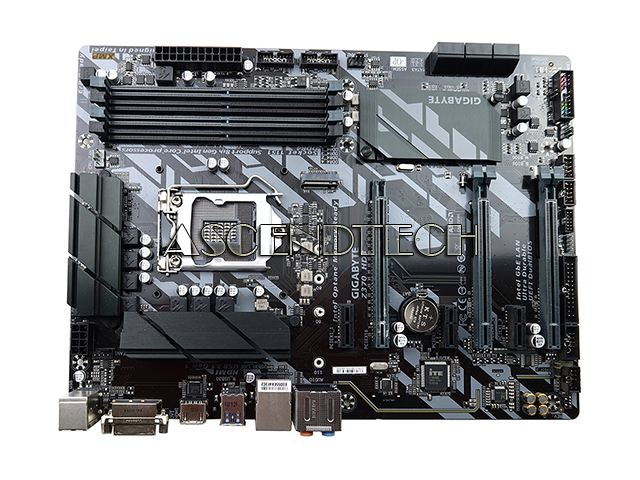

Gigabyte Z370 Hd3 Motherboard No I/O
  Enlarge
Gigabyte Z370 Hd3 Motherboard No I/O
Gigabyte Z370 Hd3 Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKGIGZ370HD3
Brand Gigabyte
Model Z370 HD3
Category Intel Lga1151 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!

Description

Gigabyte Z370 HD3 Intel Chipset Z370 Socket LGA1151 DDR4 HDMI DVI-D USB SATA 6Gb/s ATX Desktop Motherboard.

Chipset: Intel Z370
Socket: Intel LGA1151
Compatible/Supported CPU: 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 RAID 5 and RAID 10
Wireless Lan Support: Intel GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek ALC892 Audio Codec
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 3x system fan headers; 1x RGB LED strip header; 6x SATA 6Gb/s connectors; 1x M.2 Socket 3 connector; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 2x USB 3.1 Gen 1 headers; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1x parallel port header; 1x serial port header; 1x Clear CMOS jumper.
Input/Output Ports: 1x PS/2 keyboard/mouse port; 1x DVI-D port; 1x HDMI port; 4x USB 3.1 Gen 1 ports; 2x USB 2.0/1.1 ports; 1x RJ-45 port; 6x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In).
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16); 2x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2); 3x PCI Express x1 slots.
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit
Features: Supports 8th Gen Intel Core Processors; Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs; Intel Optane Memory Ready; 2-Way CrossFire Multi-Graphics; Intel Gigabit LAN with cFosSpeed Internet Accelerator Software; Ultra Durable 25KV ESD and 15KV Surge LAN Protection; High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting; Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface; RGB FUSION supports RGB LED strips in 7 colors; Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP; Anti-Sulfur Resistors Design; APP Center Including EasyTune and Cloud Station Utilities.

Additional Specifications:

Unique Features
Support for APP Center
- Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

BIOS
2x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
- The DVI-D port does not support D-Sub connection by adapter.
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB

CPU Support

Socket LGA 1151

CPU ModelFrequencyL3 CacheCore NameProcessWattageSince BIOS Version
Core i9-9900KF3.60GHz16MBCoffee Lake14nm95WF11
Core i9-9900KF3.60GHz16MBCoffee Lake14nm95WF11
Core i9-9900KS4.00GHz16MBCoffee Lake14nm127WF11
Core i9-9900K3.60GHz16MBCoffee Lake14nm95WF11
Core i9-9900K3.60GHz16MBCoffee Lake14nm95WF11
Core i9-99003.10GHz16MBCoffee Lake14nm65WF11
Core i9-9900T2.10GHz16MBCoffee Lake14nm35WF11
Core i7-9700KF3.60GHz12MBCoffee Lake14nm95WF11
Core i7-9700KF3.60GHz12MBCoffee Lake14nm95WF11
Core i7-9700K3.60GHz12MBCoffee Lake14nm95WF11
Core i7-9700K3.60GHz12MBCoffee Lake14nm95WF11
Core i7-9700F3.00GHz12MBCoffee Lake14nm65WF11
Core i7-97003.00GHz12MBCoffee Lake14nm65WF11
Core i7-9700T2.00GHz12MBCoffee Lake14nm35WF11
Core i7-8086K4.00GHz12MBCoffee Lake14nm95WF8
Core i7-8700K3.70GHz12MBCoffee Lake14nm95WF3
Core i7-87003.20GHz12MBCoffee Lake14nm65WF3
Core i7-8700T2.40GHz12MBCoffee Lake14nm35WF6
Core i5-9600KF3.70GHz9MBCoffee Lake14nm95WF11
Core i5-9600KF3.70GHz9MBCoffee Lake14nm95WF11
Core i5-9600K3.70GHz9MBCoffee Lake14nm95WF11
Core i5-9600K3.70GHz9MBCoffee Lake14nm95WF11
Core i5-96003.10GHz9MBCoffee Lake14nm65WF11
Core i5-9600T2.30GHz9MBCoffee Lake14nm35WF11
Core i5-9500F3.00GHz9MBCoffee Lake14nm65WF11
Core i5-95003.00GHz9MBCoffee Lake14nm65WF11
Core i5-9500T2.20GHz9MBCoffee Lake14nm35WF11
Core i5-9400F2.90GHz9MBCoffee Lake14nm65WF11
Core i5-9400F2.90GHz9MBCoffee Lake14nm65WF11
Core i5-9400F2.90GHz9MBCoffee Lake14nm65WF11
Core i5-94002.90GHz9MBCoffee Lake14nm65WF11
Core i5-94002.90GHz9MBCoffee Lake14nm65WF11
Core i5-94002.90GHz9MBCoffee Lake14nm65WF11
Core i5-9400T1.80GHz9MBCoffee Lake14nm35WF11
Core i5-9400T1.80GHz9MBCoffee Lake14nm35WF11
Core i5-8600K3.60GHz9MBCoffee Lake14nm95WF3
Core i5-86003.10GHz9MBCoffee Lake14nm65WF6
Core i5-8600T2.30GHz9MBCoffee Lake14nm35WF6
Core i5-85003.00GHz9MBCoffee Lake14nm65WF6
Core i5-8500T2.10GHz9MBCoffee Lake14nm35WF6
Core i5-84002.80GHz9MBCoffee Lake14nm65WF3
Core i5-8400T1.70GHz9MBCoffee Lake14nm35WF6
Core i3-9350KF4.00GHz8MBCoffee Lake14nm91WF11
Core i3-9350K4.00GHz8MBCoffee Lake14nm91WF11
Core i3-93203.70GHz8MBCoffee Lake14nm62WF11
Core i3-93003.70GHz8MBCoffee Lake14nm62WF11
Core i3-9300T3.20GHz8MBCoffee Lake14nm35WF11
Core i3-9100F3.60GHz6MBCoffee Lake14nm65WF11
Core i3-9100F3.60GHz6MBCoffee Lake14nm65WF11
Core i3-91003.60GHz6MBCoffee Lake14nm65WF11
Core i3-9100T3.10GHz6MBCoffee Lake14nm35WF11
Core i3-8350K4.00GHz8MBCoffee Lake14nm91WF3
Core i3-83003.70GHz8MBCoffee Lake14nm62WF6
Core i3-8300T3.20GHz8MBCoffee Lake14nm35WF6
Core i3-81003.60GHz6MBCoffee Lake14nm65WF3
Core i3-81003.60GHz6MBCoffee Lake14nm65WF6
Core i3-8100T3.10GHz6MBCoffee Lake14nm35WF6
Pentium G56204.00GHz4MBCoffee Lake14nm54WF11
Pentium G56003.90GHz4MBCoffee Lake14nm54WF6
Pentium G5600F3.90GHz4MBCoffee Lake14nm54WF11
Pentium G5600T3.30GHz4MBCoffee Lake14nm54WF6
Pentium G55003.80GHz4MBCoffee Lake14nm54WF6
Pentium G5500T3.20GHz4MBCoffee Lake14nm35WF6
Pentium G54203.80GHz4MBCoffee Lake14nm58WF11
Pentium G54203.80GHz4MBCoffee Lake14nm58WF11
Pentium G5420T3.20GHz4MBCoffee Lake14nm58WF11
Pentium G5420T3.20GHz4MBCoffee Lake14nm58WF11
Pentium G54003.70GHz4MBCoffee Lake14nm54WF6
Pentium G54003.70GHz4MBCoffee Lake14nm58WF6
Pentium G5400T3.10GHz4MBCoffee Lake14nm35WF6
Pentium G5400T3.10GHz4MBCoffee Lake14nm35WF6
Celeron G49503.30GHz2MBCoffee Lake14nm54WF11
Celeron G49203.20GHz2MBCoffee Lake14nm54WF6
Celeron G49003.10GHz2MBCoffee Lake14nm54WF6
Celeron G4900T2.90GHz2MBCoffee Lake14nm35WF6
