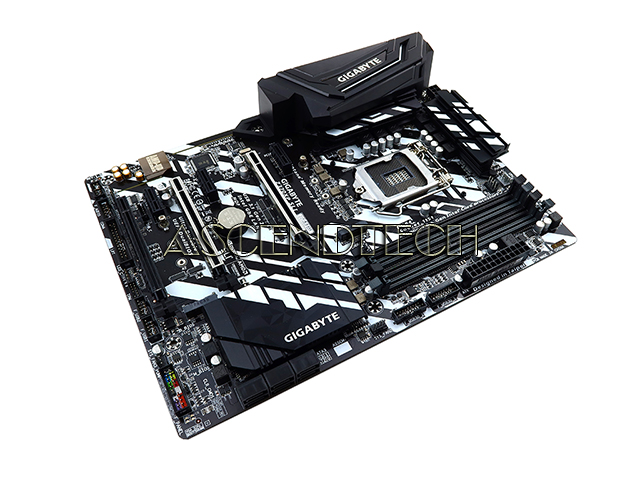

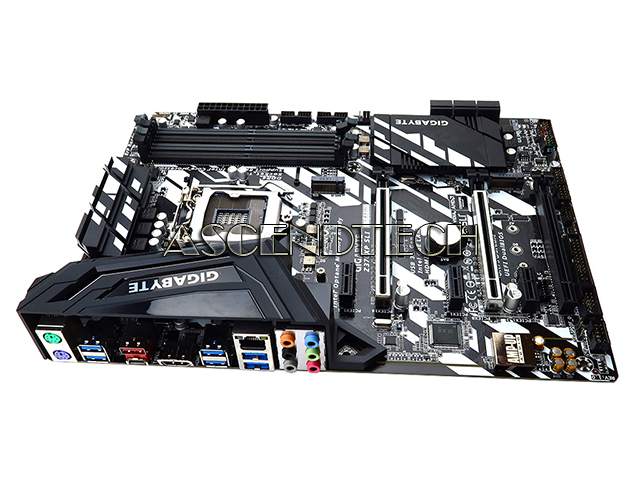

Gigabyte Z370XP SLI Rev:1.0 MB No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDSKGZ370XPSLI
Brand Gigabyte
Model Z370XP SLI Rev: 1.0
Category Intel Lga1151 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!
Description
Gigabyte Z370XP SLI Rev: 1.0 Intel Express Chipset Z370 Socket LGA1151 DDR4 HDMI USB SATA 6Gb/s ATX Desktop Motherboard.
Chipset: Intel Z370 Express
Socket: Intel LGA1151
Compatible/Supported CPU: Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors
Max Supported Memory: Up to 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10
Wireless Lan Support: Intel GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek ALC1220 codec
Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 2 x system fan headers; 1 x system fan/water cooling pump header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 2 x USB 3.1 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Thunderbolt add-in card connector; 1 x serial port header; 1 x parallel port header; 1 x Clear CMOS jumper.
Input/Output Ports: 1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x HDMI port; 1 x USB Type-C port, with USB 3.1 Gen 2 support; 1 x USB 3.1 Gen 2 Type-A port (red); 6 x USB 3.1 Gen 1 ports; 1 x RJ-45 port; 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In).
Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16); 1 x PCI Express x16 slot, running at x8 (PCIEX8); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 3 x PCI Express x1 slots.
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit
Features: Supports 8th Gen Intel Core Processors; Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs; Intel Optane Memory Ready; ASMedia 3142 USB 3.1 Gen2 with USB Type-C and Type-A; Multi-Way Graphics Support with PCIe Armor and Ultra Durable Design; ALC1220 120dB SNR HD Audio with Smart Headphone Amp; Intel Gigabit LAN with cFosSpeed Internet Accelerator Software; Ultra Durable 25KV ESD and 15KV Surge LAN Protection; Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface; RGB FUSION supports RGB LED strips in 7 colors; Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP; Anti-Sulfur Resistors Design; Lightning-Fast Intel Thunderbolt 3 AIC Support; APP Center Including EasyTune and Cloud Station Utilities.
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 30 Hz
Maximum shared memory of 1 GB
Multi-Graphics Technology
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFireX and 3-Way/2-Way AMD CrossFire technologies
USB
Chipset+ASMedia USB 3.1 Gen 2 Controller:
1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 2.0/1.1 ports available through the internal USB headers
I/O Controller
iTE I/O Controller Chip
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
3D OSD
BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
CPU Support
Socket 1151 | |||||||
|---|---|---|---|---|---|---|---|
| Motherboard | |||||||
| Vendor | CPU Model | Frequency | L3 Cache | GPU Frequency | Core Name | Process | Wattage |
| Intel | Core i9-9900KF | 3.60GHz | 16MB | N/A | Coffee Lake | 14nm | 95W |
| Intel | Core i9-9900KF | 3.60GHz | 16MB | N/A | Coffee Lake | 14nm | 95W |
| Intel | Core i9-9900KS | 4.00GHz | 16MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 127W |
| Intel | Core i9-9900K | 3.60GHz | 16MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i9-9900K | 3.60GHz | 16MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i9-9900 | 3.10GHz | 16MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i9-9900T | 2.10GHz | 16MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i7-9700KF | 3.60GHz | 12MB | N/A | Coffee Lake | 14nm | 95W |
| Intel | Core i7-9700KF | 3.60GHz | 12MB | N/A | Coffee Lake | 14nm | 95W |
| Intel | Core i7-9700K | 3.60GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i7-9700K | 3.60GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i7-9700F | 3.00GHz | 12MB | N/A | Coffee Lake | 14nm | 65W |
| Intel | Core i7-9700 | 3.00GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i7-9700T | 2.00GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i7-8086K | 4.00GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i7-8700K | 3.70GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i7-8700 | 3.20GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i7-8700T | 2.40GHz | 12MB | 350 MHz / 1200 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i5-9600KF | 3.70GHz | 9MB | N/A | Coffee Lake | 14nm | 95W |
| Intel | Core i5-9600KF | 3.70GHz | 9MB | N/A | Coffee Lake | 14nm | 95W |
| Intel | Core i5-9600K | 3.70GHz | 9MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i5-9600K | 3.70GHz | 9MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i5-9600 | 3.10GHz | 9MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9600T | 2.30GHz | 9MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i5-9500F | 3.00GHz | 9MB | N/A | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9500 | 3.00GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9500T | 2.20GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i5-9400F | 2.90GHz | 9MB | N/A | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9400F | 2.90GHz | 9MB | N/A | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9400F | 2.90GHz | 9MB | N/A | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9400 | 2.90GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9400 | 2.90GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9400 | 2.90GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-9400T | 1.80GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i5-9400T | 1.80GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i5-8600K | 3.60GHz | 9MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 95W |
| Intel | Core i5-8600 | 3.10GHz | 9MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-8600T | 2.30GHz | 9MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i5-8500 | 3.00GHz | 9MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-8500T | 2.10GHz | 9MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i5-8400 | 2.80GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i5-8400T | 1.70GHz | 9MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i3-9350KF | 4.00GHz | 8MB | N/A | Coffee Lake | 14nm | 91W |
| Intel | Core i3-9350K | 4.00GHz | 8MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 91W |
| Intel | Core i3-9320 | 3.70GHz | 8MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 62W |
| Intel | Core i3-9300 | 3.70GHz | 8MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 62W |
| Intel | Core i3-9300T | 3.20GHz | 8MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i3-9100F | 3.60GHz | 6MB | N/A | Coffee Lake | 14nm | 65W |
| Intel | Core i3-9100F | 3.60GHz | 6MB | N/A | Coffee Lake | 14nm | 65W |
| Intel | Core i3-9100 | 3.60GHz | 6MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i3-9100T | 3.10GHz | 6MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i3-8350K | 4.00GHz | 8MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 91W |
| Intel | Core i3-8300 | 3.70GHz | 8MB | 350 MHz / 1150 MHz | Coffee Lake | 14nm | 62W |
| Intel | Core i3-8300T | 3.20GHz | 8MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 35W |
| Intel | Core i3-8100 | 3.60GHz | 6MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i3-8100 | 3.60GHz | 6MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 65W |
| Intel | Core i3-8100T | 3.10GHz | 6MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 35W |
| Intel | Pentium G5620 | 4.00GHz | 4MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 54W |
| Intel | Pentium G5600 | 3.90GHz | 4MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 54W |
| Intel | Pentium G5600F | 3.90GHz | 4MB | N/A | Coffee Lake | 14nm | 54W |
| Intel | Pentium G5600T | 3.30GHz | 4MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 54W |
| Intel | Pentium G5500 | 3.80GHz | 4MB | 350 MHz / 1100 MHz | Coffee Lake | 14nm | 54W |
| Intel | Pentium G5500T | 3.20GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
| Intel | Pentium G5420 | 3.80GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 58W |
| Intel | Pentium G5420 | 3.80GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 58W |
| Intel | Pentium G5420T | 3.20GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 58W |
| Intel | Pentium G5420T | 3.20GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 58W |
| Intel | Pentium G5400 | 3.70GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 54W |
| Intel | Pentium G5400 | 3.70GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 58W |
| Intel | Pentium G5400T | 3.10GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
| Intel | Pentium G5400T | 3.10GHz | 4MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
| Intel | Celeron G4950 | 3.30GHz | 2MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 54W |
| Intel | Celeron G4920 | 3.20GHz | 2MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 54W |
| Intel | Celeron G4900 | 3.10GHz | 2MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 54W |
| Intel | Celeron G4900T | 2.90GHz | 2MB | 350 MHz / 1050 MHz | Coffee Lake | 14nm | 35W |
