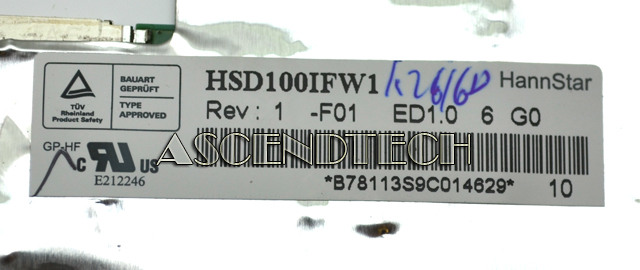

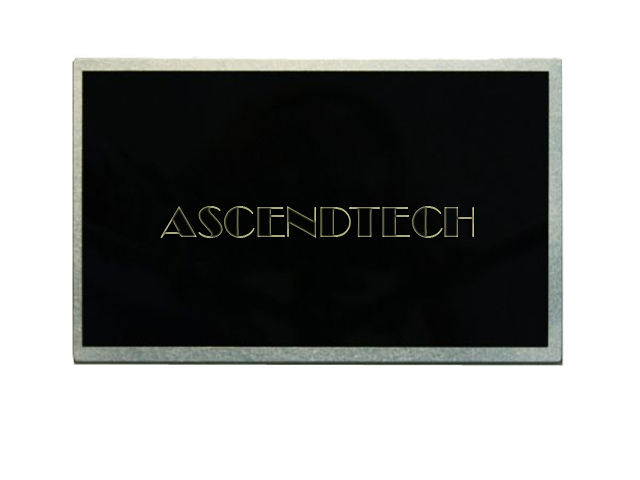

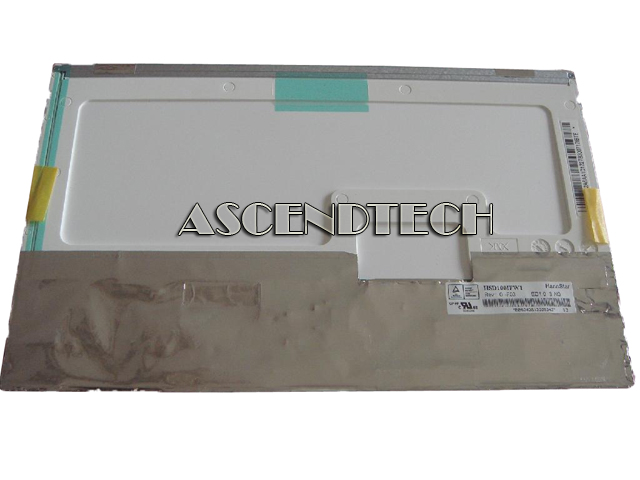

HannStar10.1" TFT LED LCD Screen Panel

HannStar Display model HSD100IFW1-F01 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 (17:10) inch diagonally measured active display area with WSVGA (1024 horizontal by 600 vertical pixel) resolution.

Features:

■ 10.1 (17:10 diagonal) inch configuration

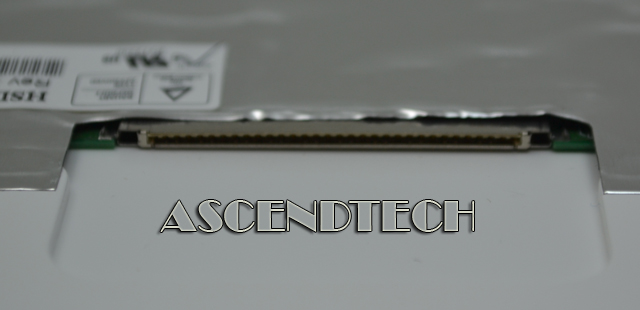

■ One channel LVDS interface
■ 262K color by 6 bit R.G.B signal input
■ RoHS / Halogen Free Compliance


Applications:

Mobile NB
Digital Photo frame
Display terminal for AV application

Specifications:

Outline Dimension 235 x 145.8 x 5.5 (Typ.) mm
Display area 220.416(H) x 129.15(V) mm
Number of Pixel 1024 RGB (H) x 600(V) pixels
Pixel pitch 0.21525(H) x 0.21525(V) mm
Pixel arrangement RGB Vertical stripe
Display mode Normally white
Surface treatment Glare, Hard-Coating (3H) with Normal film
Weight 260 (Typ.) g
Back-light Single LED (Side-Light type)
Power Logic System 1.1 (Max.) W
Consumption B/L System 3.1 (Max.) W
