HITACHI-LG 48X CD-ROM DRIVE IDE ATAPI

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

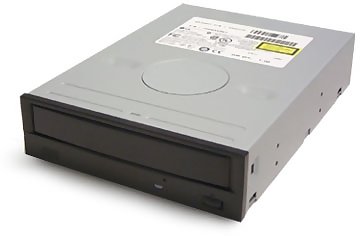

Hitachi-Lg 48X Cd-Rom Drive Ide Atapi. Model: Gcr-8480B
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code CDHLC8480B
Brand Hitachi / Lg Corp.
Model GCR-8480B
Category Cd-Rom Drives

Description

This CD-ROM drive supports a 75-millisecond (ms) average access time and a maximum 7,200-kilobytes per second (KBps) sustained transfer rate. The drive can be mounted vertically or horizontally in the case.

Drive Mounting Orientation Horizontal or vertical
Drive Size Industry-standard 5.25-inch half-height form factor
Performance

Supported CD-ROM Types
  • CD-Audio
  • CD-DA (Mode 1, Mode 2, Form 1, and Form 2)
  • CD Extra
  • CD-I Ready
  • CD-ROM (Mode 1 and Mode 2)
  • CD-ROM XA ready
  • CD-RW
  • Enhanced Music CD (CD Plus)
  • Photo CD (single and multiple sessions)
Data Transfer Rate
  • 3,300 KBps inner diameter (22X)
  • 7,200 KBps outer diameter (48X)
Burst Transfer Rates
  • PIO mode 4
  • Multiword DMA mode2


  • 16.67 MBps
  • 16.67 MBps
Access Time 75 ms average access time (40X)
Rotational Speed 10,500 rpm (22X ~ 48X)
Interface IDE ATAPI
Memory Buffer 128K
Hard Error Rate 10 -15 block/bits
Sampling Frequency 44.1 kHz
Noise Ratio 42 db
Total Harmonic Distortion (THD) 0.05%
Environmental
Operating Temperature 5 to 45° C
Operating Humidity 10 to 80% non-condensing humidity
Other
Power Consumption DC 5 V, 1.0 A
DC 12 V, 0.50 A
Certifications FCC Class B, UL, CSA, TUV, IEC 825,
CE, NEMKO, SEMKO, DEMKO, DHHS,
