788625-001 LM215WF3 SLN1 | Hp 22-B013w Display Assembly 788625-001

HP 22-B013W Display Assembly 788625-001

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code LCDH22BLM215WF3

Brand Hp / Compaq - Hewlett-Packard

Model 788625-001 LM215WF3 SLN1

Category Aio / All In One Lcd Display Panels

Condition Like New Grade A

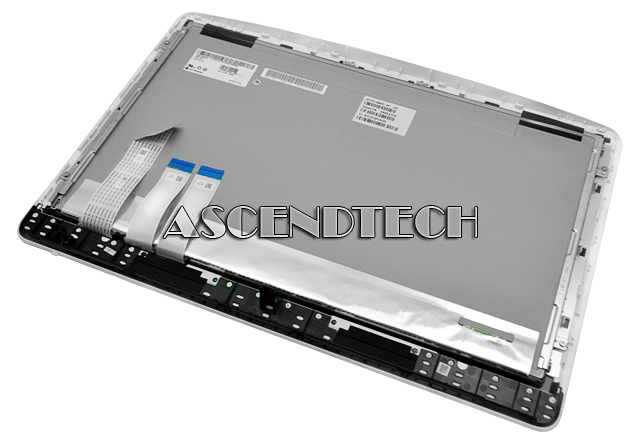

Condition Description Please note, this screen was pulled out of brand new HP desktop and is in very good cosmetic condition with no scratches on LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Please see our images.

Description

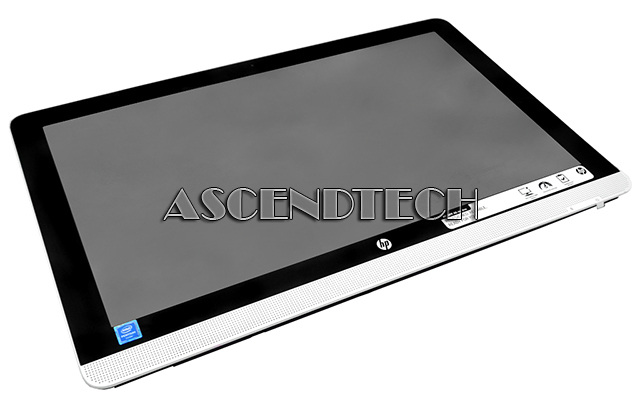

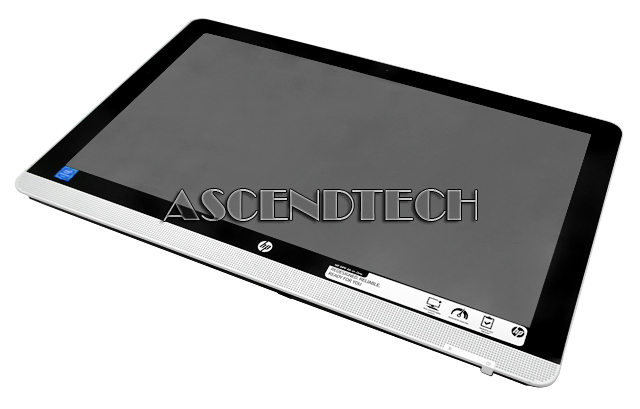

HP OOP All-in-One 22-b013w 21.5" 1920x1080 HD IPS White Touchscreen Display Panel Kit Assembly 788625-001 LG LM215WF3(SL)(N1). This LCD assembly has the white frame bezel and is designed for the HP OOP 22-b013w with touchscreen compatibility. Digitizer board is not included.

HP Screen Assembly Part Number: 788625-001
LG LCD Part Number: LM215WF3(SL)(N1)
Compatible Models: HP OOP All-in-One 22-b013w

Specifications:

Panel Size 21.5 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1920×1080 ,(RGB) FHD
Pixel Format RGB Vertical Stripe
Display Area 475.2(W)×267.3(H) mm
Bezel Opening 479.8(W)×272.3(H) mm
Outline Size 497.6(W)×292.2(H) ×11(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR＞10)
Display Mode IPS, Normally Black, Transmissive
Response Time 14 (Typ.)(G to G)
Refresh Rate 60Hz
Assembly Frame Color White w/ black digitizer glass

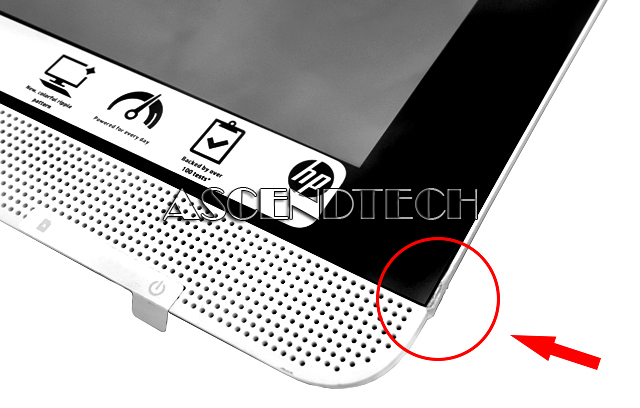

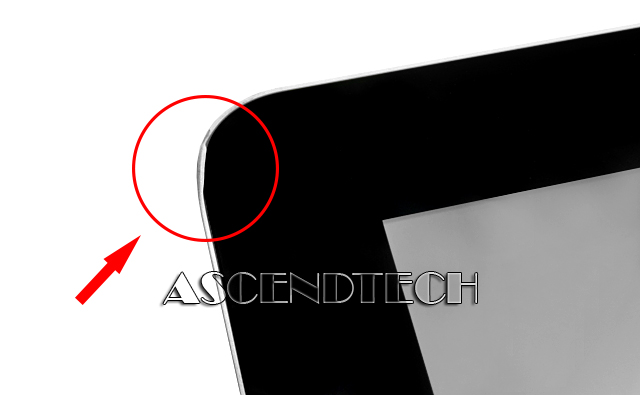

Minor dents on the outside frame shown in the images below; LCD has no scratches:
