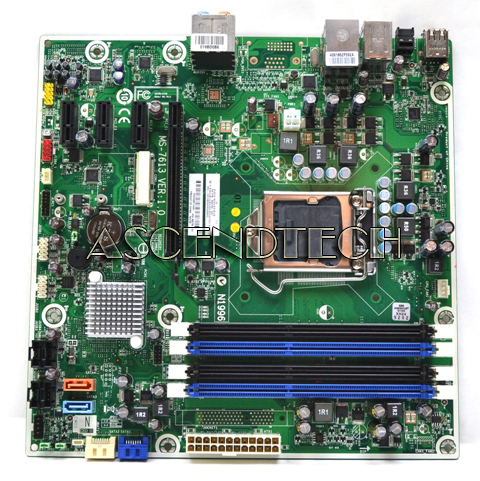

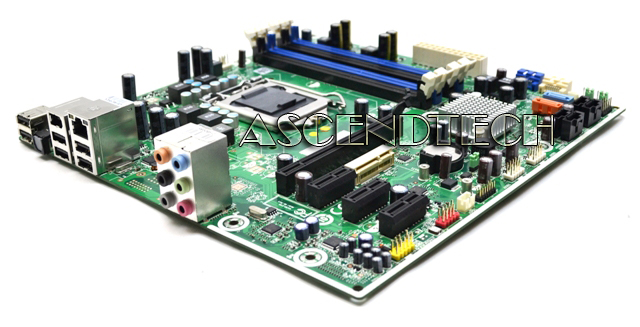

HP 466799-001 Indio-UL8E Motherboard

HP MS-7613 Indio-UL8E 466799-001 Motherboard. HP meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your motherboard manufacturer. Please order, based on the part number only!

HP Part Number: 466799-001
Manufacturer’s Model Number: MS-7613 Indio-UL8E
Compatible Models:
HP Paviion Elite E9270T CTO DESKTOP REF
HP Paviion Elite HPE-070kr PC
HP Pavilion Elite HPE-001es PC
HP Pavilion Elite HPE-002es PC
HP Pavilion Elite HPE-010be PC
HP Pavilion Elite HPE-010ch PC
HP Pavilion Elite HPE-010de PC
HP Pavilion Elite HPE-010fr PC
HP Pavilion Elite HPE-010pl PC
HP Pavilion Elite HPE-010ru PC
HP Pavilion Elite HPE-010sc PC
HP Pavilion Elite HPE-015be PC
HP Pavilion Elite HPE-015fr PC
HP Pavilion Elite HPE-020be PC
HP Pavilion Elite HPE-020fr PC
HP Pavilion Elite HPE-020it PC
HP Pavilion Elite HPE-020nl PC
HP Pavilion Elite HPE-020pl PC
HP Pavilion Elite HPE-025be PC
HP Pavilion Elite HPE-025ch PC
HP Pavilion Elite HPE-025sc PC
HP Pavilion Elite HPE-026ch PC
HP Pavilion Elite HPE-026sc PC
HP Pavilion Elite HPE-027ch PC
HP Pavilion Elite HPE-028ch PC
HP Pavilion Elite HPE-029de PC
HP Pavilion Elite HPE-030be PC
HP Pavilion Elite HPE-030ch PC
HP Pavilion Elite HPE-030de PC
HP Pavilion Elite HPE-030fr PC
HP Pavilion Elite HPE-030nl PC
HP Pavilion Elite HPE-030pl PC
HP Pavilion Elite HPE-030sc PC
HP Pavilion Elite HPE-035be PC
HP Pavilion Elite HPE-035cn PC
HP Pavilion Elite HPE-035sc PC
HP Pavilion Elite HPE-039de PC
HP Pavilion Elite HPE-050d PC
HP Pavilion Elite HPE-050kr PC
HP Pavilion Elite HPE-053uk PC
HP Pavilion Elite HPE-055cn PC
HP Pavilion Elite HPE-055kr PC
HP Pavilion Elite HPE-063uk PC
HP Pavilion Elite HPE-068hk PC
HP Pavilion Elite HPE-070a PC
HP Pavilion Elite HPE-070d PC
HP Pavilion Elite HPE-080a PC
HP Pavilion Elite HPE-083uk PC
HP Pavilion Elite HPE-088d PC
HP Pavilion Elite HPE-088hk PC
HP Pavilion Elite HPE-088tw PC
HP Pavilion Elite HPE-090a PC
HP Pavilion Elite e9250t CTO Desktop PC
HP Pavilion Elite e9260f Desktop PC
HP Pavilion Elite e9262f Desktop PC
HP Pavilion Elite e9270f Desktop PC
HP Pavilion Elite e9270t CTO Desktop PC
HP Pavilion Elite e9280jp PC
HP Pavilion Slimline s5295kr PC
HP Pavilion p6212es PC
HP Pavilion p6227uk PC
HP Pavilion p6228de PC
HP Pavilion p6230it PC
HP Pavilion p6235uk PC
HP Pavilion p6239at PC
HP Pavilion p6243fr PC
HP Pavilion p6249at PC
HP Pavilion p6249de PC
HP Pavilion p6250nl PC
HP Pavilion p6260nl PC
HP Pavilion p6280la Desktop PC
HP Pavilion p6290pt PC
HP Pavilion p6298d PC
HP Pavilion slimline s5250jp PC
HP Paviion Elite CTO E9250T DESKTOP REF




Specifications:

CPU
Socket type: LGA1156

Motherboard supports the following processor upgrades:
Intel Corei7 (Lynnfield)
Intel Corei5 (Lynnfield)

Front Side Bus Speed
2.5 GT/s DMI

Chipset
Intel P55 Express

Memory
4×240pin DDR3 DIMM Sockets
Supports Dual channel memory architecture
PC3-10600 (DDR3-1333)
PC3-8500 (DDR3-1066)
Non-ECC memory only, unbuffered
Supports up to 16 GB on 64-bit PCs
Supports up to 4 GB* on 32-bit PCs

Expansion Slots
3 x PCI Express x1
1 x PCI x16
1 x PCI Express x1 minicard socket

LAN
Interface: Integrated into motherboard
Technology: Realtek RTL8111DL
Data transfer speeds: up to 10/100 Mb/s
Transmission standards: 10-Base-T Ethernet

Video
Motherboard does not contain onboard graphics hardware to display video. A video card must be installed.

Audio
Audio CODEC: ALC888S
6-channel high-definition audio

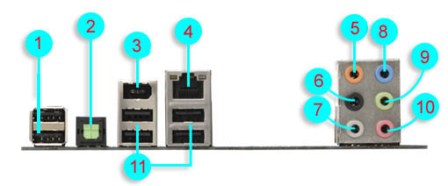

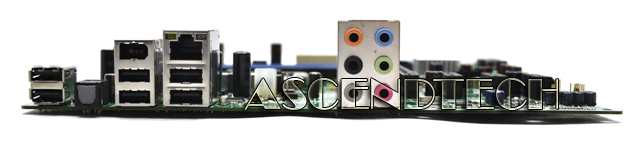

Back I/O Ports



1 - USB 2.0: 2
2 - Optical SPDIF-Out
3 - IEEE 1394 (FireWire)
4 - RJ-45 Network (LAN)
5 - Audio: Center/Subwoofer (yellow orange)
6 - Audio: Rear Speaker Out (black)
7 - Audio: Side Speaker Out (gray)
8 - Audio: Line In (light blue)
9 - Audio: Line Out (lime)
10 - Audio: Microphone (pink)
11 - USB 2.0: 4

Internal Connectors
1 x CPU fan connector
4 x DIMM sockets
1 x 24-pin ATX power connector
1 x 4-pin ATX power connector
4 x SATA connectors
6 x USB headers, supporting 8 USB connections
WLAN card LED connector
Clear CMOS Jumper
Clear BIOS Password Jumper
Front panel connector
SPDIF out connector
ROM Recovery
1394 connector
Speaker
Front panel audio connector
1 x PCI-E x16 slot
3 x PCI-E x 1 slots
1 x mini-PCI Express 2.0 x1 slot
1 x PC fan connector

Form Factor
Micro-ATX: 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)
