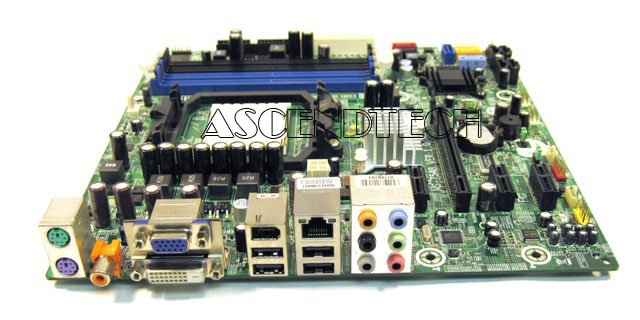

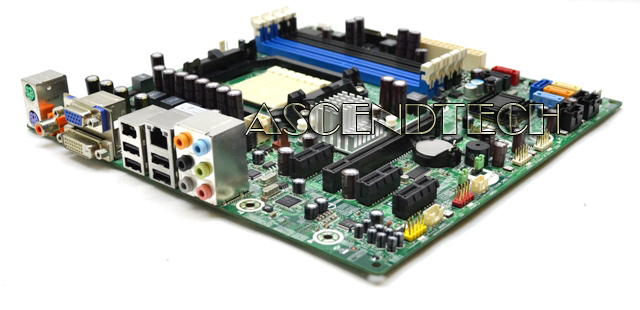

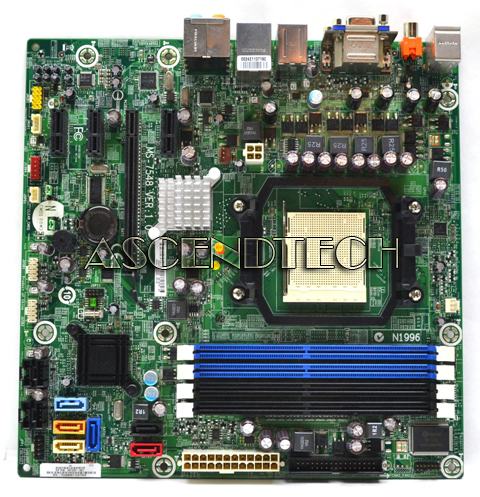

HP 497257-001 MS-7548 Aspen-GL8E Board

HP MS-7548 (Aspen) 497257-001 Motherboard. HP meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

HP Part Number: 497257-001
Compatible Part Numbers: MS-7548 (Aspen)

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!



Specifications:

CPU
Socket type: AM2+
TDP: 125 watt

Motherboard supports the following processor upgrades:
Athlon X2 BE-2xxx (Brisbane) (AM2)
Athlon 64 X2 up to 6000+ with Dual Core (Brisbane) technology (AM2)
Athlon 64 X2 up to 6000+ with Dual Core (Winsor) technology (AM2)
AMD Phenom Triple-Core (Toliman) up to 8xxx series (AM2+)
AMD Phenom Quad-Core (Agena) up to 9950, (AM2+)

Front Side Bus Speed
Up to 5200MT/s (5.2 GT/s) when using compatible AM2+ or AM3 processor

Chipset
AMD 780G

Memory
4×240pin DDR3 DIMM Sockets
Dual Channel memory architecture
PC2-6400 (800 MHz)
PC2-5300 (667 MHz)
Non-ECC memory only, unbuffered
Supports 4GB DDR2 DIMMs
Supports up to 16 GB on 64-bit PCs
Supports up to 4 GB* on 32-bit PCs

Expansion Slots
1 x PCI Express x16
3 x PCI Express x1

LAN
Interface: Integrated into motherboard
Technology: Realtek RTL8111C
Data transfer speeds: up to 10/100 Mb/s
Transmission standards: 10-Base-T Ethernet

Video
Integrated graphics using ATI Radeon™ HD 3200 (Supports DirectX® 10)
Supports concurrent use of dual displays connected to onboard DVI-D and VGA connectors.
Also supports PCI Express x16 graphics cards as independent graphics adapters.*

Audio
Audio CODEC: Realtek ALC888S
High Definition 8 channel audio
Supports one S/PDIF digital connection

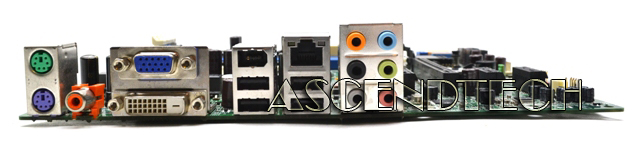

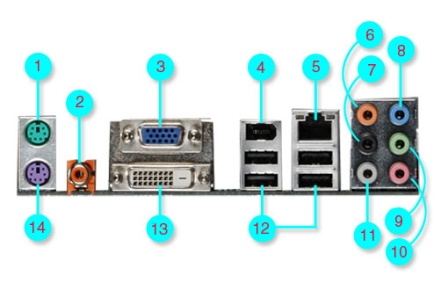

Back I/O Ports



1 - PS/2 mouse (green)
2 - S/PDIF coaxial out
3 - Video Graphics Adapter p
4 - IEEE 1394 (FireWire)
5 - RJ-45 Network (LAN)
6 - Audio: Center/Subwoofer (yellow orange)
7 - Audio: Rear Speaker Out (black)
8 - Audio: Line In (light blue)
9 - Audio: Line Out (lime)
10 - Audio: Microphone (pink)
11 - Audio: Side Speaker Out (gray)
12 - USB 2.0: 4
13 - DVI
14 - PS/2 keyboard (purple)

Internal Connectors

1 x 24-pin ATX power connector
1 x 4-pin ATX power connector
6 x SATA connectors
1 x floppy drive connector
2 x 12V fan connectors for CPU fan and chassis fan
1 x 9-pin header for power button, reset button, power LED, and HDD LED
1 x S/PDIF digital audio output header
1 x front line input connector
1 x 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
6 USB 2.0 headers
1 x 1394a header
1 x SPI (ROM programming) connector
1 x jumper for resetting BIOS settings
1 x jumper to disable BIOS password checking

Form Factor
Micro-ATX: 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)
