HP 5187-8294 Puffer2 UL8E Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

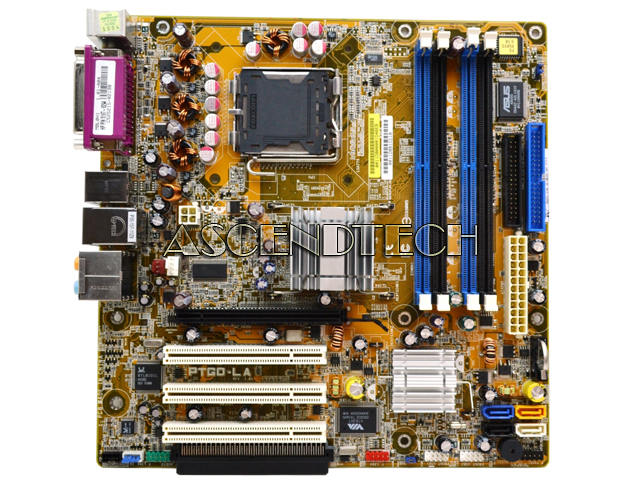

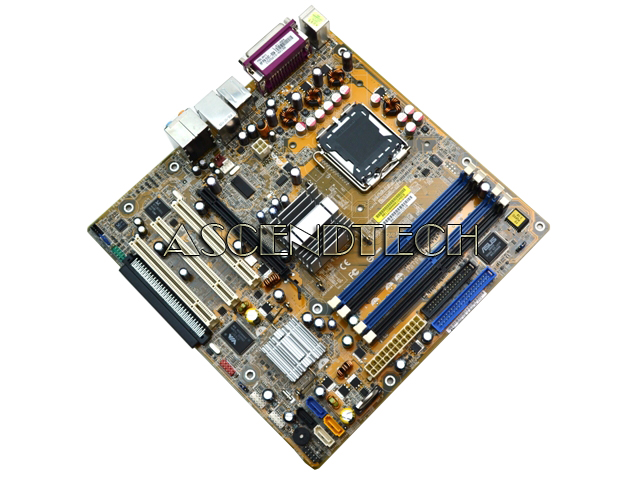

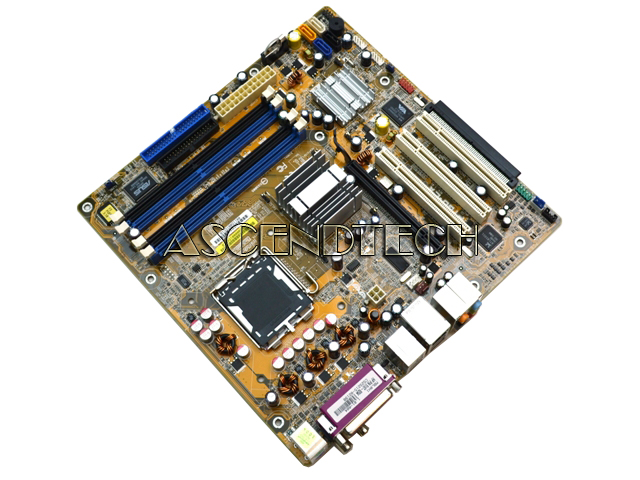

Hp 5187-8294 Puffer2 Ul8e Motherboard. Model: Ek392-69001 Ptgd-La
  Enlarge
Hp 5187-8294 Puffer2 Ul8e Motherboard. Model: Ek392-69001 Ptgd-La
Hp 5187-8294 Puffer2 Ul8e Motherboard. Model: Ek392-69001 Ptgd-La
Hp 5187-8294 Puffer2 Ul8e Motherboard. Model: Ek392-69001 Ptgd-La
Hp 5187-8294 Puffer2 Ul8e Motherboard. Model: Ek392-69001 Ptgd-La
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBHP51878294DMB
Brand Hp / Compaq - Hewlett-Packard
Model EK392-69001 PTGD-LA
Category Intel Lga775 Motherboards

Description

HP Pavilion Presario Series PTGD-LA 5187-8294 Intel Micro-ATX Desktop Motherboard. HP meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

HP Part Number: 5187-8294
Compatible Part Numbers: EK392-69001
HP/Compaq Name: Puffer2-UL8E
Asus Model Number: PTGD-LA

Please Note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!





Compatible Models:
HP Pavilion A1271L
HP Pavilion A1278D
HP Pavilion A5280D
HP Pavilion A1270D
HP Pavilion A1229KR
HP Pavilion A1260A
HP Pavilion A1240A
HP Pavilion A1288D
HP Pavilion V1342KR
HP Pavilion W5240BE
HP Pavilion W5260D
HP Pavilion W5263CL
HP Pavilion W5267CL
HP Pavilion W5268CL
HP Pavilion W5270L
HP Pavilion W5277D
HP Pavilion SR1650AP
HP Pavilion SR1650KR
HP Pavilion Media Center M7070N
HP Pavilion Media Center M7200KR
HP Pavilion Media Center M7250LA
HP Pavilion Media Center M7268HK





Specifications:

CPU/Processor

Socket: LGA775
Supports processor up to 3.6 GHz
Supports Intel Pentium 4 HT processors

Front-side Bus (FSB)

800 MHz

Chipset

Northbridge: i915P graphics and memory controller hub
Southbridge: ICH6 Intel I/O Controller Hub 6

BIOS Features

4Mb FWH EEPROM
HP BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus

Form Factor

Micro-ATX form factor, 9.6 in x 9.6 in

Memory

Four 240-pin DDR2 DIMM sockets
Supports PC2 3200 (400 MHz) and PC2 4200 (533 MHz) DDR2-DIMMS
Maximum HP/Compaq approved memory is 4 GB*

NOTE: *Actual available memory may be less

Expansion Slots

One PCI Express x16 graphics
Three PCI
No AGP slot

Video Graphics

External (no integrated graphics)

Serial ATA

4 SATA connectors
Each connector supports 1 serial ATA-150 disk drive
Hot Swap function

Onboard Audio

Realtek ALC880 8-channel High Definition Audio CODEC

Onboard LAN

Realtek RTL8101L
10/100 Mbps Fast Ethernet controller

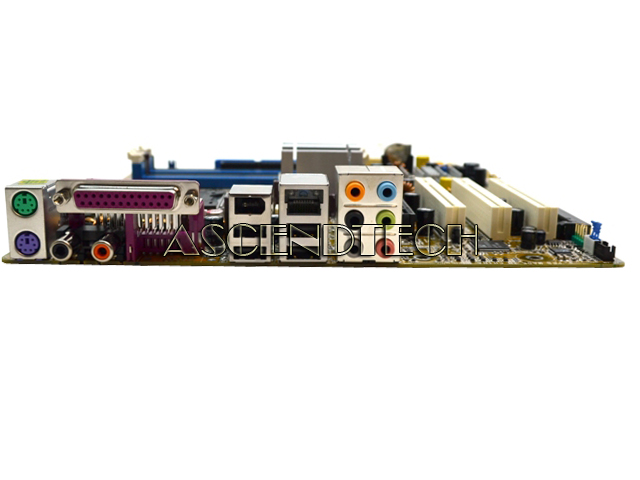

Back panel I/O

One PS/2 mouse port
One PS/2 keyboard port
One Parallel
One IEEE 1394
One RJ45 networking port
Six audio ports support 8-channel audio configuration
Four USB (2.0)
One S/PDIF in
One S/PDIF out

Internal Connectors

One Floppy connector
One IDE connector
One 24-pin ATX power connector
One 4-pin ATX 12 V power connector
Four Serial ATA connectors
One IEEE 1394a connector
Two USB 2.0 connectors
One CPU fan connector
One System fan connector
Two Internal audio connectors
One Front headphone connector
One System panel connector
