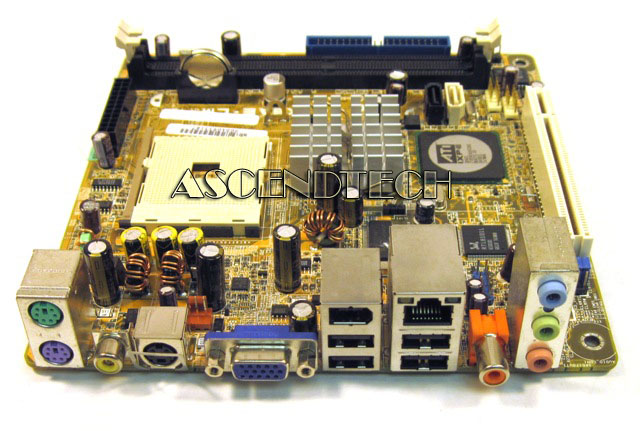

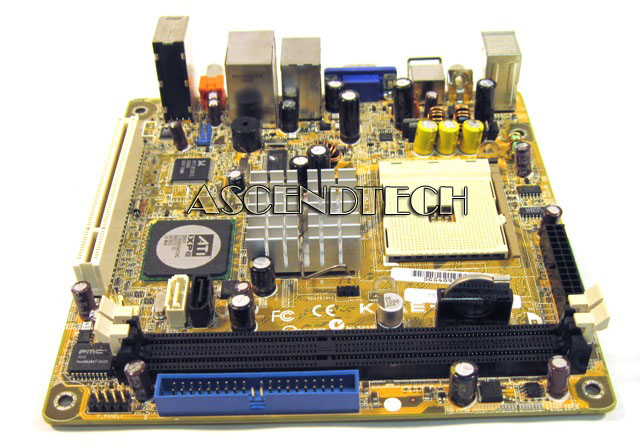

HP 5188-3228 K8AE-LM (Opal) Motherboard

HP 5188-3228 Motherboard K8AE-LM (Opal) Motherboard. HP meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Manufacturer: Asus
Part Number:  K8AE-LM (Opal)
HP Part Number: 5188-3228  Opal-GL6E

Specifications:

Processor:

Socket: 754
Supports the following processors:
Turion 64 mobile
Mobile Sempron

Chipset:
ATI Radeon XPress 200
Southbridge: IXP400 (southbridge also called SB400)

BIOS features:
Award BIOS

Form factor:
Mini ATX size form factor, 6.7 in x 6.7 in

Memory:
Single-channel memory architecture
2 DDR1 DIMM (184-pin) sockets
PC3200/PC2700 DDR1 DIMMs, ingle-sided only
Non-ECC memory only
Maximum memory: 2 x 512 MB DDR1 DIMMs, 1.0 GB total, unbuffered

Expansion slots:
1 x PCI

Video graphics:
Integrated

Onboard audio or audio card:
Audio codec ALC658
5.1 channel support

Onboard LAN:
Realtek RTL8100 10/100 Mbps

Back panel I/O:

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x Composite video
1 x  S-video
1 x VGA port
4 x USB (2.0)
1 x IEEE 1394
1 x RJ-45 networking port (LAN)
1 x  SPDIF digital coaxial out

Audio ports:
line in (light blue)
line out (lime)
microphone (pink)

Internal connectors:

1 x  ATX 2 x 12-pin power connector
1 x PATA connector
2 x SATA connectors
1 x floppy drive connector
1 x CPU fan connector
1 x 9-pin header for power button, reset button, power LED, and HDD LED
1 x CD-Audio In connector
Audio headers
2 x USB connectors supporting four additional USB 2.0 ports
1 x IEEE 1394 connector
