HP 5188-5067 A8N-LA Nagami Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

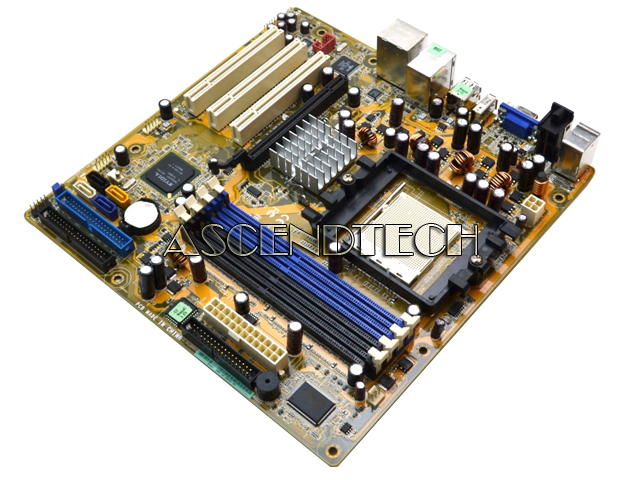

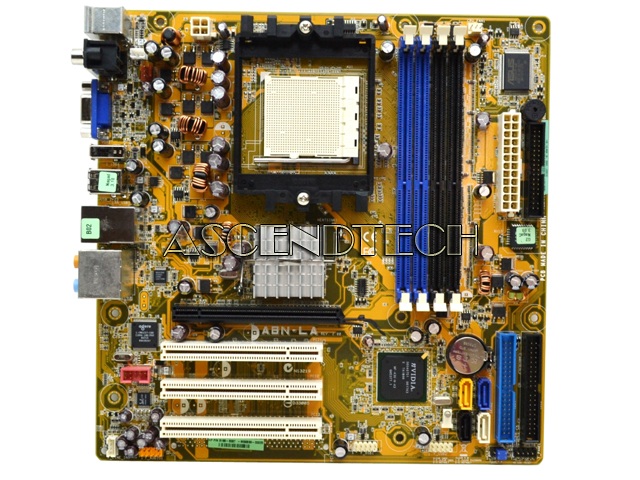

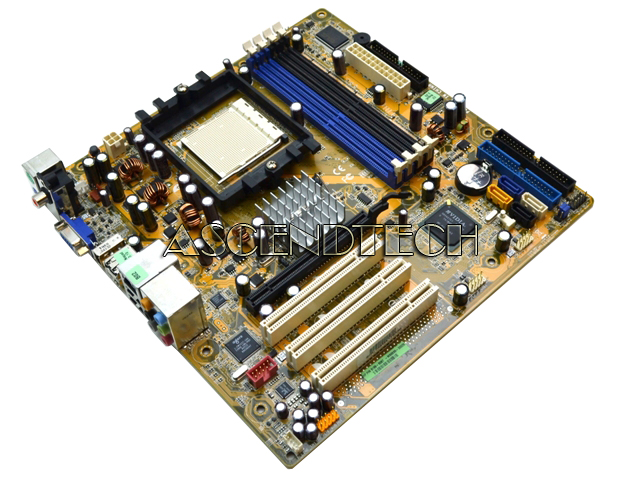

Hp 5188-5067 A8n-La Nagami Motherboard. Model: A8n-La Nagami-Gl8e
  Enlarge
Hp 5188-5067 A8n-La Nagami Motherboard. Model: A8n-La Nagami-Gl8e
Hp 5188-5067 A8n-La Nagami Motherboard. Model: A8n-La Nagami-Gl8e
Hp 5188-5067 A8n-La Nagami Motherboard. Model: A8n-La Nagami-Gl8e
Hp 5188-5067 A8n-La Nagami Motherboard. Model: A8n-La Nagami-Gl8e
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBHP51885067DMB
Brand Asus / Asustek Computer
Model A8N-LA Nagami-GL8E
Category Amd Socket 939 Motherboard
Condition Like New Grade A

Description

HP Pavilion Presario Series A8N-LA 5188-5067 AMD Socket 939 Micro ATX Desktop Motherboard. HP meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

HP Part Number: 5188-5067
HP/Compaq Name: Nagami-GL8E
Asus Model Number: A8N-LA

Please Note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!





Compatible Models:
HP Presario SR1917CL
HP Presario SR1915LS
HP Presario SR1902LS
HP Presario SR1905LA
HP Presario SR1918LS
HP Presario SR1924NX
HP Presario SR1930Z
HP Presario SR1934NX
HP Presario SR1950NX
HP Pavilion W5510LA
HP Pavilion A1573CN
HP Pavilion A1530E
HP Pavilion A1547C
HP Pavilion A1528X
HP Pavilion A1511CL
HP Pavilion A1513CN
HP Pavilion A1512CL
HP Pavilion A1400E
HP Pavilion A1510N
HP Pavilion A1510CN
HP Pavilion A1503CN





Specifications:

CPU/Processor

Socket: 939
Supports the following processors:

AMD Athlon 64 X2 up to 4800+

AMD Athlon 64

AMD Sempron

Front-side Bus (FSB)

2000MT/s or 1600MT/s (processor dependent)

Chipset

GeForce 6150 LE

Southbridge: nForce 430 (southbridge also called MCP51)

BIOS Features

Award BIOS

Form Factor

Micro ATX size form factor, 9.6 in x 9.6 in

Memory

Dual-channel memory architecture
4 DDR1 DIMM (184-pin) sockets
PC3200/PC2700 DDR1 DIMMs
Non-ECC memory only
Maximum memory: 4 x 1 GB DDR1 DIMMs, 4.0 GB total

Expansion Slots

Three PCI
One PCI Express x16

Video Graphics

Integrated
Supports PCI Express x16 graphics cards

Onboard Audio or Audio Card

Built-in Azalia 8 channel audio
Realtek ALC883 8-channel High Definition Audio CODEC

Onboard LAN

Realtek RTL8201CL

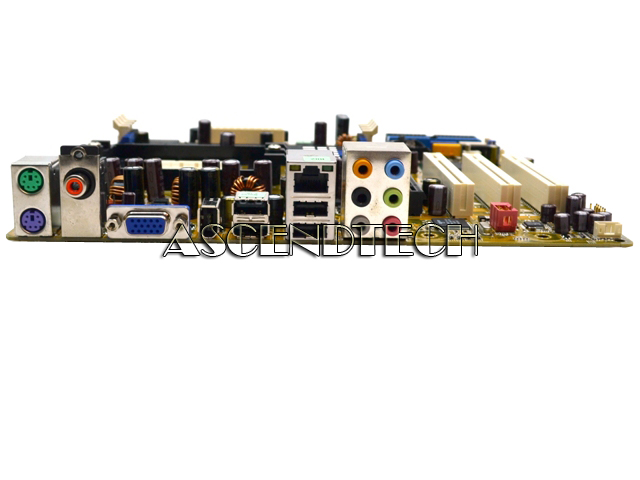

Back panel I/O

PS/2 keyboard (purple)
PS/2 mouse (green)
One SPDIF out port
One VGA port
Four USB (2.0)
One IEEE 1394a
One RJ-45 networking port (LAN)
Audio ports:

line in (light blue)

line out (lime)

microphone (pink)

side speaker out (gray)

rear speaker out (black)

center/subwoofer (yellow orange)

Internal Connectors

One 24-pin ATX power connector
One 4-pin ATX power connector
One PATA connector
Two SATA connectors
One floppy drive connector
One CPU fan connector
One PC fan connector
One 9-pin header for power button, reset button, power LED, and HDD LED
One CD-Audio In connector
Audio headers
Two USB connectors supporting four additional USB 2.0 ports
One IEEE 1394 connector
