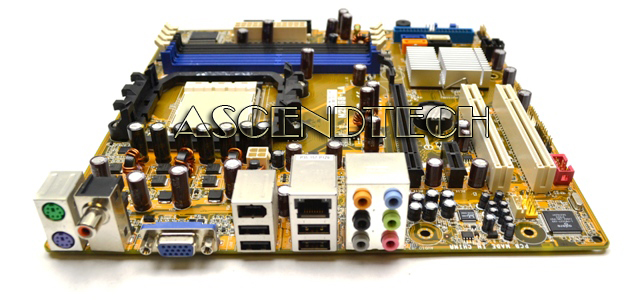

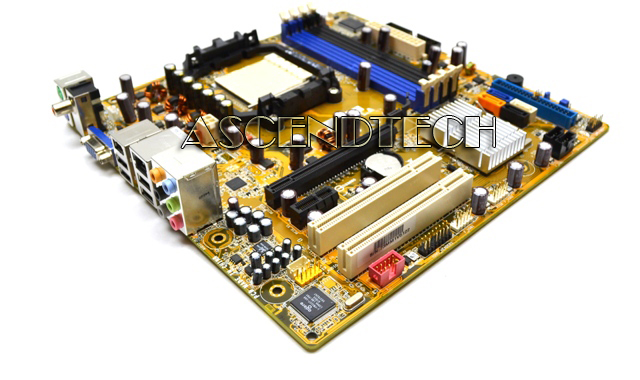

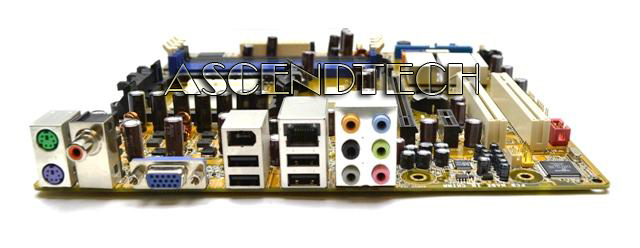

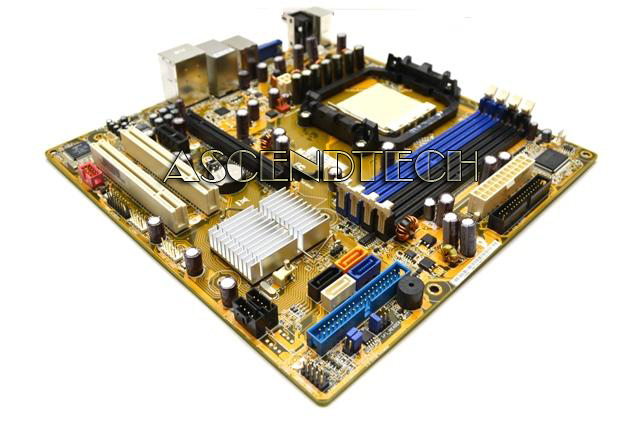

HP 5188-7684 Narra-GL8E Motherboard

HP Pavilion Series 5188-7684 Desktop Motherboard.

HP Part Number: 5188-7684
Compatible Part Numbers: M2N68-LA Narra-GL8E

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your motherboard manufacturer. Please order, based on the part number only!





Specifications:

CPU
Socket type: AM2
Only Socket AM3 processors are supported with this motherboard.

Motherboard supports the following processor upgrades:
Athlon 64 X2 with Dual Core technology up to 5600+ (up to 89 watt)
Athlon 64 less than 4000+
Sempron less than 4000+

Front Side Bus Speed
2000MT/s (2.0 GT/s)

Chipset
NVIDIA GeForce 6150SE nForce 430

Memory
4×240pin DDR3 DIMM Sockets
Supports Dual channel memory architecture
Supports PC-4200 (533 MHz), PC2-5300 (667 MHz), and PC-6400 (800 MHz) DDR2 DIMMs
Non-ECC memory only, unbuffered
supports 2GB DDR2 DIMMs
Supports up to 8 GB on 64 bit PCs
Supports up to 4 GB* on 32 bit PCs

Expansion Slots
1 x PCI Express x1
1 x PCI x16
2 x PCI

LAN
Interface: Integrated into motherboard
Technology: Realtek RTL8201N
Data transfer speeds: up to 10/100 Mb/s
Transmission standards: 10-Base-T Ethernet

Video
Integrated graphics using nVidia GeForce
Up to 256MB (with 512MB or more system memory)
Also supports PCI Express x16 graphics cards*

Audio
8 channel high-definition audio
Audio CODEC: ALC888

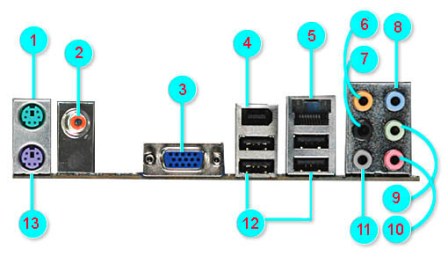

Back I/O Ports



1 - PS/2 mouse (green)
2 - SPDIF coaxial out
3 - Video Graphics Adapter
4 - IEEE 1394 (FireWire)
5 - RJ-45 Network (LAN)
6 - Audio: Center/Subwoofer (yellow orange)
7 - Audio: Rear Speaker Out (black)
8 - Audio: Line In (light blue)
9 - Audio: Line Out (lime)
10 - Audio: Microphone (pink)
11 - Audio: Side Speaker Out (gray)
12 - USB 2.0: 4
13 - PS/2 keyboard (purple)

Internal Connectors
1 x 24-pin ATX power connector
1 x 4-pin ATX power connector
1 x PATA connector
2 x SATA connectors
1 x floppy drive connector
Two 12v fan connectors for CPU fan and PC fan
1 x 9-pin header for power button, reset button, power LED, and HDD LED
1 x SPDIF digital audio output header
1 x front line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)
1 x 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
4 x USB headers supporting 6 additional USB 2.0 ports or devices
1 x 1394a header

Form Factor
Micro-ATX: 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)

Compatible Models: HP Pavilion A6000N Desktop, Pavilion A6009N Desktop, Pavilion A6010CH Desktop, Pavilion A6010DE Desktop, Pavilion A6010E Desktop, Pavilion A6010SC Desktop, Pavilion A6010UK Desktop, Pavilion A6011SC Desktop, Pavilion A6018CH Desktop, Pavilion A6023SC Desktop, Pavilion A6025SC Desktop, Pavilion A6026SC Desktop, Pavilion A6027UK Desktop, Pavilion A6030SC Desktop, Pavilion A6031SC Desktop, Pavilion A6032SC Desktop, Pavilion A6033DE Desktop, Pavilion A6035SE Desktop, Pavilion A6042DE Desktop, Pavilion A6045SE Desktop, Pavilion A6046DE Desktop, Pavilion A6050DE Desktop, Pavilion A6050DK Desktop, Pavilion A6050E Desktop, Pavilion A6099DE Desktop, Pavilion Media Center M8000E, Pavilion Media Center M8000N, Pavilion Media Center M8013W, Pavilion Media Center M8034N, Pavilion Media Center M8035CH, Pavilion Media Center M8040CH, Pavilion Media Center M8044SC, Pavilion Media Center M8046SC, Pavilion Media Center M8050DE, Pavilion Media Center M8055SC, Pavilion Media Center M8056SC, Pavilion Media Center M8070DK, Pavilion Media Center M8080DE, Pavilion Media Center M8080SC, Pavilion Media Center M8085SE, Pavilion Media Center M8095SE, Pavilion T3810SC Desktop, Pavilion V5030JP Desktop, Pavilion V7016KR Desktop, Pavilion V7036KR Desktop, Presario SR5019UK Desktop Series
