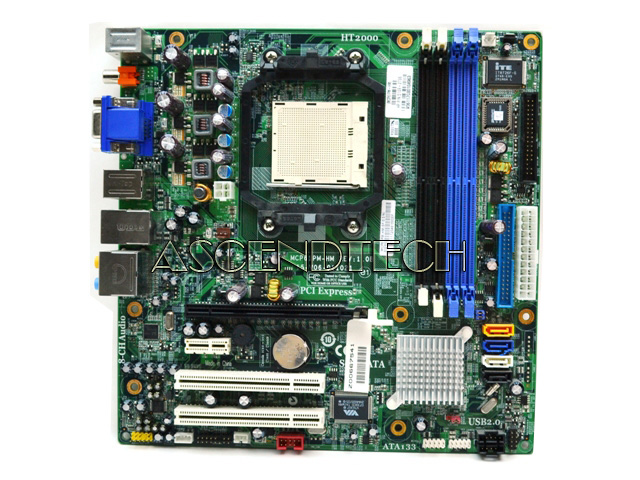

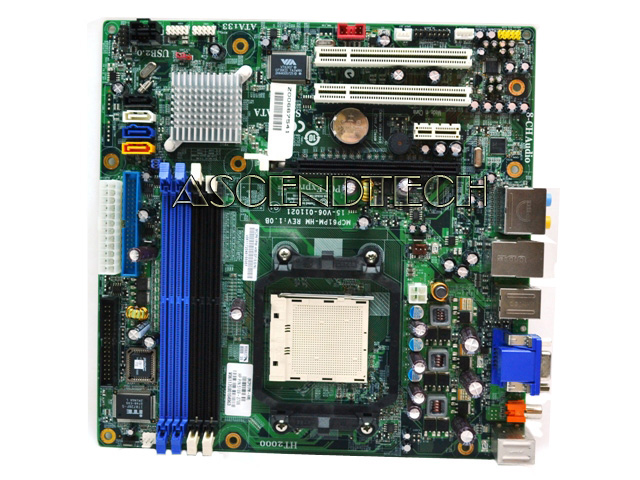

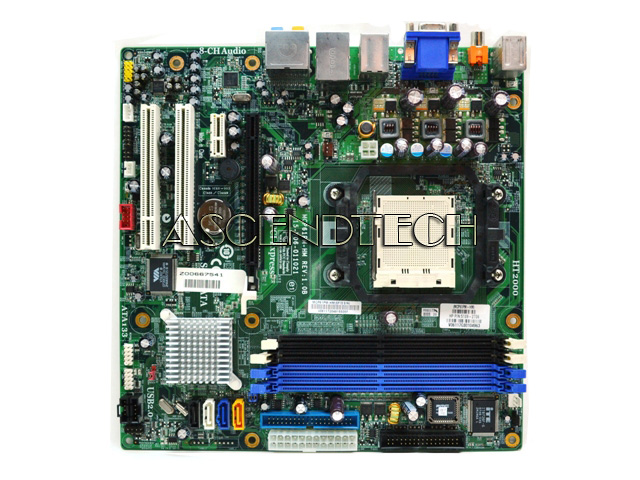

5189-0929 MCP61PM-HM | Hp 5189-0929 Nettle2-Gl8e Motherboard

HP Compaq MCP61PM-HM 5189-0929 Nettle2 Nettle2-GL8E AMD Desktop Motherboard.

HP Part Number: 5189-0929 Nettle2-GL8E
Manufacturer’s Model Number: MCP61PM-HM
Compatible Part Numbers: 5188-8535 5189-2786

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!

Specifications:

Motherboard description	Motherboard manufacturer's name: ECS MCP61PM-HM HP/Compaq name: Nettle2-GL8E 5188-8535 5189-0929 5189-2786
CPU/Processor	Socket: AM2 Supports the following processors: Athlon 64 X2 with Dual Core technology up to 5600+ (up to 89 watt) Athlon 64 less than 4000+ Sempron less than 3800+
Front-side bus (FSB)	2000MT/s (2.0 GT/s)
Chipset	NVIDIA GeForce 6150SE nForce 430
BIOS features	System BIOS core brand: Award Keyboard combination to used to enter BIOS: F10
Form factor	Micro-ATX: 9.6 in X 9.6 in
Memory	Dual channel memory architecture Four 240-pin DDR2 DIMM sockets Supported DIMM types: PC2-4200 (533 MHz) PC2-5300 (667 MHz) PC2-6400 (800 MHz) Non-ECC memory only, unbuffered Supports 2GB DDR2 DIMMs Supports up to 8 GB on 64 bit PCs Supports up to 4 GB* on 32 bit PCs
Expansion slots	Two PCI One PCI Express x16 graphics (for a graphics card) One PCI Express x1 (for cards such as network, sound, tv-tuner)
Video graphics	Integrated graphics using nVidia GeForce 6150SE Uses up to 256MB of PC memory (with 512MB or more total PC memory) Also supports PCI Express x16 graphics cards
Parallel ATA	One 40-pin UltraDMA 100/66/33 connector Supports PIO, multi-word DMA modes Supports two PATA disk drives on one PATA ribbon cable (two drives total)
Serial ATA	Four SATA connectors: SATA1 = Black SATA2 = White SATA3 = Blue SATA4 = Yellow Supports 1 SATA-150 or SATA-300 disk drive on each SATA connector Speed up to 1.5Gb/sec or 3.0Gb/sec, complying with SATA 1.0 and SATA 2.0 specifications
RAID	Some Nettle2 models ship with RAID (model dependent) nVidia's onboard RAID solution is called nVidia MediaShield Storage RAID modes supported*: RAID 0 RAID 1
Onboard audio	8 channel high-definition audio Audio CODEC: ALC888S
Onboard LAN	PCI Realtek RTL8201N 10/100Mbps
Onboard USB	USB 2.0 Ten ports total Four connectors on back panel Four headers on motherboard support 6 additional ports/devices
Onboard 1394	Type: IEEE 1394a 400Mb/s VIA VT6307 controller chip Two ports total One port on back panel One header on motherboard supporting one additional port/device
Back panel I/0	One PS/2 mouse port (green) One PS/2 keyboard port (purple) One Coaxial SPDIF out port One VGA port Four USB 2.0 One IEEE 1394a One RJ-45 networking port Six audio ports support 8-channel audio: Line-in (light blue) Microphone-in (pink) Line-out (lime) Center/Subwoofer-out (yellow-orange) Side speaker-out (gray) Rear speaker-out (black)
Internal connectors	One 24-pin ATX power connector One 4-pin ATX power connector One PATA connector Four SATA connectors One floppy drive connector Two 12v fan connectors for CPU fan and PC fan One 9-pin header for power button, reset button, power LED, and HDD LED One SPDIF digital audio output header One front line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module) One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module) Four USB headers supporting 6 additional USB 2.0 ports or devices One 1394a header One Intel high-definition Audio/Modem Link (not used by HP) One jumper for resetting BIOS settings One jumper to disable BIOS password checking

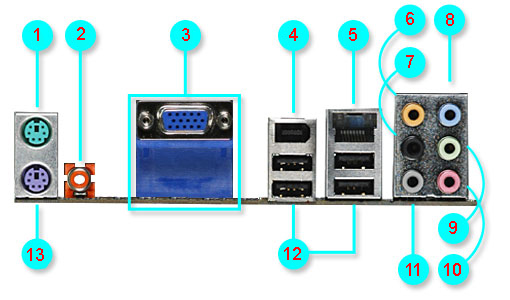

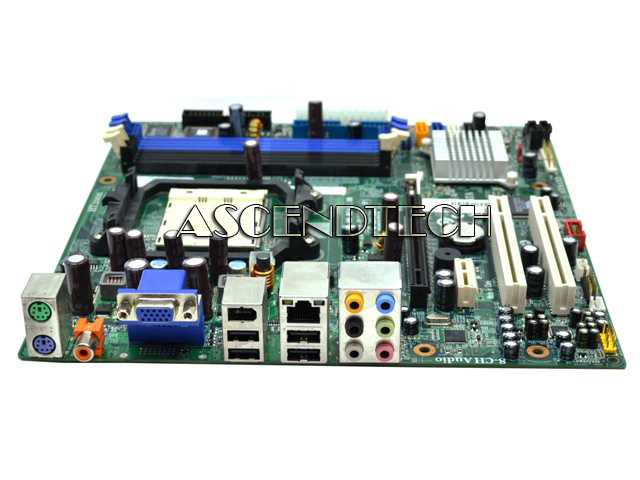

1 - PS/2 mouse port (green). This port is for a PS/2 mouse.
2 - SPDIF coaxial out port. This port connects to external audio output devices with coaxial cable connectors.
3 - Video Graphics Adapter port. This port is for a VGA monitor or other VGA-compatible devices. NOTE: The blue part under the VGA port allows the VGA port to sit higher on the back I/O.
4 - IEEE 1394 port. This 9-pin IEEE 1394 port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices.
5 - LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through a network hub.
6 - Center/Subwoofer port (yellow orange). This port connects the center/subwoofer speakers.
7 - Rear Speaker Out port (black). This port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration.
8 - Line In port (light blue). This port connects a tape, CD, DVD player, or other audio sources.
9 - Line Out port (lime). This port connects to headphones or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speakers Out.
10 - Microphone port (pink). This port connects a microphone.
11 - Side Speaker Out port (gray). This port connects to the side speakers in an 8-channel audio configuration.
12 - USB 2.0 ports 1, 2, 3, and 4. These four 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.
13 - PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

Compatible Models: HP Pavilion a6105fr Desktop Pavilion a6107 Desktop Pavilion a6110 Desktop Pavilion a6112 Desktop Pavilion a6113 Desktop Pavilion a6114x Desktop Pavilion a6115 Desktop Pavilion a6115 Desktop Pavilion a6120 Desktop Pavilion a6120 Desktop Pavilion a6120 Desktop Pavilion a6123w Desktop Pavilion a6130n Desktop Pavilion a6130 Desktop Pavilion a6135 Desktop Pavilion a6135 Desktop Pavilion a6140 Desktop Pavilion a6140 Desktop Pavilion a6142n Desktop Pavilion a6145 Desktop Pavilion a6146 Desktop Pavilion a6155 Desktop Pavilion a6167c Desktop Pavilion a6167 Desktop Pavilion a6178l Desktop Pavilion a6185 Desktop Pavilion a6190d Desktop Pavilion a6195 Desktop Pavilion a6200 Desktop Pavilion a6200n Desktop Pavilion a6202 Desktop Pavilion a6202 Desktop Pavilion a6203 Desktop Pavilion a6204 Desktop Pavilion a6205 Desktop Pavilion a6205 Desktop Pavilion a6206 Desktop Pavilion a6210 Desktop Pavilion a6210 Desktop Pavilion a6210 Desktop Pavilion a6210 Desktop Pavilion a6210 Desktop Pavilion a6210 Desktop Pavilion a6211 Desktop Pavilion a6211 Desktop Pavilion a6212 Desktop Pavilion a6213 Desktop Pavilion a6215 Desktop Pavilion a6216r Desktop Pavilion a6217c Desktop Pavilion a6219 Desktop Pavilion a6220 Desktop Pavilion a6220 Desktop Pavilion a6222 Desktop Pavilion a6222 Desktop Pavilion a6223 Desktop Pavilion a6223 Desktop Pavilion a6225b Desktop Pavilion a6225 Desktop Pavilion a6225 Desktop Pavilion a6227 Desktop Pavilion A6229 Desktop Pavilion a6235 Desktop Pavilion a6235x Desktop Pavilion a6240 Desktop Pavilion a6240 Desktop Pavilion a6240 Desktop Pavilion a6242n Desktop Pavilion a6245 Desktop Pavilion a6248x Desktop Pavilion a6250 Desktop Pavilion a6267 Desktop Pavilion a6278 Desktop Pavilion a6290 Desktop Pavilion a6305 Desktop Pavilion a6311a Desktop Pavilion a6345 Desktop Pavilion Elite m9020 Desktop Pavilion Elite m9025 Desktop Pavilion Elite m9026 Desktop Pavilion Elite m9050 Desktop Pavilion Elite m9065 Desktop Pavilion Elite m9070 Desktop Pavilion Elite m9070 Desktop Pavilion Media Center M8100N Pavilion Media Center M8140 Pavilion Media Center M8147 Pavilion Media Center M8150 Pavilion Media Center M8150 Pavilion Media Center M8165 Pavilion Media Center M8170 Pavilion Media Center M8170 Pavilion Media Center M8195 Pavilion Media Center M8200 Pavilion Media Center M8226X Pavilion Media Center M8240 Pavilion Media Center M8247C Pavilion v7128hk Desktop Pavilion v7168hk Desktop Pavilion v7228hk Desktop Presario SR5105FR Desktop Presario SR5107ES Desktop Presario SR5110FR Desktop Presario SR5112CF Desktop Presario SR5115CF Desktop Presario SR5120AN Desktop Presario SR5123WM Desktop Presario SR5127CL Desktop Presario SR5140AN Desktop Presario SR5147ES Desktop Presario SR5160AN Desktop Presario SR5180AN Desktop Presario SR5181CF Desktop Presario SR5198CF Desktop Presario SR5204FR Desktop Presario SR5204IT Desktop Presario SR5205FR Desktop Presario SR5207ES Desktop Presario SR5209UK Desktop Presario SR5210ES Desktop Presario SR5211ES Desktop Presario SR5212CF Desktop Presario SR5215LA Desktop Presario SR5219UK Desktop Presario SR5220AN Desktop Presario SR5240AN Desktop Presario SR5245ES Desktop Presario SR5260AN Desktop Presario SR5262NX Desktop Presario SR5265NL Desktop Presario SR5280AN Desktop Presario SR5286CF Desktop Presario SR5292CF Desktop Presario SR5305ES Desktop
