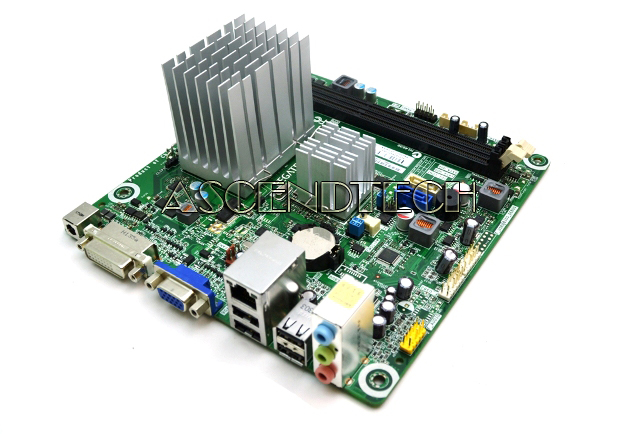

HP 661109-001 AMD Desktop Motherboard

HP Compaq CQ2000 Pavilion P2-1000 Series DDR3 Bluewood4 661109-001 AMD Mini-ITX Desktop Motherboard. HP meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

HP Part Number: 661109-001

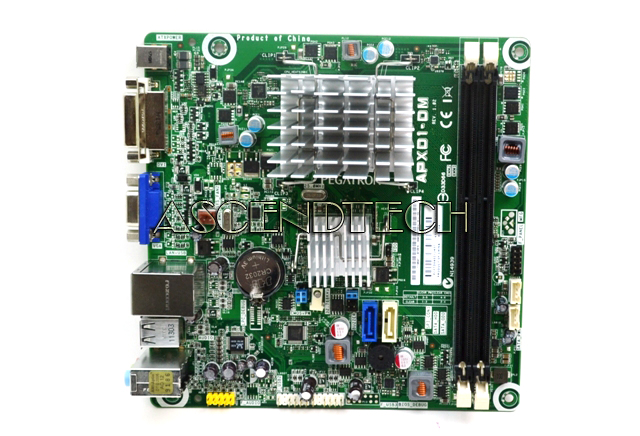

Compatible Part Numbers: PEGATRON APXD1-DM 69M10AP70B04

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!

Compatible Models:
Compaq CQ2014 Desktop PC
Compaq CQ2713w PC
HP Pavilion p2-1015cx PC PRC
HP Pavilion p2-1033w Desktop PC
HP Pavilion p2-1049 Desktop PC
HP Pavilion p2-1113w Desktop PC
HP Pavilion p2-1124 Desktop PC
HP Pavilion p2-1140 Desktop PC






Specifications:

CPU/Processor: AMD Fusion E450 (Zacate) Dual Core processor soldered down on the motherboard
TDP: 18W

Front-Side Bus: UMI (Unified Media Interface)
4 lanes, 2.5 GT/s per lane

Chipset: AMD Hudson-D1 FCH

Memory: Single channel memory architecture
Two 240-pin DDR3 UDIMM sockets
Supports DDR3 UDIMMs
PC3-6400 (800 MHz)
PC3-8500 (1066 MHz)
Non-ECC memory only, unbuffered
Supports up to 4 GB on 32-bit systems
Supports up to 32 GB on 64-bit systems (with 16 GB DIMMs)
NOTE: 32-bit systems cannot address a full 4.0 GB of memory

Form Factor: Mini-ITX form factor: 17 cm (6.7 inches) x 17 cm (6.7 inches)

Video Graphics: Integrated graphics Radeon HD 6320
DVI and VGA output ports (both ports can be used at the same time)

Onboard Audio: Realtek ALC662 CODEC

Onboard LAN: Interface: Integrated into motherboard
Technology: Atheros AR8152
Data transfer speeds: up to 10/100 Mb/s
Transmission standards: 10-Base-T Ethernet

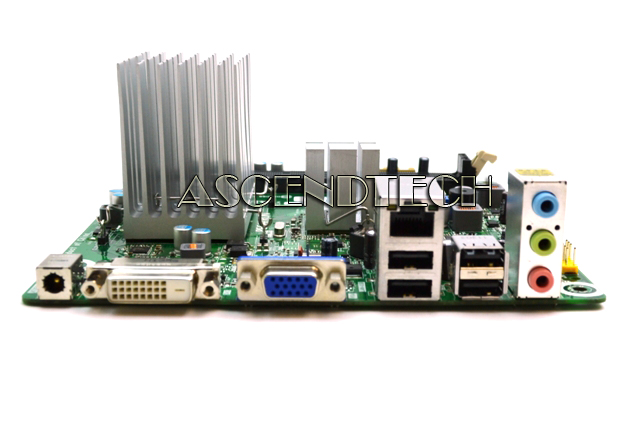

Back panel I/0

1 - DC input power

2 - DVI

3 - VGA

4 - LAN

5 - USB 2.0: 4

6 - Audio: Line in

7 - Audio: Line out

8 - Audio: Microphone

Internal connectors

1x CPU fan connector
2x SATA connectors 2.0
1x SATA power connector
1x Front panel audio connector
1x Front panel connector
4x USB 2.0 connectors
