HP AmberineM A8AE-LE 5188-3638 Board

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

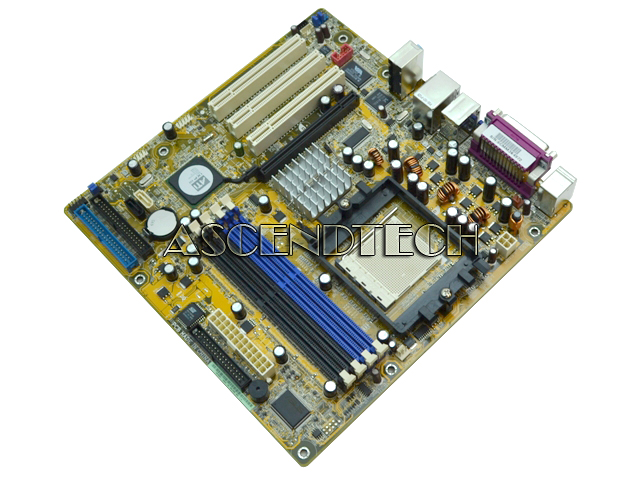

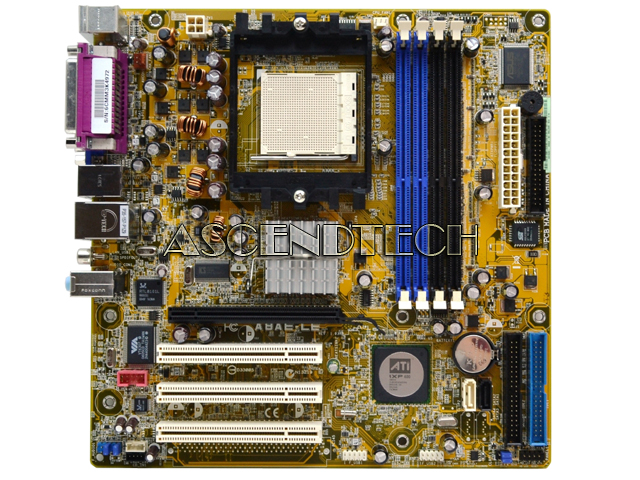

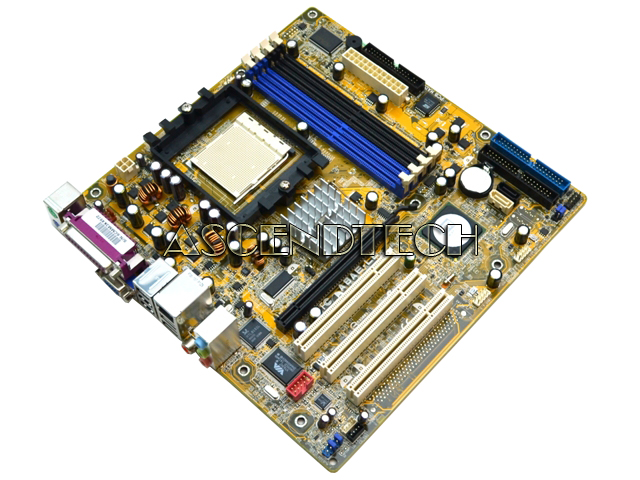

Hp Amberinem A8ae-Le 5188-3638 Board. Model: 5188-3638 5188-2526
  Enlarge
Hp Amberinem A8ae-Le 5188-3638 Board. Model: 5188-3638 5188-2526
Hp Amberinem A8ae-Le 5188-3638 Board. Model: 5188-3638 5188-2526
Hp Amberinem A8ae-Le 5188-3638 Board. Model: 5188-3638 5188-2526
Hp Amberinem A8ae-Le 5188-3638 Board. Model: 5188-3638 5188-2526
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBA51883638SDMB
Brand Hp / Compaq - Hewlett-Packard
Model 5188-3638 5188-2526
Category Amd Socket 939 Motherboard
Condition Like New Grade A

Description

HP Presario SR Pavilion A1 Series AMD Socket 939 AmberineM-GL6E Desktop ATX Motherboard 5188-3638.

HP Part Number: 5188-3638
Compatible Part Numbers: 5188-2526
HP/Compaq Name: AmberineM-GL6E
Asus Model Number: A8AE-LE
Compatible Models: HP Presario SR1700Z HP Presario SR1730Z HP Presario SR1030Z HP Presario SR1020Z HP Pavilion A1330E HP Pavilion A1200E HP Pavilion A1130E HP Pavilion A1100E

Please Note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!









Specifications:

CPU/Processor

·         Socket: 939

·         Supports the following processors:

·         AMD Athlon 64 X2 4800+

·         Athlon 64 4000+

·         AMD Sempron 3200+

Front-side bus (FSB)

·         2000MT/s or 1600MT/s, depending on what the processor supports

Chipset

·         Northbridge: RS482

·         Southbridge: SB400

BIOS features

·         4Mb LPC EEPROM

·         HP BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus

Form factor

·         ATX form factor, 9.6 in x 9.6 in

Memory

·         Dual-channel memory architecture

·         4 x 184-pin DDR DIMM sockets support unbuffered non-ECC 4 GB 400/300 MHZ DDR memory modules

·         Maximum HP/Compaq approved memory is 4 GB*

NOTE: *Actual available memory may be less

Expansion slots

·         Three PCI

·         One PCI Express (No AGP slot)

Video graphics

·         Integrated

Serial ATA

·         2 SATA connectors

·         Each connector supports 1 serial ATA-150 disk drive

Onboard audio or audio card

·         Controller: AC97 audio

·         Location: Integrated

Onboard LAN

·         Realtek 8101L

·         10/100 Mbps LAN PHY

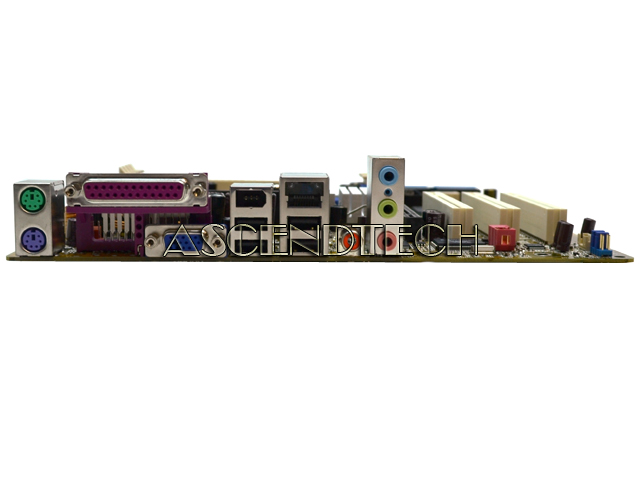

Back panel I/O

·         One PS/2 mouse port

·         One PS/2 keyboard port

·         One VGA (monitor)

·         One Parallel

·         Four USB (2.0)

·         One IEEE 1394

·         One RJ-45 networking port

·         One S/PDIF out

·         Audio (line in, line out, microphone)

Internal connectors

·         One 24-pin ATX power connector

·         One 4-pin ATX power connector

·         Two IDE connectors

·         Two SATA connectors

·         One floppy drive connector

·         One CPU fan connector

·         One System fan connector (also known as duct or chassis fan)

·         One system indicator LEDs / power switch / reset button connector

·         One each, front headphone, microphone in, line in (Aux-in)

·         One front panel power and LED connectors

·         Two USB connectors supporting 4 additional USB 2.0 ports

·         One IEEE 1394a connector supporting one 1394a port
