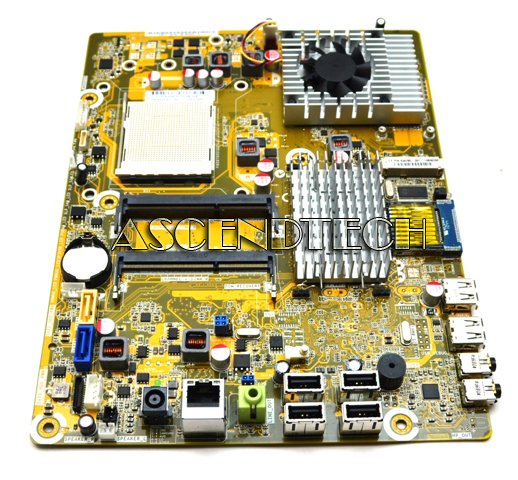

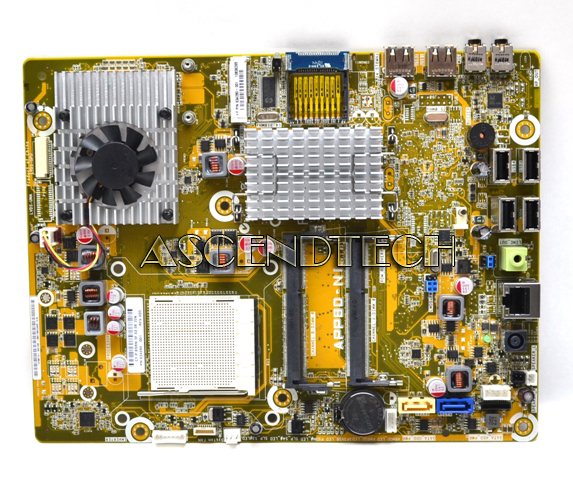

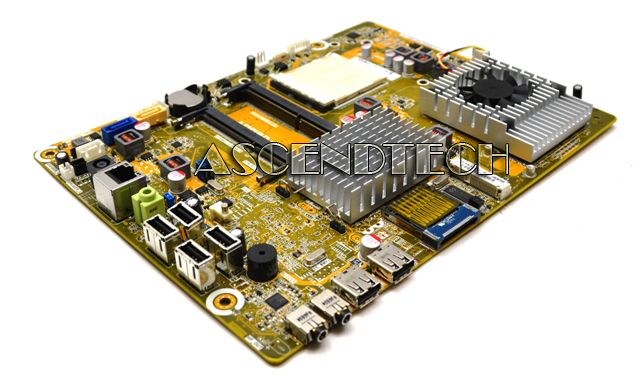

HP APP80-NI 634280-001 Motherboard

HP APP80-NI (Alberta-G) 634280-001 Omni 100 PC All in One Motherboard. HP meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

HP Part Number: 634280-001
Manufacturer’s Model Number: APP80-NI (Alberta-G)
Compatible Models: HP Omni 100 All in One Series

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!



Specifications:

CPU
Socket type: AM3+
Only Socket AM3 processors are supported with this motherboard.

Motherboard supports the following processor upgrades:
AMD Athlon II X2 2xxU (Regor core)
AMD Athlon II 1xxU (Sargas core)

Front Side Bus Speed
HyperTransport 3 (up to 5.2GT/s)

Chipset
AMD M880G (RS880M and SB820M)

Memory
2×240pin DDR3 DIMM Sockets
Supports 1GB, 2GB, and 4 GB DDR3 SO-DIMMs per socket
Supports Dual channel memory architecture
Supported speeds:
PC3-8500 @ 1066 MHz*
PC3-10600 @1333 MHz - only for models that include the 270U processor
PC3-10600 may be used but will run at a slower supported speed.
Non-ECC memory only, unbuffered
Supports up to 8 GB on 64-bit PCs (DIMMs run at DDR3-1066)

Expansion Slots
1 x PCI Express x1 mini slot
1 x PCI x16 slot for graphics card

LAN
Interface: Integrated into motherboard
Technology: Realtek RTL8105E
Data transfer speeds: up to 10/100 Mb/s
Transmission standards:10-Base-T Ethernet

Video
ATI Radeon HD5450 graphics processing unit (GPU) soldered to the motherboard
Interface: GPU chip soldered onto motherboard
Maximum resolution:
HDMI TV resolution: up to 1080p at 60 Hz*
HDMI PC resolution: 2560x1600 at 60 Hz
DVI TV resolution: up to 1080p at 60 Hz*
DVI PC resolution: 1920x1200 at 60 Hz
VGA resolution: 2048x1536 at 60 Hz
Use ATI Catalyst Control Center software to optimize display
512 MB onboard memory
Supports HDTV and Blu-ray up to 1080p
Supports HDCP
NOTE:This motherboard also contains integrated UMA ATI Radeon HD4270 graphics with shared memory up to 256MB. The integrated UMA graphics are disabled because a GPU is already installed and soldered down onto the motherboard.

Audio
Integrated High Definition audio
Audio CODEC: Realtek ALC269
Supports jack sensing
Supports Line-input, Mic-input, Headphone output

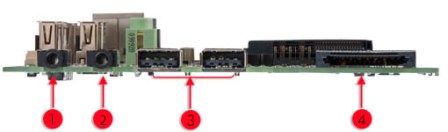

Side Back I/O Ports



1 - Headphone out
2 - Microphone in
3 - Two USB 2.0 ports
4 - Slot for memory card reader

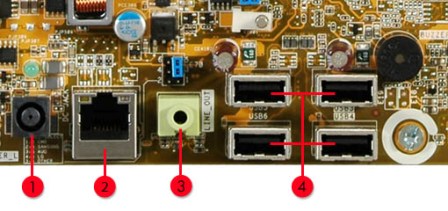

Back I/O Ports



1 - DC power input
2 - RJ45 Network (LAN)
3 - 3.5mm analog audio out port (supports 2 channels)
4 - Four USB 2.0 ports

Internal Connectors
1 x LVDS connector for onboard graphics output to LCD display
Sata 2.0
Sata 1.0
2 x Hard drive power
1 x Speaker Left/Right
1 x connector for Inverter
1 x USB connector for Webcam
1 x Power button and side key connector
1 x system fan
Card reader connector

Form Factor
Custom 186.3mm (7.33 inches) x 204.95mm (8.07 inches)
