HP CQ-1000 Series Motherboard 626780-001

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

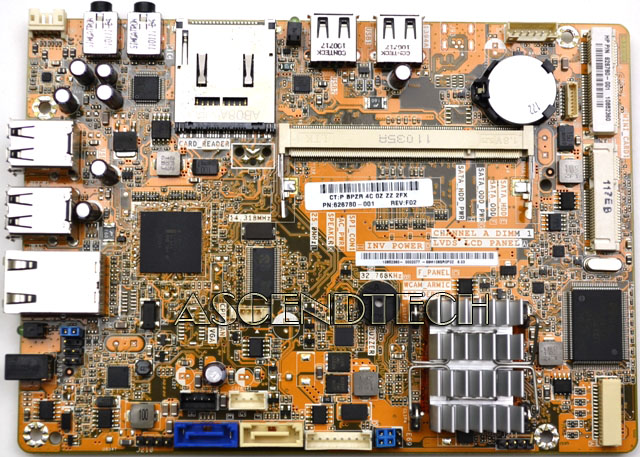

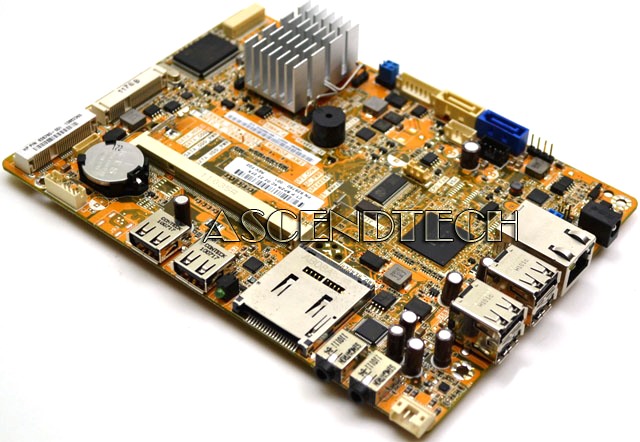

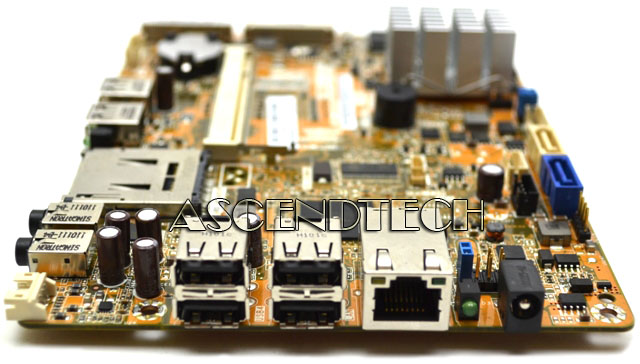

Hp Cq-1000 Series Motherboard 626780-001. Model: 599988-001 599988-201
  Enlarge
Hp Cq-1000 Series Motherboard 626780-001. Model: 599988-001 599988-201
Hp Cq-1000 Series Motherboard 626780-001. Model: 599988-001 599988-201
Hp Cq-1000 Series Motherboard 626780-001. Model: 599988-001 599988-201
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBHP626780INTEL
Brand Hp / Compaq - Hewlett-Packard
Model 599988-001 599988-201
Category All-In-One Desktop Motherboards
Condition Like New Grade A

Description

HP Compaq Presario CQ1-1000 Series Intel Atom D410 1.66GHz Processor Sanxia All-In-One Motherboard IPPPV-TX 626780-001 599988-001 599988-201.

HP Part Number: 626780-001
Model Number: IPPPV-TX
Compatible Part Numbers: 599988-001 599988-201
HP/Compaq Name: Sanxia

Please Note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!










Specifications:

Form Factor

Custom: 14.19 cm (5.59 in) x 17.09 cm (6.73 in)

Chipset

Intel NM10 Express

Front-Side Bus Speed

DMI bus: 10 Gb/s each direction, full duplex

Processor Upgrade Information

Motherboard supports the following processor upgrades:
- Intel Atom D510 (P)
- Processor is soldered directly to the motherboard.

Memory Upgrade Information

Memory upgrade information:
- Two DDR2 SO-DIMMs (200-pin) sockets
- Supports 1GB and 2GB DDR2 SO-DIMMs
- Single channel memory architecture
- Supported speeds
- PC2-6400 @ 667 MHz
- Non-ECC memory only, unbuffered
- Supports up to 4 GB on 64-bit PCs
- Supports up to 4 GB* on 32-bit PCs
* Actual available memory may be less.
- Maximum memory only if using 2GB DDR2 SO-DIMM modules

Video

Integrated Intel GMA 3150 graphics
*Integrated video is not available if a graphics card is installed.
- One PCI Express x1 mini card socket
- < 15 Watts
-  Supports the LVDS display interface needed to drive the LCD panel

Audio

Integrated Realtek ALC663 Audio
*Integrated audio is not available if a sound card is installed.
- Number of channels: 6
- Audio CODEC: ALC663
- Supports stereo audio through an analog connection

Network

LAN: Gigabit 10-Base-GT
- One Atheros AR8132 10/100 Mb/s

Expansion Slots

- Two PCI Express x1 mini card sockets

I/O Ports

Side I/O ports:
- USB 2.0: 2
- Card reader activity LED/integrated single-slot memory card reader
- Microphone input/line-level audio output

Back I/O ports:
- USB ports: 4
- RJ-45 Ethernet
- DC power indicator LED/DC power input







Compatible Models: HP Compaq Presario CQ1-1002la All-in-One PC Compaq Presario CQ1-1005LA All-in-One PC Compaq Presario CQ1-1006la All-in-One PC Compaq Presario All-in-One CQ1-1010br PC Compaq Presario All-in-One CQ1-1201LA PC Compaq Presario All-in-One CQ1-1203LA PC Compaq Presario All-in-One CQ1-1205LA PC Compaq Presario All-in-One CQ1-1206LA PC Compaq Presario CQ1-1001LA All-in-One PC Compaq Presario CQ1-1003LA All-in-One PC Compaq Presario CQ1-1004LA All-in-One PC Compaq Presario CQ1-1007LA All-in-One PC Compaq Presario CQ1-1009LA All-in-one PC Compaq Presario CQ1-1020 PC Compaq Presario CQ1-1202la All-In-One PC Compaq Presario CQ1-1011AN All-in-One PC Compaq PresarioCQ1-1011D All-in-One PC Compaq Presario CQ1-1006L All-in-One PC Compaq Presario CQ1-1020IX All-in-One PC Compaq Presario CQ1-1030in All-in-One PC Compaq PresarioCQ1-1012AN All-in-One PC
