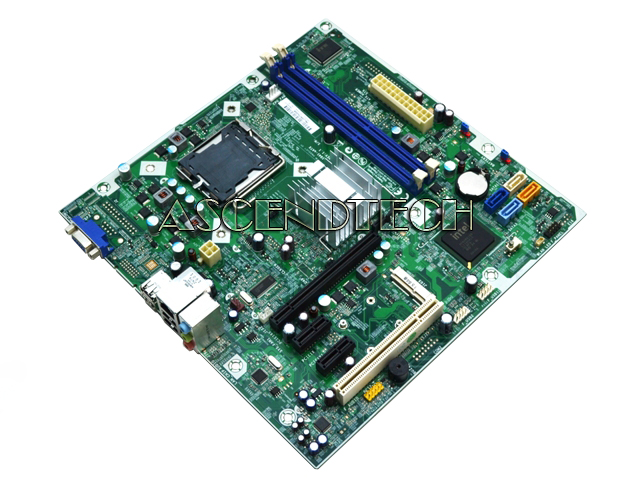

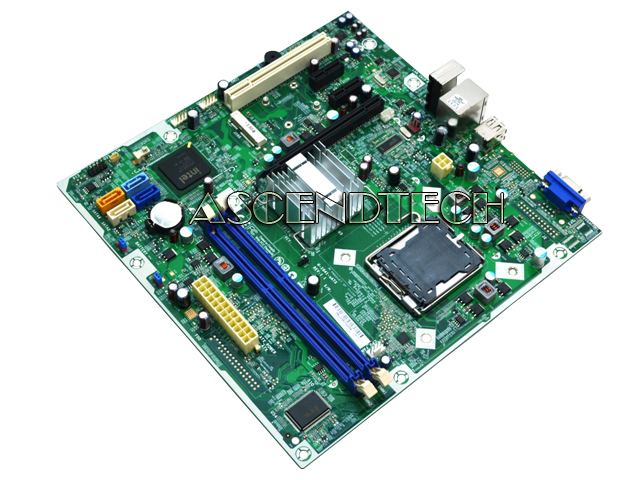

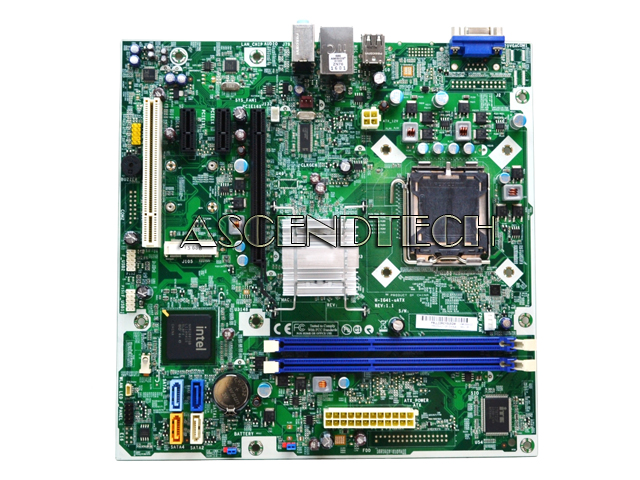

608884-002 Eton H-IG41 | Hp Eton H-Ig41 608884-002 Motherboard

HP Pavilion Slimline S5610T Series H-IG41 608884-002 Intel Micro-ATX Motherboard. HP meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

HP Part Number: 608884-002
HP/Compaq Name: Eton
Foxconn Model Number: H-IG41-uATX

Please Note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!

Compatible Models:
HP Pavilion Slimline S5610T Series

Specifications:

Form Factor	Micro-ATX: 24.5 cm (9.6 inches) x 24.5 cm (9.6 inches)
Chipset	Intel G41 Express
Front-Side Bus Speed	1333/1066/800 MHz
Processor Upgrade Information	TDP: Varies by processor Motherboard supports the following processor upgrades: - Core 2 Quad Q8xx0/Q9xx0 (Yorkfield core) (95W) - Core 2 Duo E8xx0 (Wolfdale core) (65W) - Core 2 Duo E7xx0 (Wolfdale core) (65W) - Pentium Dual Core E5xx0 (Wolfdale core) (65W) - Celeron Dual Core E1xx0 (Conroe core) (65W) - Celeron 4xx series (Conroe core) (35W)
Memory Upgrade Information	- Supports DDR3 DIMMs only - Dual channel memory architecture - Two DDR3 DIMM (240-pin) sockets DIMM types: - PC3-10600 (DDR3-1333) - PC3-8500 (DDR3-1066) - PC3-6400 (DDR3-800) - Non-ECC memory only, unbuffered - Supports 2 GB DDR3 DIMMs - Supports up to 4 GB on 64-bit PCs - Maximum memory only if using 2GB DDR3 DIMM modules NOTE: 32-bit PCs cannot address a full 4.0 GB of memory
Video	Integrated graphics using Intel GMA x4500 Integrated video is not available if a graphics card is installed. - Integrated graphics using Intel GMA x4500 - Also supports PCI Express x16 graphics cards NOTE: *Either integrated graphics or the PCI Express x16 slot are usable at one time; they are not usable concurrently.
Audio	Integrated Realtek ALC662 Audio *Integrated audio may not be available if a sound card is installed. - Number of channels: 6 - Audio CODEC: ALC662 - Maximum bit depth: up to 24-bit - Maximum sample rate: up to 96,000 Hz - Supports SPDIF digital
Network	LAN: 10-Base-T - Technology: Realtek RTL8103EL - Data transfer speeds: up to 10/100 Mb/s - Transmission standards:10-Base-T Ethernet
Expansion Slots	- One PCI Express x16 - Two PCI Express x1 - One PCI - One PCI Express x1 minicard socket

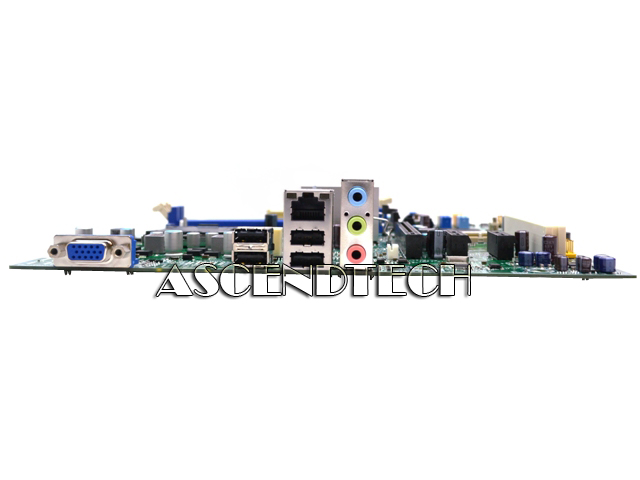

I/O Ports	Back I/O ports - Video Graphics Adapter port - USB 2.0: 4 - RJ45 Network (LAN) - Line In port (light blue) - Line Out port (lime) - Microphone port (pink)

HP Eton H-IG41 608884-002 Motherboard
