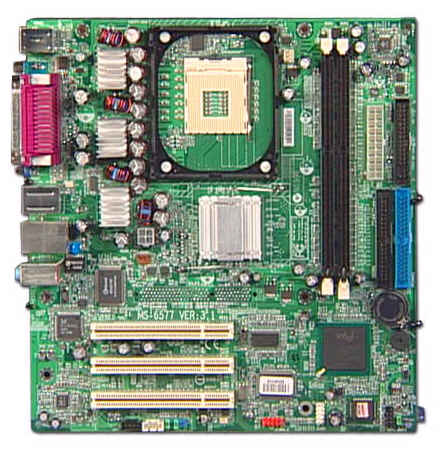

HP Gamila GL6E S478 533FSB Motherboard
Actual product may vary.
Description
HP / Compaq Gamila GL6E Socket 478 Intel P4 Motherboard. HP / Compaq Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.
Compatible with HP / Compaq Models:
a400n DQ173AR, a400n DQ173A, a400y CTO D7222K, a404x DT041AR, a404x DT041A, a405n DW146AR, a405n DW146A, a408l DT111A, a408x DT166AR, a408x DT166A, a410n DQ174AR, a410n DQ174A, a412d DT380A, a414x DT037AR, a414x DT037A, a418d DT114A, a418l DT112A, a418x DT045A, a420d DT272A, a422d DT270A, a426d DT273A, a428d DT115A, a446x DT051AR, a446x DT051A, a450a DT065AR, a450a DT065A, a450a DT065R, a502l PE431A, a503I PE432A, a504I PE433A, j405cl DT132A, t430i DT104A, t438d DT117A, u400cl DW297A, u401cl DY020A, S6030AN DT082AR, S6030AN DT082A, S6030AN DT082R, Presario S6010AN DT081AR, Presario S6010AN DT081A, Presario S6010AN DT081R, Presario S6010HK DT258A, Presario S6020HK PC152A, Presario S6060IL DY008A, Presario S6070IL DT386A, Presario S6080IL DY116A, Presario S6090IL DY007A, Presario S6104NX DY113AR, Presario S6104NX DY113A, Presario S6150AP DT124A, Presario S6180HK DT141A, Presario S6200CF CTO P8657AV, Presario S6280HK DT142A, Presario S6308NX PC066AR, Presario S6308NX PC066A, j405cn
Related Part Number: 5187-4921
Specifications:

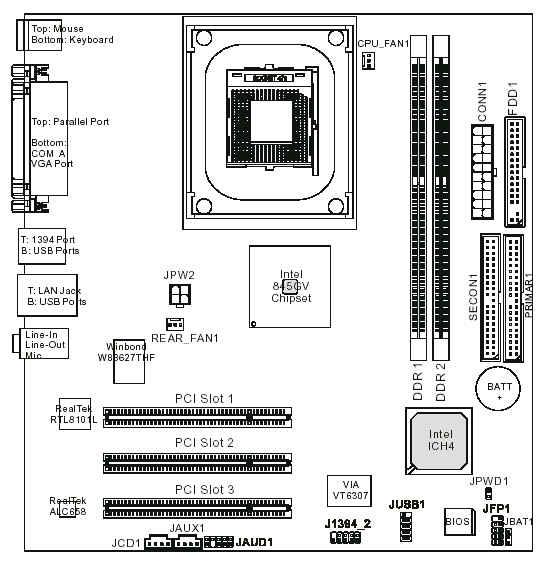

Motherboard Description | MB manufacturer name: MSI MS-6577 |
CPU | Socket 478 for Intel P4 Williamette and Northwood processors 1.4GHZ to 2.8GHz or higher |
Intel 845GV Chipset | FSB 400/533 Multiplexed AGP interface Integrated 3D/2D graphic core Supports DDR 333/266/200 memory |
Intel ICH4 Chipset | High speed USB 2.0 controller, 480Mb/sec PCI Master 2.2 I/O APIC AC'97 2.2 interface Three UHCI host controllers One EHCI host controller |
Main Memory | Four memory banks using two 184-pin unbuffered DDR 333/266/200 DIMMS Maximum memory is 2GB without ECC (the PC manufacturer's recommended maximum memory may differ) 2.5V DDR DIMMS |
Slots | Three 32-bit Master PCI (peripheral component interconnect) Bus slots |
Onboard Peripherals | Two PS/2 ports Six USB ports (four front, two rear) One Parallel port One Serial port One VGA Two IEEE 1394 (one front, one rear) One RJ-45 LAN port Vertical audio ports (line-in, line-out, microphone-in) |
Connectors | Two IDE (ATA 100) One ATX power One Floppy One AUX-in One Mic-in |
Pinheaders | One Front panel One Clear password One Clear CMOS |
Audio | AC'97 link controller integrated in ICH4 Six-channel software codec RealTek AL658 (optional) |
IEEE 1394 | VIA VT6307 chip integrated onboard |
LAN | RealTek RTL8101L chip Integrated Fast Ethernet MAC AND PHY (one chip) Supports 10 Mb/s and 100Mb/s Compliance with PCI V2.2 Supports ACPI Power Management |
BIOS | PnP (plug & play) to detect peripheral devices and expansion cards automatically. DMI (desktop management interface) function to record motherboard specifications |

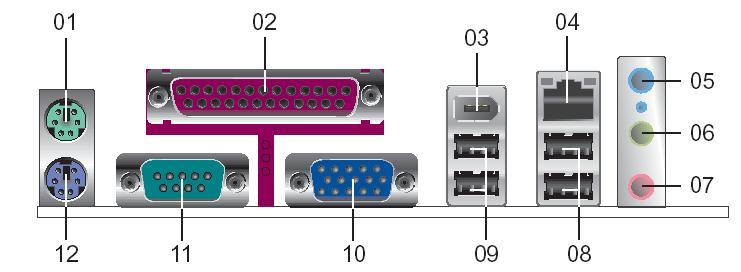

2 - Parallel port
3 - IEEE 1394 connector
4 - RJ-45 connector
5 - Line in jack
6 - Line out jack
7 - Microphone jack
8 - USB 2.0 connectors
9 - USB 2.0 connectors
10 - VGS connector
11 - Serial connector
12 - PS/2 Keyboard
