HP Gigabit-LX Fiber Card J4114-60001
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code NETHJ4114A60001
Model J4114A
Part Number J4114-60001
Category Network Ethernet / Lan Cards
Condition Pre-Owned Grade B
Condition Description Please note, this item is used and has minor scuffs and scratches, but is fully tested & completely operational.
Description

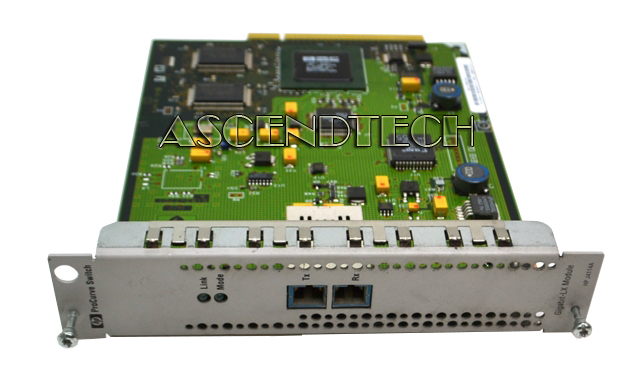

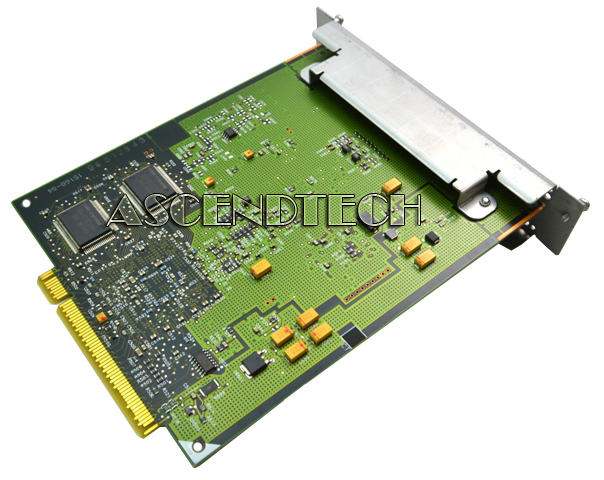

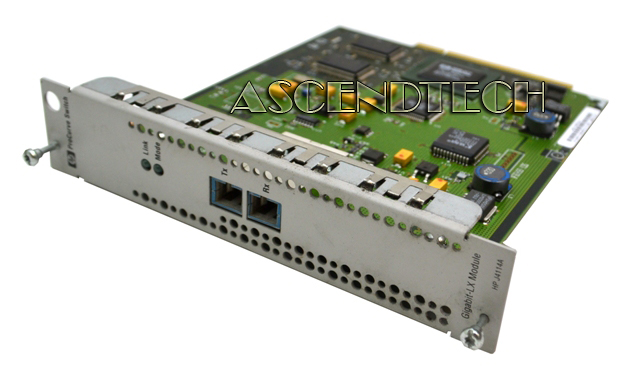

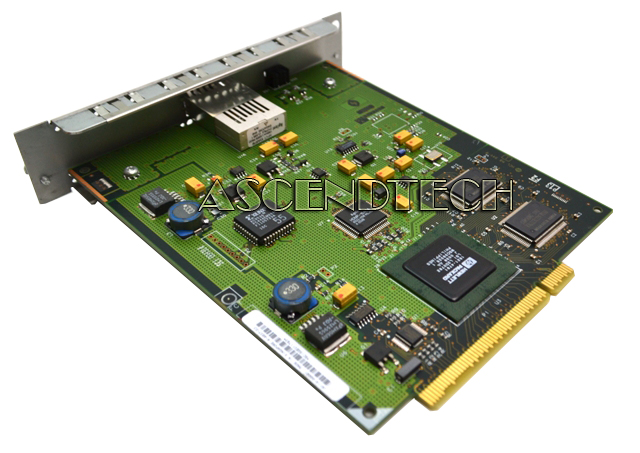

Genuine Original Hewlett Packard Gigabit-LX Fiber Module Card for ProCurve 4000M J4114A J4114-60001. The HP ProCurve Switch Modules are components that you can add to an HP ProCurve switch to provide a variety of network connectivity options. The J4114A is one fiber-optic port with SC connector for 1000 Mbps (Gigabit Ethernet) operation over single mode or multimode fiber-optic cable.
Model Number: J4114A
Part Number: J4114-60001
Specifications:
| Cable Type | Single mode fiber-optic cables that are fitted with SC connectors. 62.5/125 mm or 50/125 mm core/cladding diameter graded-index, multimode fiber-optic cables may also be usable, but a mode conditioning patch cord may be needed |
| Maximum Length | 5 kilometers |
| The default port configurations | Gigabit-LX Module: 1000FDx — 1000 Mbps, Full Duplex |
| Temperature | Operating 0C to 55C (32F to 131F) Non-Operating -40C to 70C (-40F to 158F) |
| Relative humidity: (non-condensing) | Operating 15% to 95% at 40C (104F) Non-Operating 15% to 90% at 65C (149F) |
| Maximum altitude: | Operating 4.6 Km (15,000 ft) Non-Operating 4.6 Km (15,000 ft) |
| Connectors | The port on the Gigabit-LX Module transmits at 1300 nm wavelength, and is compatible with the IEEE 802.3z Gigabit-LX standard. It accepts the single mode or multimode fiber-optic cables for Gigabit-LX. |
| Fiber-Optic | single mode fiber-optic cables, complying with the ITU-T G.652 and ISO/IEC 793-2 Type B1 standards, fitted with SC connectors OR 62.5/125 mm or 50/125 mm (core/cladding) diameter, gradedindex, multimode fiber-optic cables, complying with the ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a respectively, fitted with SC connectors |
