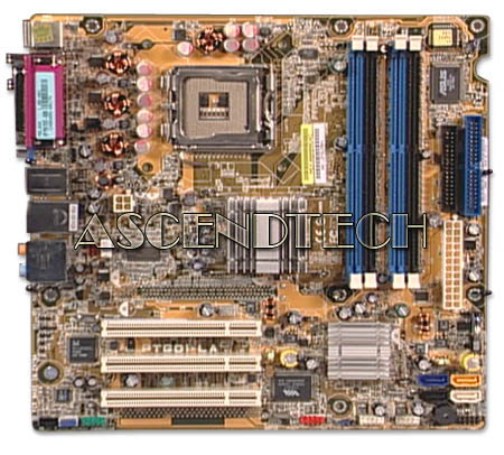

Hp Goldfish2 Gl8e Lga775 800Fsb Mboard. Model: 5188-1036 5188-0145
  Enlarge
Hp Goldfish2 Gl8e Lga775 800Fsb Mboard. Model: 5188-1036 5188-0145
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4HPGOLDFISH2
Brand Hp / Compaq - Hewlett-Packard
Model 5188-1036 5188-0145
Category Intel Lga775 Motherboards

Description

HP / Compaq Goldfish2 GL8E LGA775 5188-1036 Desktop Motherboard. HP / Compaq Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

HP Part Number: 5188-1036
Compatible Part Numbers: 5188-0145 PTGD1-LA
Compatible Models: HP a1020a  PW575AA, a805n PS519AAR, a805n PS519AA, a809l PS153AA , a810y CTO PU002AV, a815n PS512AAR PS512AA, a815y CTO PU146AV, a816d PS158AA , a817n PS483AAR, a817n PS483AA, Pavilion a818n PS453AAR PS453AA, Pavilion a819n PS526AAR PS526AA, Pavilion a820n PP165AAR PP165AA, Pavilion a824n PS500AAR PS500AA, Pavilion a835tw  PW789AA, Pavilion a844n PW525AAR PW525AA, Pavilion a847c PP169AAR PP169AA, a1019h PS568AA, a1020a PW575AAR, a1020d PW626AA, a1030l ED793AA, a1048hk  PW786AA, a1068hk  PW663AA, a814x PW729AA, w5010la PW706AA, w5020la PW701AA, w5030la PW707AA, w5040la PW708AA, w5072l PY111AA, Presario SR1005T CTO PJ688AVR/PJ688AV/PU028AVR/PU028AV, Presario SR1318NX PS461AAR PS461AA, Presario SR1319RS PS463AAR PS463AA, Presario SR1320CF CTO PJ747AV, Presario SR1325CF CTO PJ746AV, Presario SR1334NX PS560AAR PS560AA, Presario SR1348HK  PS174AA, Presario SR1350NX PP196AAR PP196AA, Presario SR1368HK  PS491AA, Presario SR1315TW  PX737AA, Presario SR1415AL ED782AA, Presario SR1417LA PW702AA, Presario SR1418LA PW762AA, Presario SR1420CF CTO PU196AV, Presario SR1420LA PW703AA, Presario SR1425CF CTO PU195AV, Presario SR1430LA PW704AA, Presario SR1448HK  PW662AA

Specifications:

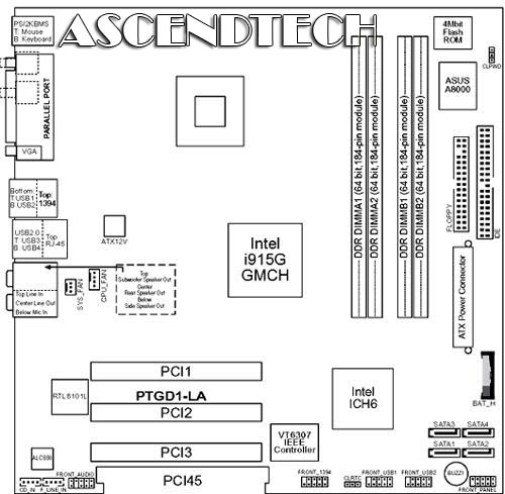

Motherboard description
  • Motherboard manufacturer's name: ASUS PTGD1-LA
  • HP/Compaq name: Goldfish2-GL8E
CPU/Processor
  • Socket: LGA775
  • Supports processor up to 3.4 GHz
  • Supports Intel Pentium 4 HT processors
Front-side bus (FSB)
  • 800 MHz
Chipset
  • Northbridge: i915G graphics and memory controller hub
  • Southbridge: ICH6 Intel I/O Controller Hub 5
BIOS features
  • 4Mb FWH EEPROM
  • HP BIOS with Enhanced ACPI, DMI, Green, PnP Features Plus
Form factor
  • Micro-ATX form factor, 9.6 in x 9.6 in
Memory
  • Four 184 pins DIMM sockets support up to 4GB non-ECC 2.6V DDR SDRAM (Register DIMMsis not supported)
  • Supports PC 2100 (266 MHz), PC 2700 (333 MHz) or PC 3200 (400 MHz) DDR-DIMMS
  • Maximum HP/Compaq approved memory is 4 GB
Expansion slots
  • Three PCI
  • No AGP slot
Video graphics
  • Integrated
Serial ATA
  • 4 SATA connectors
  • Each connector supports 1 serial Ultra DMA 150 disk drive
  • Hot Swap function
Onboard audio or audio card       Integrated Intel High Definition(TM) audio (Azalia)
      Realtek ALC880 8-channel High Definition Audio CODEC
Onboard LAN
  • Realtek RTL8101L LAN PHY (Physical Layer Protocol)
  • 10/100 Mbps Fast Ethernet controller
Front panel I/0
  • Two USB front panel (four ports)
  • One Audio
  • One IEEE 1394
Back panel I/O
  • One PS/2 mouse port
  • One PS/2 keyboard port
  • One VGA (monitor)
  • One Parallel
  • Four USB (2.0)
  • One IEEE 1394
  • One RJ45 networking port
  • Six audio ports support 8-channel audio configuration
  • One S/PDIF in
  • One S/PDIF out
Other onboard connectors
  • One ATX power connector
  • One ATX +12v power connector
  • One CPU fan connector
  • One System fan connector
  • One Jumper to clear CMOS
  • One Optical drive audio input
  • One Auxiliary audio input
  • Front panel power and LED connectors
  • Front panel audio connectors

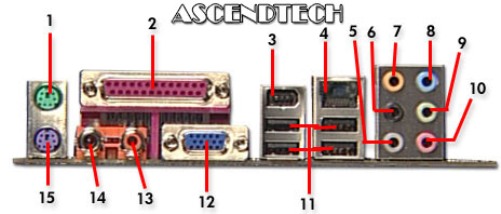

1 - PS/2 mouse port
2 - Parallel port
3 - IEEE 1394 port
4 - RJ-45 port
5 - Side Speaker Out port. This Side Speaker out (gray) port connects to the side speakers in an 8-channel audio configuration
6 - Rear Speaker Out port. This Rear Speaker (black) port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration
7 - Center/Subwoofer port. This Center/Subwoofer (yellow orange) port connects to the center/subwoofer speakers
8 - Line In port. This Line In (light blue) port connects a tape player or other audio sources
9 - Line Out port. This Line Out (lime) port connects a headphone or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speaker Out
10 - Microphone port
11 - USB 2.0 ports
12 - Video Graphics Adapter port. This 15-pin port is for a VGA monitor or other VGA-compatible devices
13 - S/PDIF Out port
14 - S/PDIF In port
15 - PS/2 keyboard port
