HP Goldfish3-GL8E LGA775 800FSB MBoard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

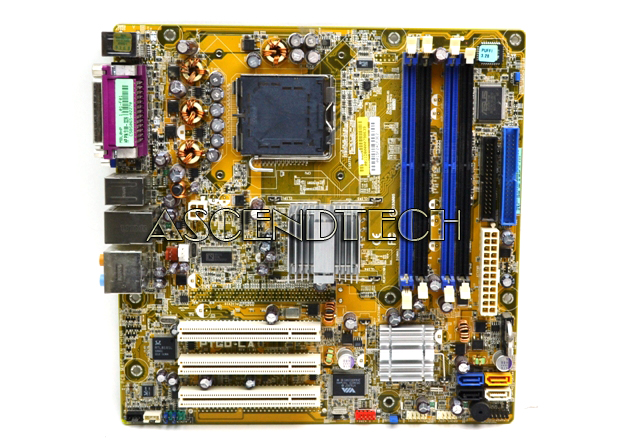

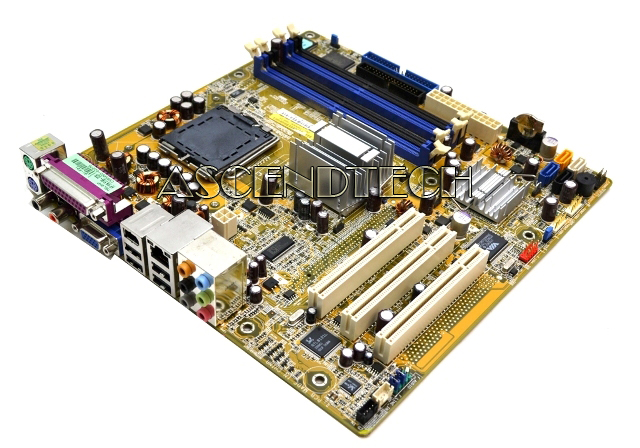

Hp Goldfish3-Gl8e Lga775 800Fsb Mboard. Model: 5188-3239 5188-1038 1668
  Enlarge
Hp Goldfish3-Gl8e Lga775 800Fsb Mboard. Model: 5188-3239 5188-1038 1668
Hp Goldfish3-Gl8e Lga775 800Fsb Mboard. Model: 5188-3239 5188-1038 1668
Hp Goldfish3-Gl8e Lga775 800Fsb Mboard. Model: 5188-3239 5188-1038 1668
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4HPGOLDFISH3
Brand Hp / Compaq - Hewlett-Packard
Model 5188-3239 5188-1038 1668
Category Intel Lga775 Motherboards

Description

HP / Compaq Goldfish-GL8E LGA775 800FSB DDR2 Serial ATA (SATA) Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

HP Part Number: 5188-3239
Compatible Part Numbers: 5188-1038 5188-1668 PTGD-LA
Compatible Models: HP / Compaq Presario, Pavilion PX-741AAR

Specifications:

Motherboard description
  • Motherboard manufacturer's name: ASUS PTGD-LA
  • HP/Compaq name: Goldfish3-GL8E / 5188-3239
CPU/Processor
  • Socket: LGA775
  • Supports processor up to 3.4 GHz
  • Supports Intel Pentium 4 HT processors
Front-side bus (FSB)
  • 800 MHz
Chipset
  • Northbridge: Intel 915GV Graphics Memory and Controller Hub (MCH)
  • Southbridge: Intel ICH6
BIOS features
  • 4Mb FWH EEPROM
  • HP BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus
Form factor
  • Micro-ATX form factor, 9.6 in x 9.6 in
Memory
  • Dual-channel memory architecture
  • 4 x 240-pin DIMM sockets support unbuffered non-ECC 4 GB 533/400 MHZ DDR2 memory modules
  • Maximum HP/Compaq approved memory is 4 GB*
Expansion slots
  • Three PCI
  • No AGP slot
Video graphics
  • Integrated
Serial ATA
  • 4 SATA connectors
  • Each connector supports 1 serial Ultra DMA 150 disk drive
  • Hot Swap function
Onboard audio Realtek ALC880 8-channel High Definition Audio CODEC
Onboard LAN
  • Realtek RTL8101L LAN PHY (Physical Layer Protocol)
  • 10/100 Mbps Fast Ethernet controller
Back panel I/O
  • One PS/2 mouse port
  • One PS/2 keyboard port
  • One VGA (monitor)
  • One Parallel
  • Four USB (2.0)
  • One IEEE 1394
  • One RJ45 networking port
  • Six audio ports support 8-channel audio configuration
  • One S/PDIF in
  • One S/PDIF out
Internal connectors
  • One ATX power connector
  • One ATX +12v power connector
  • One IDE connector
  • Four SATA connectors
  • One floppy drive connector
  • One CPU fan connector
  • One System fan connector (also known as duct or chassis fan)
  • One system indicator LEDs / power switch / reset button connector
  • One jumper to clear CMOS
  • One jumper to clear password
  • One optical drive audio input
  • One line level audio input
  • One front panel headphone and microphone connector
  • One front panel power and LED connectors
  • Two USB connectors supporting 4 additional USB 2.0 ports on front panel
  • One IEEE 1394a connector supporting one 1394a port

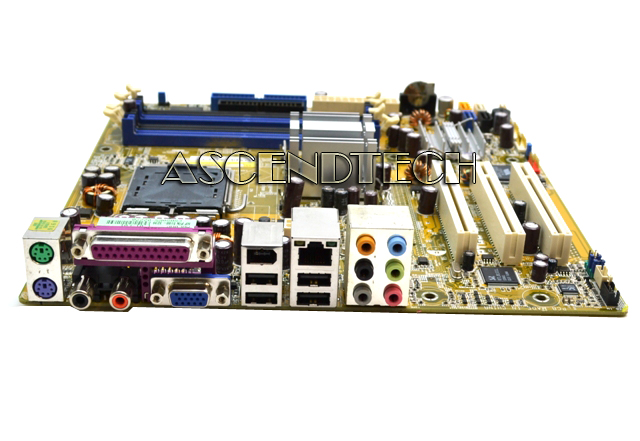

1 - PS/2 mouse port
2 - Parallel port
3 - IEEE 1394 port
4 - RJ-45 port
5 - Side Speaker Out port. This Side Speaker out (gray) port connects to the side speakers in an 8-channel audio configuration
6 - Rear Speaker Out port. This Rear Speaker (black) port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration
7 - Center/Subwoofer port. This Center/Subwoofer (yellow orange) port connects to the center/subwoofer speakers
8 - Line In port. This Line In (light blue) port connects a tape player or other audio sources
9 - Line Out port. This Line Out (lime) port connects a headphone or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speaker Out
10 - Microphone port
11 - USB 2.0 ports 3 and 4
12 - USB 2.0 ports 1 and 2
13 - Video Graphics Adapter port. [This 15-pin port is for a VGA monitor or other VGA-compatible devices.]
14 - S/PDIF Out port
15 - S/PDIF In port
16 - PS/2 keyboard port
