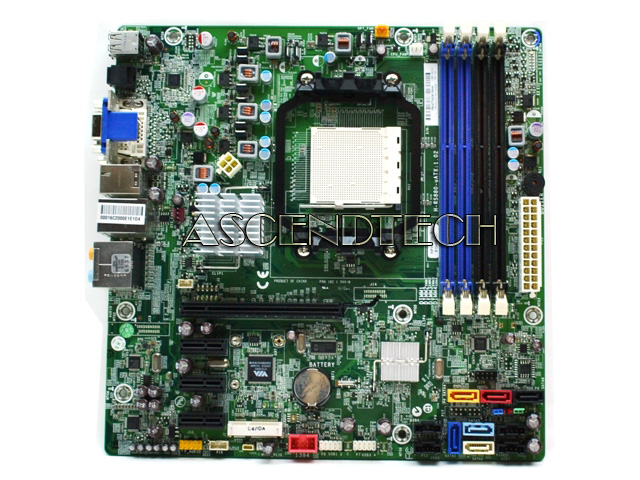

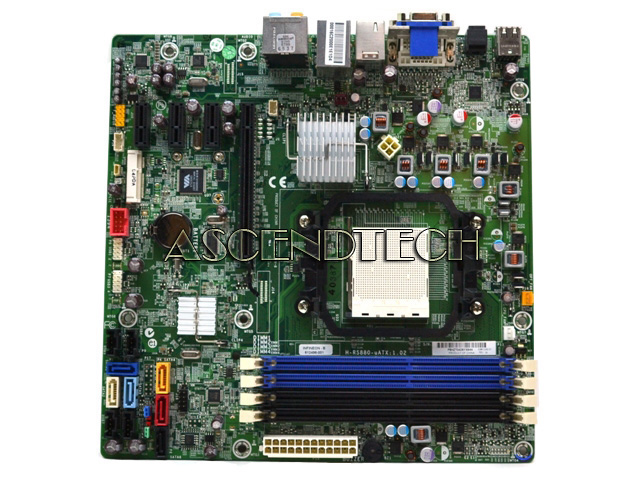

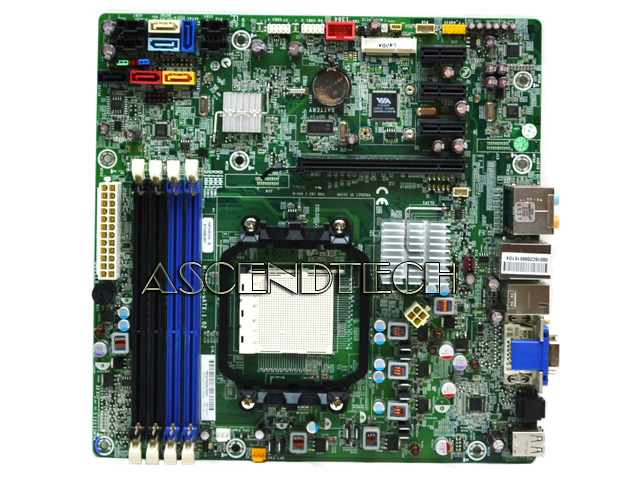

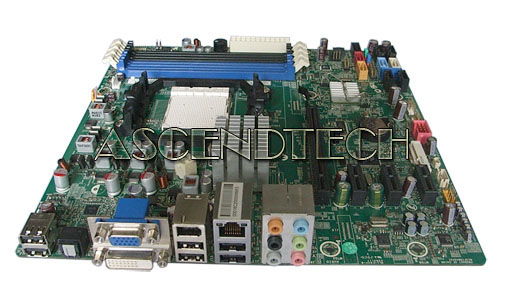

HP H-RS880-uATX Motherboard 537376-001
Description
HP Pavilion p6000 Pavilion Elite 100 200 300 500 e9000 H8-1000 Series AMD Socket AM3 Micro-ATX Desktop Motherboard 537376-001.
HP Part Number: 537376-001
Model Number: H-RS880-uATX
Manufacturer's Name: Aloe
Compatible Part Numbers: 612498-001 618937-001
Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!
Specifications:
| Form Factor | Micro-ATX: 9.6 in x 9.6 in |
| Chipset | AMD 785G |
| Front-side Bus Speed | 5200MT/s (5.2 GT/s) |
| Motherboard supports the following processor upgrades | AMD Phenom II X4 9xx/9xxe/8xx Quad-Core (D) AMD Phenom II X3 7xx/7xxe Triple-Core (H) AMD II Athlon X4 6xx/6xxe (P) AMD II Athlon X3 4xx/4xxe AMD II Athlon X2 2xx/2xxe |
| Memory upgrade information | Four DDR3 DIMM (240-pin) sockets Supports 1 GB, 2 GB, and 4 GB DDR3 DIMMs per socket Supports Dual channel memory architecture Supported speeds PC3-10600 @ 1333 MHz *PC3-8500 @ 1066 MHz *DDR3-1333 modules run at 1066 MHz if three or more modules are installed. Non-ECC memory only, unbuffered Supports up to 16 GB on 64-bit PCs (DIMMs run at DDR3-1066)Supports up to 4 GB* on 32-bit PCs * Actual available memory may be less. |
| Video | Integrated ATI Radeon HD 4200 graphics *Integrated video is not available if a graphics card is installed. Up to 256MB dedicated memory Can use both DVI and VGA ports at the same time. |
| Audio | * Integrated Realtec ALC888S Audio Audio CODEC: ALC888S Maximum bit depth: up to 24-bit Maximum sample rate: up to 192,000 Hz Supports one SPDIF digital connection *Integrated audio is not available if a sound card is installed. Number of channels: 8 |
| LAN | Gigabit 10-Base-GT Interface: Integrated into motherboard Technology: Realtek 8111C Data transfer speeds: up to 10/100/1000 Mb Transmission standards: Gigabit 10-Base-GT |
| Other Features | AMD RAID controller One PCI Express x16 Three PCI Express x1 One PCI Express x1 minicard socket |

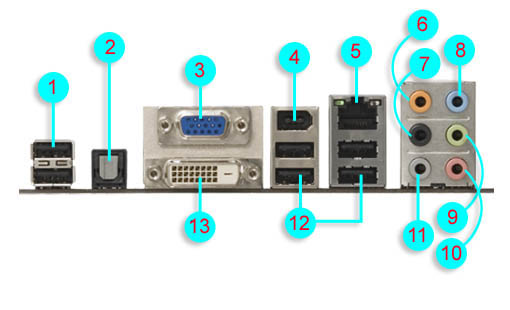

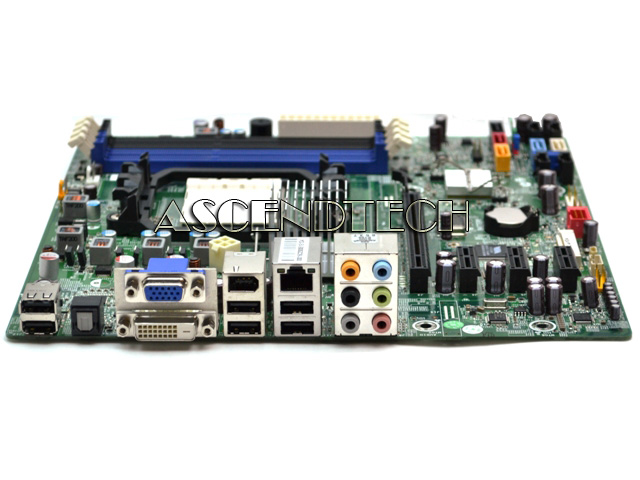

Back I/O panel
1 - Two 1.2 USB 1.1 ports for mouse and keyboard
2 - S/PDIF optical audio port
3 - Video Graphics Adapter port
4 - 1394a (FireWire)
5 - RJ45 Network (LAN)
6 - Audio: Center Speaker/Subwoofer out
7 - Audio: Rear Speaker Out
8 - Audio: Line in
9 - Audio: Front speaker/Line out
10 - Audio: Microphone in
11 - Audio: Side speaker out
12 - USB 2.0: 4 13 - DVI-D port
Internal Connectors
One opt fan connector
One cpu fan connector
Four DDR3-DIMM sockets
One 24-pin ATX power connector
One front panel header
Six SATA connectors
One clear CMOS jumper
One clear password jumper
Six USB headers
One IEEE-1394 front port
One line-in connector
One front audio connector
One PCI-E x16 connector [J3]
Three PCI-E x1 connectors
One PCI-E Mini-Card connector
One PCI-E Mini-Card LED header
One SPDIF output header
One PC fan connector
One 4-pin ATX power connector
Compatible Models: HP Pavilion Elite e9200z CTO Desktop PC HP Pavilion Elite e9220f Desktop PC HP Pavilion Elite e9220y Desktop PC HP Pavilion Elite e9240f Desktop PC HP Pavilion Elite e9260jp PC HP Pavilion Elite e9300z CTO Desktop PC HP Pavilion Elite e9360jp PC HP Pavilion p6218f Desktop PC HP Pavilion p6230f Desktop PC HP Pavilion p6230y Desktop PC HP Pavilion p6270z CTO Desktop PC HP Pavilion p6302f Desktop PC HP Pavilion p6306f PC HP Pavilion p6314f Desktop PC HP Pavilion p6319f Desktop PC HP Pavilion p6331p Desktop PC HP Pavilion p6347c Desktop PC HP Pavilion p6350z CTO Desktop PC HP Pavilion p6781c Desktop PC HP PAVILION CTO P6550Z HP Pavilion Elite HPE-110f Desktop PC HP Pavilion Elite HPE-112y Desktop PC HP Pavilion Elite HPE-130f Desktop PC HP Pavilion Elite HPE-175z CTO PC HP Pavilion Elite HPE-204f Desktop PC HP Pavilion Elite HPE-209f Desktop PC HP Pavilion Elite HPE-210f Desktop PC HP Pavilion Elite HPE-210y Desktop PC HP Pavilion Elite HPE-230f Desktop PC HP Pavilion Elite HPE-235f Desktop PC HP Pavilion Elite HPE-260jp PC JPN2 HP Pavilion Elite HPE-300z CTO Desktop PC HP Pavilion Elite HPE-341f PC HP Pavilion Elite HPE-360z CTO Desktop PC HP Pavilion Elite HPE-371f PC HP Pavilion Elite HPE-560jp HP Pavilion Elite HPE-560z CTO Desktop PC HP Pavilion p6501f PC HP Pavilion p6510f Desktop PC HP Pavilion p6510y Desktop PC HP Pavilion p6516f Desktop PC HP Pavilion p6518f Desktop PC HP Pavilion p6519f PC HP Pavilion p6520f Desktop PC HP Pavilion p6520y Desktop PC HP Pavilion p6522f Consumer PC HP Pavilion p6531c PC HP Pavilion p6531p Desktop PC HP Pavilion p6532f PC HP Pavilion p6540f PC HP Pavilion p6540y Desktop PC HP Pavilion p6550z CTO Desktop PC HP Pavilion p6726f PC HP Pavilion p6726f-b Bndl PC HP Pavilion p6777c PC HP Pavilion p6787c Desktop PC HP Pavilion HPE h8-1000z CTO Desktop PC HP Pavilion HPE h8-1050z CTO Desktop PC
