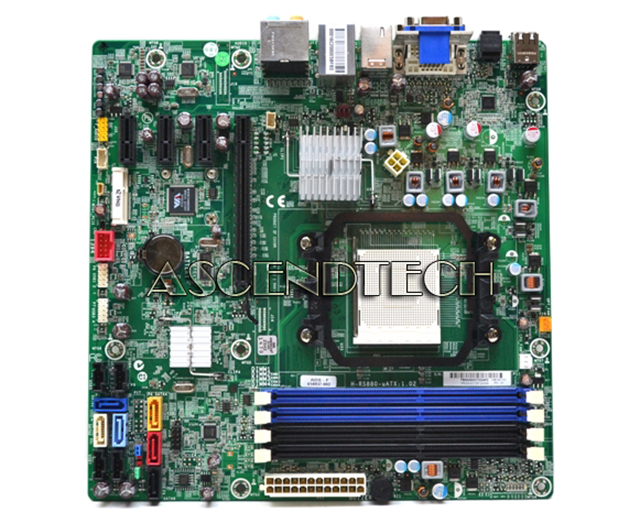

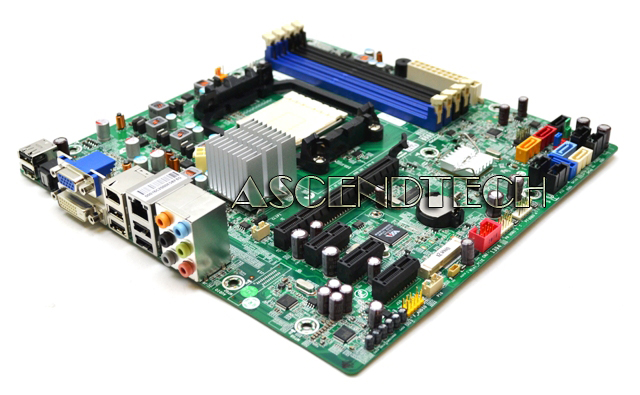

HP H-RS880-uATX Motherboard 618937-002

Form Factor

Micro-ATX: 9.6 in x 9.6 in

Chipset

AMD 785G

Front-side Bus Speed

5200MT/s (5.2 GT/s)

Processor Upgrade Information

Motherboard supports the following processor upgrades:
TDP=125W
AMD Phenom II X4 9xx/9xxe/8xx Quad-Core (D)
AMD Phenom II X3 7xx/7xxe Triple-Core (H)
AMD II Athlon X4 6xx/6xxe (P)
AMD II Athlon X3 4xx/4xxe ®)
AMD II Athlon X2 2xx/2xxe ®)

Memory Upgrade Information

Memory upgrade information:
Four DDR3 DIMM (240-pin) sockets
Supports 1 GB, 2 GB, and 4 GB DDR3 DIMMs per socket
Supports Dual channel memory architecture
Supported speeds

PC3-10600 @ 1333 MHz*

PC3-8500 @ 1066 MHz

*DDR3-1333 modules run at 1066 MHz if three or more modules are installed.

Non-ECC memory only, unbuffered
Supports up to 16 GB on 64-bit PCs (DIMMs run at DDR3-1066)
Supports up to 4 GB* on 32-bit PCs
* Actual available memory may be less.

Video

Integrated ATI Radeon HD 4200 graphics
*Integrated video is not available if a graphics card is installed.
Up to 256MB dedicated memory
Can use both DVI and VGA ports at the same time.

Audio

Integrated Realtec ALC888S Audio
*Integrated audio is not available if a sound card is installed.
Number of channels: 8
Audio CODEC: ALC888S
Maximum bit depth: up to 24-bit
Maximum sample rate: up to 192,000 Hz
Supports one SPDIF digital connection

Networking

LAN: Gigabit 10-Base-GT
Interface: Integrated into motherboard
Technology: Realtek 8111C
Data transfer speeds: up to 10/100/1000 Mb/
Transmission standards: Gigabit 10-Base-GT Ethernet

RAID

Integrated AMD RAID controller

Expansion Slots

One PCI Express x16 (Gen 2.0)
Three PCI-Express x1 (Gen 2.0)
One PCI Express x1 minicard socket (Gen 2.0)

I/O Ports

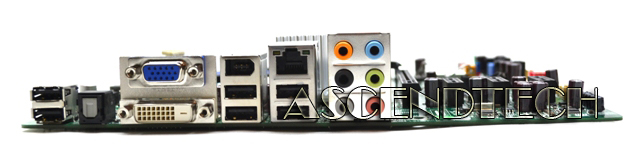

Back I/O ports
Two 1.2 USB 1.1 ports for mouse and keyboard
S/PDIF optical audio port
Video Graphics Adapter port
1394a (FireWire)
RJ45 Network (LAN)
Audio: Center Speaker/Subwoofer out
Audio: Rear Speaker Out
Audio: Line in
Audio: Front speaker/Line out
Audio: Microphone in
Audio: Side speaker out
USB 2.0: 4
DVI-D port.

Internal Connectors

One opt fan connector
One cpu fan connector
Four DDR3-DIMM sockets
One 24-pin ATX power connector
One front panel header
Sata 1.0
Sata 2.0
One clear CMOS jumper
One clear password jumper
Six USB headers
One IEEE-1394 front port
One line-in connector
One front audio connector
One PCI-E x16 connector [J3]
Three PCI-E x1 connectors
One PCI-E Mini-Card connector
One PCI-E Mini-Card LED header
One SPDIF output header
One PC fan connector
One 4-pin ATX power connector
