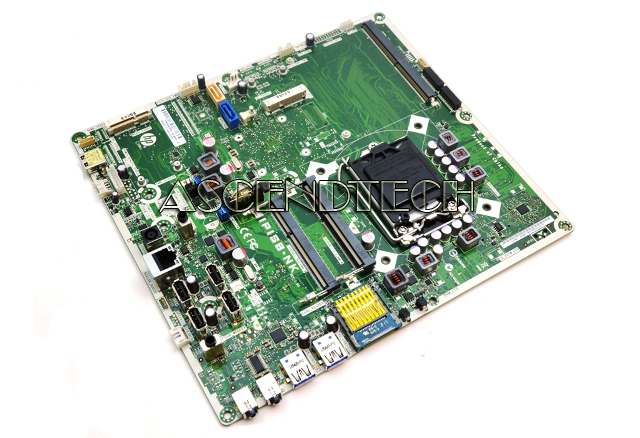

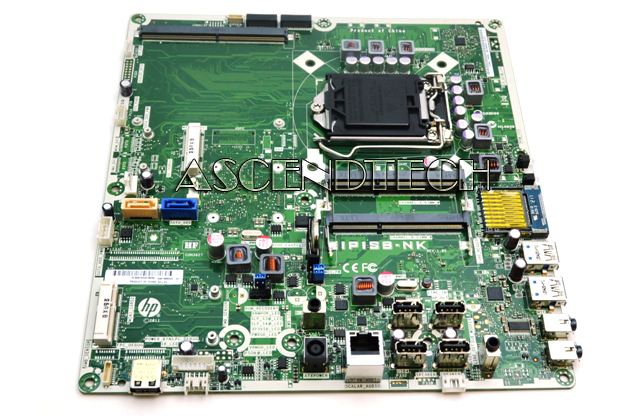

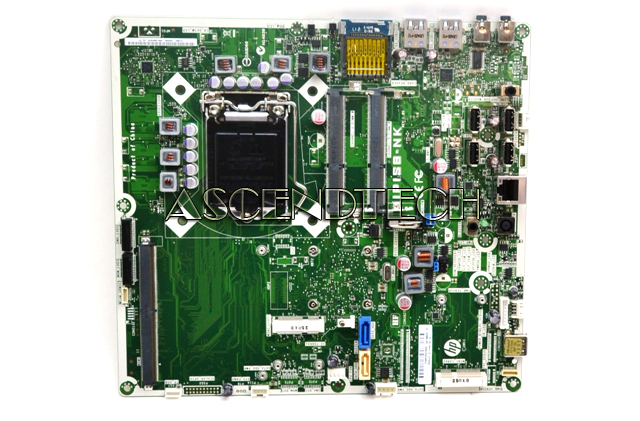

HP Lavaca3-B 688939-001 AIO Motherboard

HP Omni 220 TouchSmart 420 Series Intel H61 Lavaca3-B 688939-001 All In One Motherboard. HP meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

HP Part Number: 688939-001
Compatible Part Numbers: IPISB-NK 69M1Q8R0E06

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!

Compatible Models:
HP Omni CTO 220-1155XT
HP Omni CTO 220-1185QD
HP Omni 220-1110d PC
HP Omni 220-1112in PC
HP Omni 220-1120a PC
HP Omni 220-1124d PC
HP Omni 220-1125d PC
HP Omni 220-1126d PC
HP Omni 220-1127l PC
HP Omni 220-1128hk PC
HP Omni 220-1135a PC
HP Omni 220-1138hk PC
HP Omni 220-1138l PC
HP Omni 220-1140jp Intel (Lavaca3-B) PC
HP Omni 220-1148hk PC
HP Omni 220-1155xt CTO Desktop PC
HP Omni 220-1185qd CTO Desktop PC
HP Omni 220-1220jp Intel (Lavaca3-B) PC
HP TouchSmart 420-1105t (Lavaca3-B) PC US
HP TouchSmart 420-1172la Desktop PC







Specifications:

Chipset
Intel H61

Front-Side Bus Speed
DMI (Direct Media Interface)
5 Gb/s

Processor Upgrade Information
Socket type: LGA 1155

Motherboard supports the following processor upgrades:
Intel Core i3-3xxxT (Ivy Bridge) Dual Core up to 35W
Intel Core i3-3xxx (Ivy Bridge) Dual Core up to 55W
Intel Core i5-3xxxT (Ivy Bridge) Dual Core up to 35W
Intel Core i5-3xxxT (Ivy Bridge) Quad Core up to 45W
Intel Core i5-3xxxS (Ivy Bridge) Quad Core up to 65W
Intel Core i3-2xxx (Sandy Bridge) Dual Core up to 65W
Intel Core i3-2xxxT (Sandy Bridge) Dual Core up to 35W
Intel Pentium G6xx (Sandy Bridge) Dual Core up to 65W
Intel Pentium G6xxT (Sandy Bridge) Dual Core up to 35W
Intel Pentium G8xx (Sandy Bridge) Dual Core up to 65W

Memory Upgrade Information
Dual channel memory architecture
Two DDR3 SO-DIMMs (204-pin) sockets
PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
Non-ECC memory only, unbuffered
Supports 1 GB, 2 GB, 4 GB and 8 GB (8 GB only available on systems using Ivy Bridge processors) DDR3 SO-DIMMs
Supports up to 16 GB on 64-bit PCs (16 GB only available on systems using Ivy Bridge processors)
Supports up to 4 GB on 32-bit PCs

Integrated Video
Integrated Intel HD 2000 graphics (supported by the processor)
One Mobile PCI Express Module (MXM) socket (Generation 2)
MXM 3.0 version: Type A 35W
Shared memory up to 256 MB

Integrated Audio
Audio CODEC: IDT 92HD91
Integrated High Definition audio
Audio CODEC: IDT 92HD91
Supports jack sensing

Integrated Network
LAN: Gigabit 1000-Base-T
Technology: Realtek RTL8111E
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: Gigabit 1000-Base-T Ethernet

Expansion Slots
Two PCI Express x1 mini card sockets (Generation 2 speed)
One PCI Express MXM slot that supports a PCI Express x16 graphics card (Generation 2 speed)

I/O Ports and internal connectors

Side I/O Ports

1 - Audio: Headphone
2 - Audio: Microphone
3 - USB 3.0: 2
4 - Integrated 6-in-1 memory card reader

Back I/O ports

1 - DC power input
2 - Power activity indicator light
3 - IR blaster port (model dependent)
4 - LAN
5 - USB 2.0: 4
6 - Audio: Line-out

Internal Connectors
2x LVDS
2x USB
1x CPU fan
1x System fan
2x SATA 2.0
1x 3-pin power supply
1x IR LEDs
1x ODD eject/LED + power button
1x Backlight control + power header
1x FDO

Form Factor
uAIX 22 cm (8.7 inches) x 24.2 cm (9.5 inches)
