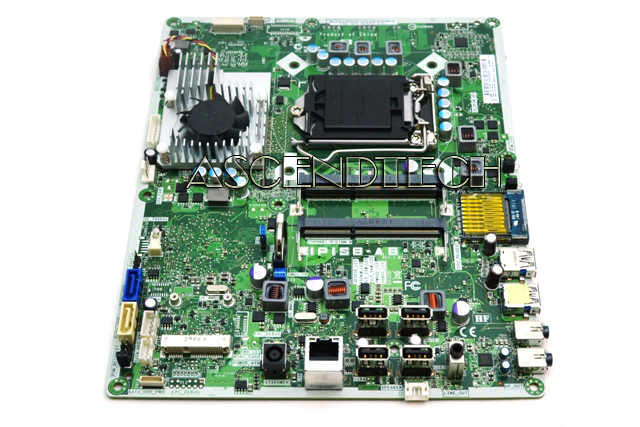

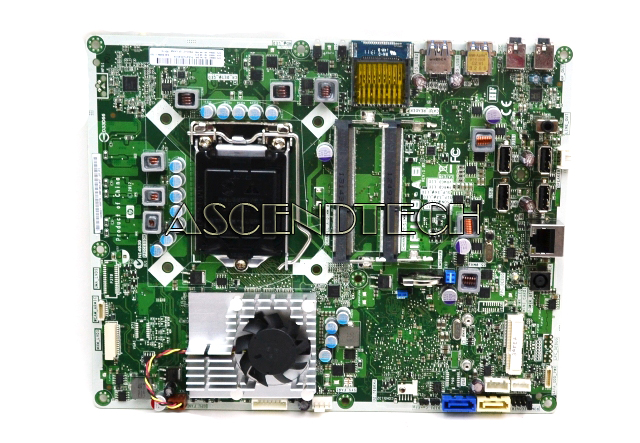

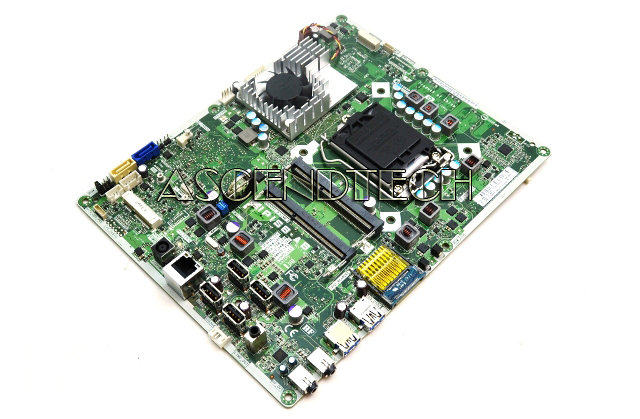

HP Leeds-G 696941-001 AIO Motherboard

HP Pavilion 23-B Series Leeds-G Intel H61 All-In-One Motherboard 696941-001 700544-501 700544-601.

HP Part Number: 696941-001
Compatible Part Numbers: IPISB-AB 700544-501 700544-601 69M10BWL0E07
Compatible Models: HP Pavilion 23-b001cx AiO PC HP Pavilion 23-b010cx AiO PC HP Pavilion 23-b020a AiO PC HP Pavilion 23-b021a AiO PC HP Pavilion 23-b025in AiO PC HP Pavilion 23-b026in AiO PC

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!







Specifications:

Chipset
Intel H61

Front-Side Bus Speed
DMI (Direct Media Interface)
5 Gb/s

Processor Upgrade Information
TDP: up to 65W
Socket type: LGA 1155

Motherboard supports the following processor upgrades:
Intel Celeron G4xx (Sandy Bridge) Single Core up to 35W
Intel Celeron G5xx (Sandy Bridge) Dual Core up to 65W
Intel Pentium G6xx (Sandy Bridge) Dual Core up to 65W
Intel Pentium G8xx (Sandy Bridge) Dual Core up to 65W
Intel Core i3-3xxx (Ivy Bridge) Dual Core up to 55W
Intel Core i3-3xxxT (Ivy Bridge) Dual Core up to 35W
Intel Core i3-2xxx (Sandy Bridge) Dual Core up to 65W
Intel Core i3-2xxxT (Sandy Bridge) Dual Core up to 35W
Intel Core i5-2xxxS (Sandy Bridge) Quad Core up to 65W
Intel Core i7-2xxxS (Sandy Bridge) Quad Core up to 65W

Memory Upgrade Information
Dual channel memory architecture
Two DDR3 SO-DIMMs (200-pin) sockets
PC3-8500 (DDR3-1066)
PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600 - with select Ivy Bridge CPUs only)
Non-ECC memory only, unbuffered
Supports 1 GB, 2 GB and 4 GB DDR3 SO-DIMMs
Supports up to 8 GB on 64-bit PCs
Supports up to 4 GB on 32-bit* PCs
32-bit PCs cannot address a full 4.0 GB of memory.

Integrated Video
NVIDIA GeForce 610
The graphics card is soldered onto the motherboard
Interface: MXM 3.0
Onboard memory: 1 GB

Graphics
Integrated graphics not supported on this motherboard

Integrated audio
Audio CODEC: Realtek ALC269Q-VC
Integrated High Definition Audio supported
Audio CODEC: Realtek ALC269Q-VC

Integrated network
LAN: Gigabit 1000-Base-T
Technology: Realtek RTL8111F
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: Gigabit 1000-Base-T Ethernet
Co-layout support for Realtek RTL8175EH/RTL8105E

Expansion Slots

One PCI Express half-size mini card socket (Gen 2.0)
One PCI Express MXM slot that supports a PCI Express x16 graphics card (Gen 2.0)

I/O Ports and internal connectors

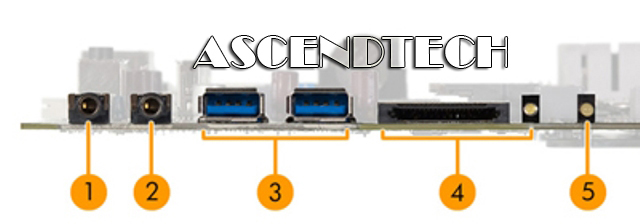

Side I/O Ports




1 - Audio: Headphone
2 - Audio: Microphone
3 - USB 3.0: 2
4 - Integrated 6-in-1 memory card reader and activity indicator
5 - Hard disk drive activity indicator

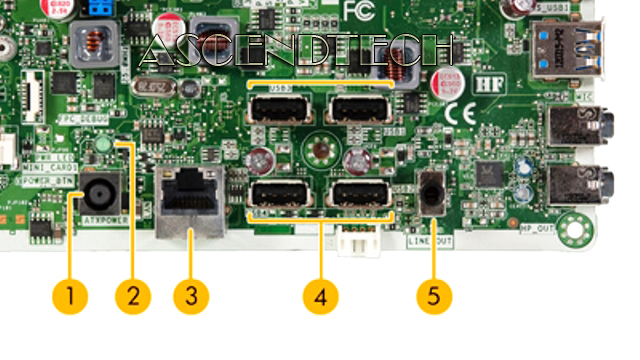

Back I/O ports



1 - DC input power port
2 - Power activity indicator light
3 - LAN
4 - USB 2.0: 4
5 - Audio: Line out

Internal Connectors

1x CPU fan
1x System fan
2x SATA 2.0
2x SATA power
1x 3-pin pwr connector (power input)
1x LVDS
1x ODD eject/LED + power button
1x Backlight control + power
2x Speaker header
1x FDO (HAD-SDO) BT23 jumper
