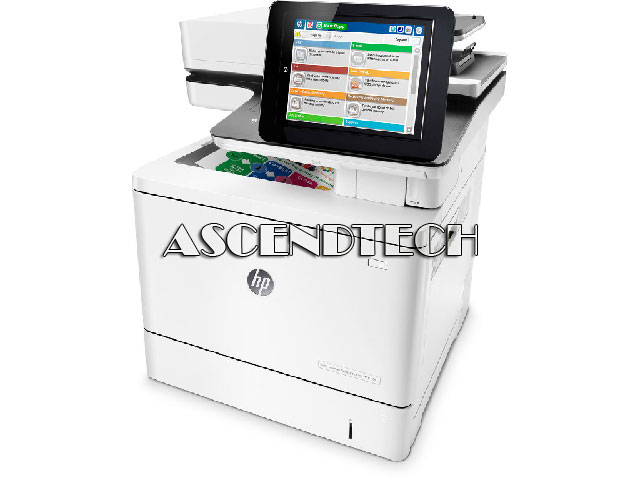

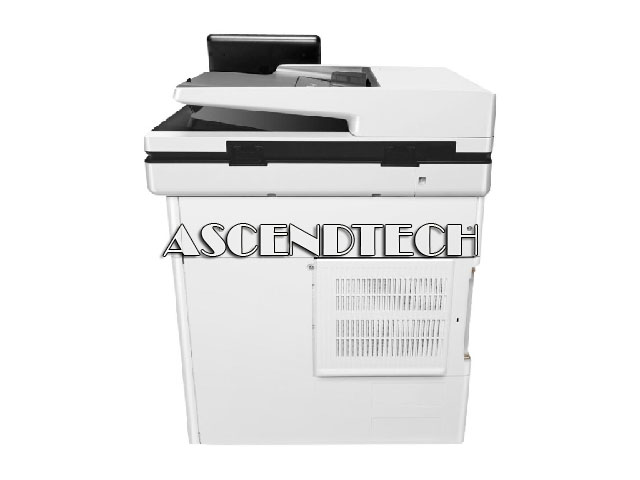

BOISB-1406-01 B5L54A | Hp Mfp M577c Color Laser Printer B5l54a

HP Color Laserjet Enterprise Flow MFP M577c USB Network Workgroup Multifunction Copier Fax Scanner Color Laser Printer B5L54A.

Processor/CPU: 1.2GHz

Max Supported Memory: 3.75GB

Memory Capacity: 1.25GB (printer), 512MB (scanner)

Storage Capacity: 320GB

Maximum Resolution: Up to 600 x 600 dpi (normal), up to 1200 x 1200 dpi (fine lines)

Input/Output Ports: 1x Gigabit/Fast Ethernet 10/100/1000Base-TX network, 1x USB 2.0 Device - 4pin USB Type B, 1x Fax modem RJ-11, 2x USB 2.0 Host - 4 pin USB Type A

Power Input: 110-volt input voltage: 100 to 127 VAC, 60 Hz; 220-volt input voltage: 200 to 240 VAC, 50 Hz

Color: White, Gray

Height: 23.0” (584mm)

Width: 19.0” (482mm)

Depth: 19.8” (504mm)

Weight: 85.1 lbs (38.6kg)

Type: 4-in-1 Multifunction Color Laser Printer

Supported Operating System: Windows OS compatible with In-Box Driver: Windows 10 all 32-bit/64-bit editions (excluding RT OS for tablets), Windows 8/8.1 all 32-bit/64-bit editions (excluding RT OS for tablets), Windows 7 all 32-bit/64-bit editions, Windows Vista all 32-bit editions (Home Basic, Premium, Professional, etc.). Windows OS compatible with Universal Print Driver (from HP.com): Windows 10 all 32-bit/64-bit editions (excluding RT OS for tablets), Windows 8/8.1 all 32-bit/64-bit editions (excluding RT OS for tablets), Windows 7 all 32-bit/64-bit editions, Windows Vista all 32-bit/64-bit editions (Home Basic, Premium, Professional, etc.). Mac OS (HP print drivers available from HP.com and Apple Store): OS X 10.8 Mountain Lion, OS X 10.9 Mavericks, OS X 10.10 Yosemite. Mobile OS (In-OS drivers): iOS, Android, Windows 8/8.1/10 RT. Linux OS (In-OS HPLIP): SUSE Linux (12.2, 12.3, 13.1), Fedora (17, 18, 19, 20), Linux Mint (13, 14, 15, 16, 17), Boss (3.0, 5.0), Ubuntu (10.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10), Debian (6.0.x, 7.x)

Features: 1x Power Cord; 1x Fax Cable; 1x Software CD; 1x Quick Start Guide; 1x Label-Bundle Keyboard Overlay; 4x Toner Cartridges: Black (M#: 508A, P/N: CF360A), Cyan (M#: 508A, P/N: CF361A), Yellow (M#: 508A, P/N: CF362A), Magenta (M#: 508A, P/N: CF363A); 1x Toner Collection Unit (P/N: RU7-8014); 1x Fuser (P/N: RM2-0011); 1x Secondary Transfer Roller Assembly (P/N: RM2-0022)

Additional Features :

Internal Storage:
Standard, embedded HP High-Performance Secure Hard Disk
AES 256 hardware encryption or greater
Secure erase capabilities (Secure File Erase-Temporary Job Files, Secure Erase-Job Data, Secure ATA Erase-Disk)

Printer specifications:

Print speed (Mono / Color):
(600 x 600 dpi)
Simplex: Up to 38 ppm mono/color (letter)
Duplex: Up to 38 ppm mono/color (letter)
First page out time:
Black: As fast as 5.9 sec
Color: As fast as 6.9 sec
Operation panel: 8" (20.3 cm) color touchscreen
Print quality color (best): HP ImageREt 3600
Print Resolution Technologies: HP ImageREt 3600, Pantone Calibrated
Print language:
XPS
HP PCL 6; HP PCL 5c; HP postscript level 3 emulation
native PDF printing (v 1.7)
Automatic paper sensor: Yes
Mobile Printing Capability: HP ePrint, Apple AirPrint, Mopria-certified, Google Cloud Print 2.0
Usage Rate:
Duty Cycle: Up to 80,000 pages per month
Recommended monthly print volume: 2,000 to 7,500 pages per month

Scan Specifications:

Scan type: Flatbed, ADF (two-sided, single-pass)
Scan file format:
Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A, TEXT (OCR), Unicode TEXT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR);
Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A, TEXT (OCR), Unicode TEXT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR);
Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)
Scan resolution, optical: Up to 600 dpi
Scan size, maximum: 216 x 356 mm
Scan size (ADF), maximum: 216 x 356 mm
Scan size (ADF), minimum: 105 x 127 mm
Scan speed (normal, A4): Up to 45 ppm/64 ipm (monochrome), up to 45 ppm/58 ipm (colour)
Recommended monthly scan volume: 8,350 to 13,900
Duplex ADF scanning: Yes
Automatic document feeder capacity: Standard, 100 sheets
Digital sending standard features
Scan to Email; Save-to-Network Folder; Save-to-USB drive; Send to Sharepoint; Send to FTP; Send to LAN Fax; Send to Internet Fax; OCR; Local Address Book; SMTP over SSL; Blank Page Removal; Edge Erase; Auto Colour Sense; Auto Crop To Content; Compact PDF; Auto Tonescale; Auto Orientation; Multi-Pick Detect; Auto Straighten; Auto Crop To Page
File Format Supported
Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A, TEXT (OCR), Unicode TEXT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR)
Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A, TEXT (OCR), Unicode TEXT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR)
Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)
Scan input modes
Front panel applications: Copy, Email, Fax, Save to Network Folder, Save to USB, Save to Device Memory, Save to SharePoint, Open Extensibility Platform (OXP) applications

Copy Specifications:

Copy speed (normal)
Black: Up to 38 cpm
Color: Up to 38 cpm
Copy resolution (black text): Up to 600 x 600 dpi
Copy resolution (color text and graphics): Up to 600 x 600 dpi
Copy reduce / enlarge settings: 25 to 400%
Copies, maximum: Up to 9,999 copies

Fax Specifications:

Fax transmission speed: 3 sec per page
Speed dial, Maximum Number: Up to 1,000 numbers (each with 210 destinations)
Fax Resolution Black (best): Up to 300 x 300 dpi (400 x 400 dpi for received faxes only)
Fax Broadcast Locations: 210

Paper Handling:

Paper handling input, standard:
100-sheet multipurpose tray
550-sheet input Tray 2
Paper handling input, optional:
550-sheet media input Tray 3
550-sheet media input Tray 4
550-sheet media input Tray 5
Paper handling output, standard:
250-sheet output bin
convenience stapler
Maximum output capacity (sheets)
Up to 250 sheets
Duplex printing:
Automatic (standard)

Media sizes supported
Tray 1: A4, RA4, A5, B5 (JIS), B6 (JIS), 10 x 15 cm, A6, envelopes (B5, C5 ISO, C6, DL ISO)
Custom: 76 x 127 to 216 x 356 mm
Tray 2: A4, A5, B5 (JIS), B6 (JIS), 10 x 15 cm, A6
Custom: 102 x 148 to 216 x 297 mm
Optional Trays 3+: A4, RA4, A5, B5 (JIS)
Custom: 102 x 148 to 216 x 356 mm
Media sizes, custom
Tray 1: 76 x 127 to 216 x 356 mm
Tray 2: 102 x 148 to 216 x 297 mm
Optional Trays 3+: 102 x 148 to 216 x 356 mm
Media types
Paper (plain, light, bond, recycled, mid-weight, heavy, mid-weight glossy, heavy glossy, extra heavy, extra heavy glossy, cardstock, card glossy), colour transparency, labels, letterhead, envelope, preprinted, prepunched, coloured, rough, opaque film, user-defined
Media weight, supported
Tray 1: 60 to 220 g/m² (plain paper), 105 to 220 g/m² (glossy paper);
Tray 2: 60 to 220 g/m² (plain paper), 105 to 220 g/m² (glossy paper);
Optional Trays 3+: 60 to 220 g/m² (plain paper), 105 to 220 g/m² (glossy paper);
Automatic Duplexer: 60 to 163 g/m²
Media weights, supported ADF: 45 to 199 g/m²

Physical Specifications:

Shipping dimensions: (W x D x H) 29.7” x 23.6” x 25.6” (754mm x 600mm x 650mm)
Shipping weight: 99.21 lbs (45.0 kg)
Operating Environment: 41ºF to 90ºF (5 ºC to 32 ºC); Relative Humidity: 15% to 85% RH, non-condensing

Power Specifications:

Power consumption: 592 watts (printing), 47.3 watts (ready), 3.48 watts (sleep), 0.08 watts (auto-off/manual on), 0.49 watts (Auto-Off/Auto-On/Wake on LAN)
Energy efficiency
ENERGY STAR
EPEAT Silver
CECP
Blue Angel compliant:
No
Please refer to the ECI document
Operating temperature range: 15 to 30ºC
Recommended operating humidity range: 30 to 70% RH
Acoustic power emissions (ready): 4.7 B(A)
Acoustic pressure emissions bystander (active, printing): 51 dB(A) (printing at 38 ppm)

HP MFP M577c Color Laser Printer B5L54A
