HP Omen 16-B Motherboard M62249-001

  Enlarge

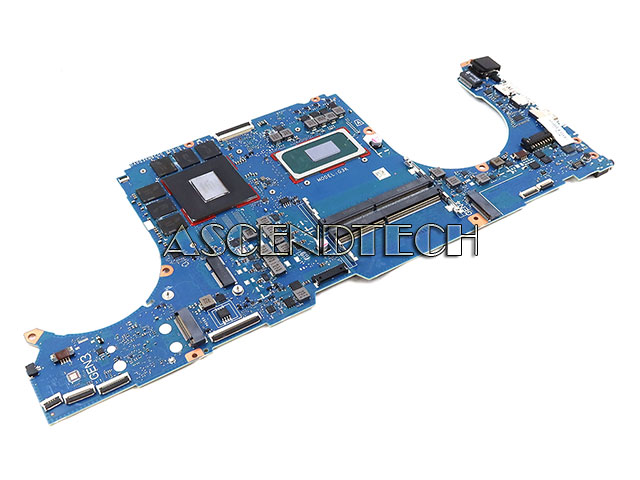

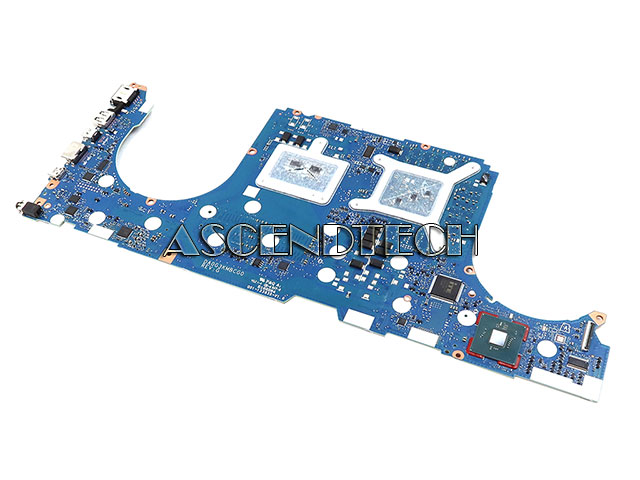

Hp Omen 16-B Motherboard M62249-001
Hp Omen 16-B Motherboard M62249-001
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item CodeMBLTPM62249001A
BrandHp / Compaq - Hewlett-Packard
ModelG3K
Part NumberM62249-001 M62249-501 M62249-601
Compatible Part NumbersDA0G3KMBCG0 DAG3KMB2CA0 DA0G3KMBCF0
Compatible ModelsHP Omen 16-B (16-B0504LA 16-B0007TX 16-B0055TX 16-B0056TX 16-B0057TX 16-B0058TX 16-B0064TX 16-B0067TX 16-B0073TX 16-B0079TX 16-B0092TX 16-B0104TX 16-B0105TX 16-B0118TX 16-B0130TX 16-B0133TX 16-B0147TX 16-B0148TX 16-B0151TX 16-B0158TX 16-B0159TX 16-B0167TX 16-B0176TX 16-B0181TX 16-B0234TX 16-B0334TX 16-B0360TX 16-B0666TX 16-B0008CA 16-B0010CA 16-B0013DX 16-B0014NR 16-B0500LA 16-B0501LA) 16T-B (16T-B000) Series
CategoryLaptop Motherboards
ConditionLike New Grade A

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships

Description

HP Omen 16-B 16T-B Series Intel Core i7-11800H 2.3GHz SRKT3 Processor nVidia GeForce RTX3060 6GB GDDR6 Laptop Motherboard M62249-001 M62249-501 M62249-601.

Chipset: Intel HM570 (SRKMA)
Processor/CPU: Intel Core i7-11800H (SRKT3)
Processor/CPU Speed: 2.30GHz (4.60GHz Max Turbo)
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Speed: 2933MHz, 3200MHz
Video Chipset/GPU Model: nVidia GeForce RTX 3060 (GN20-E3-A1)
Graphics Memory: 6GB GDDR6 (IYA77 D9WCW, IZA77 D9WCW, H56C8H24AIR S2C 123A, 0AA77 D9WCW, K4Z80325BC-HC14)
Type: Laptop Motherboard

Please Note: Motherboards are part number specific. You must search by the exact part number of the motherboard you are replacing. The manufacturer part number of the original motherboard has to be an exact match to one you are buying or listed under the list of compatible part numbers, otherwise it may be different and may not work. Buying a matching part number is required in order to avoid returns, delays and lost shipping fees. You can NOT go by the model or serial number of the system alone! We obtain cross reference and compatibility information from the manufacturer (as well as various other sources) and while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your system manufacturer. Please order based on the part number only!
