HP Pavilion 23-Q Display Assy 745419-001

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

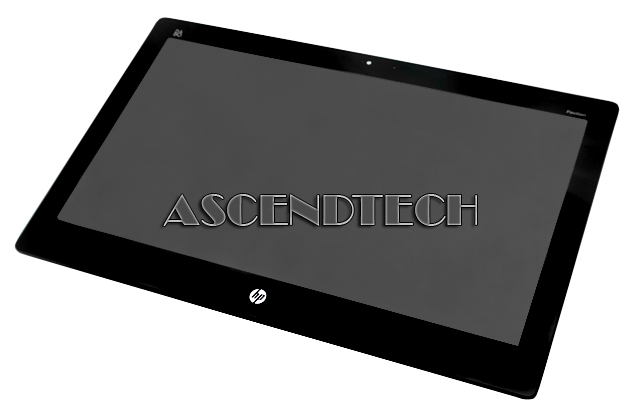

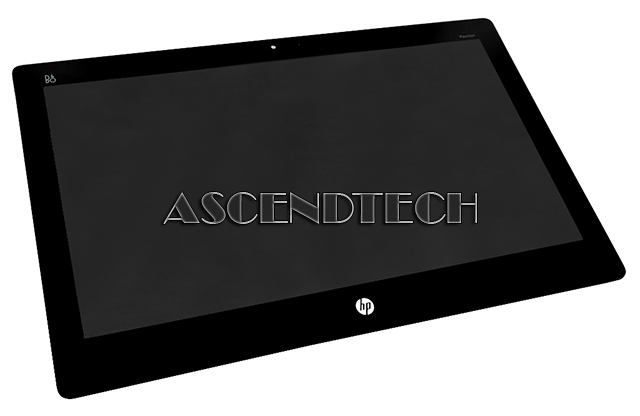

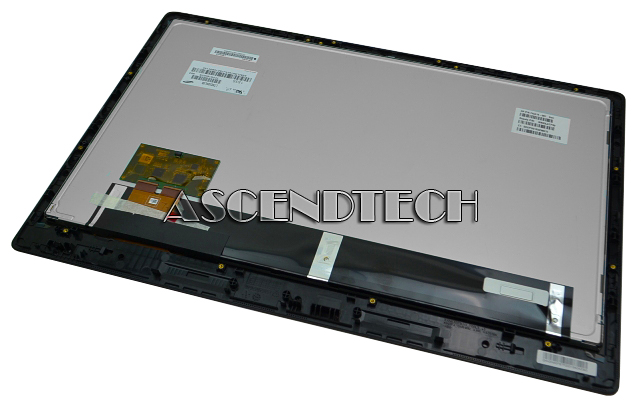

Hp Pavilion 23-Q Display Assy 745419-001. Model: Ltm230hl08
  Enlarge
Hp Pavilion 23-Q Display Assy 745419-001. Model: Ltm230hl08
Hp Pavilion 23-Q Display Assy 745419-001. Model: Ltm230hl08
Hp Pavilion 23-Q Display Assy 745419-001. Model: Ltm230hl08
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LCDHP27QB745419
Brand Hp / Compaq - Hewlett-Packard
Model LTM230HL08
Category Aio / All In One Lcd Display Panels
Condition Like New Grade A
Condition Description Please note, this screen was pulled out of brand new desktop and is in excellent cosmetic condition with no scratches on the LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Comes with Touch Control Board.

Description

HP Pavilion TouchSmart 23-Q Series 23" Samsung LTM230HL08 HD 1920x1080 LCD Touchscreen Assembly 745419-001. This LCD assembly has the Bang & Olufsen Audio logo and is designed for the HP Pavilion 23-Q Series with Touchscreen compatibility.

HP Part Number: 745419-001
Samsung LCD Model Number: LTM230HL08
HP Touch Control Board Part Number: 02960N001A
Compatible Models: HP Pavilion TouchSmart 23-Q100: 23-q107na 23-q110ng 23-q131 23-q190nd 23-q190nl 23-q199na 23-q100ne 23-q100ni 23-q100nk 23-q100nt 23-q100nv 23-q101a 23-q101na 23-q101ne 23-q101nh 23-q101nk 23-q101nt 23-q102a 23-q102nt 23-q103a 23-q103na 23-q103nf 23-q103nt 23-q103nv 23-q103nx 23-q103ny 23-q104a 23-q104ng 23-q104nh 23-q105a 23-q105nf 23-q105ng 23-q105nh 23-q105nx 23-q106a 23-q106ns 23-q107a 23-q107ny 23-q108a 23-q109nb 23-q109nf 23-q110 23-q110a 23-q110na 23-q111 23-q111na 23-q111ns 23-q111ur 23-q112 23-q112ur 23-q113d 23-q113np 23-q113w 23-q114 23-q114d 23-q119nf 23-q120 23-q121ur 23-q122d 23-q123d 23-q125na 23-q127c 23-q129 23-q130d 23-q133d 23-q134d 23-q135na 23-q137c 23-q137d 23-q140 23-q141in 23-q142in 23-q143d 23-q143la 23-q144d 23-q144la 23-q145d 23-q145la 23-q147d 23-q149c 23-q150 23-q150hk 23-q151 23-q151la 23-q152d 23-q152la 23-q152m 23-q153d 23-q153la 23-q154la 23-q155na 23-q158la 23-q160xt 23-q163d 23-q164d 23-q165hk 23-q167d 23-q168d 23-q170d 23-q170se 23-q171d 23-q180st 23-q185hk HP Pavilion TouchSmart 23-Q200: 23-q200na 23-q201nf 23-q201np 23-q202nl 23-q202nq 23-q204nh 23-q205nh 23-q206ns 23-q207nf 23-q209nb 23-q211ns 23-q212nf 23-q213ur 23-q221nz 23-q222ur 23-q230na 23-q234na 23-q252ng 23-q259na 23-q275na 23-q285hk HP Pavilion 23-q2001br 23-q200ne 23-q200nj 23-q200nk 23-q202nf 23-q202nk 23-q203nf 23-q210in 23-q210ur 23-q211in 23-q211ur 23-q214 23-q220 23-q220ur 23-q227c 23-q235na 23-q242 23-q250no 23-q251 23-q252 23-q255kr 23-q255na








Specifications:

Active Screen Size 23 inches
Pixel Format 1920×1080 (RGB) [FHD]
Active Area 509.184(H)×286.416(V) mm
Bezel Area 513.8(H)×291.0(V) mm
Luminance 250 cd/m² (Typ.)
View Direction Symmetry
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Support Color 16.7M 72% (CIE1931)
Type a-Si TFT-LCD , LCM
Configuration RGB Vertical Stripe
Outline Dim. 533.2(H)×312(V) ×11(D) mm
Treatment Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 12ms (Typ.)(G to G)
Operating Mode PLS, Normally Black, Transmissive
Refresh Rate 60Hz
