HP Pavilion 23-Q Display Assy 816331-002

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

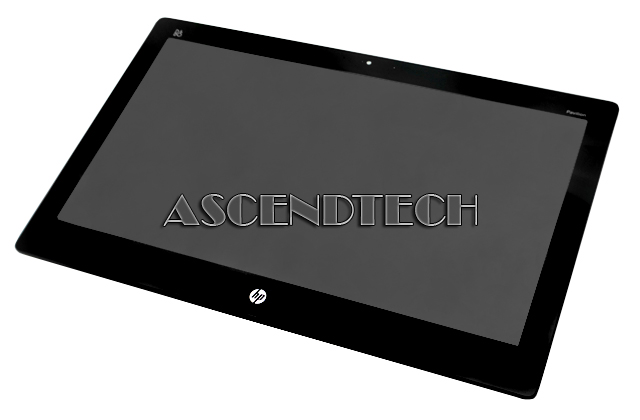

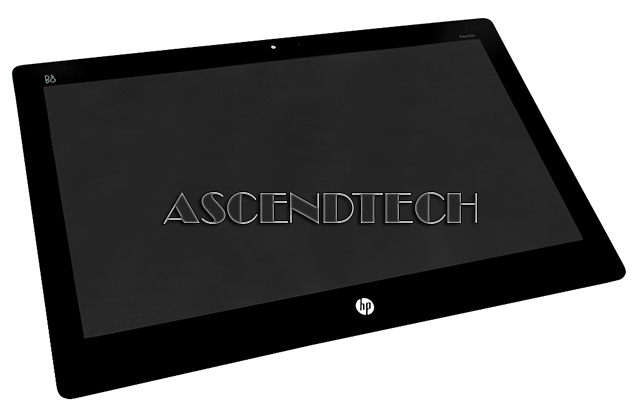

Hp Pavilion 23-Q Display Assy 816331-002. Model: 816331-002 Lm230wf3(Slp1)
  Enlarge
Hp Pavilion 23-Q Display Assy 816331-002. Model: 816331-002 Lm230wf3(Slp1)
Hp Pavilion 23-Q Display Assy 816331-002. Model: 816331-002 Lm230wf3(Slp1)
Hp Pavilion 23-Q Display Assy 816331-002. Model: 816331-002 Lm230wf3(Slp1)
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LCDHP23Q816331C
Brand Hp / Compaq - Hewlett-Packard
Model 816331-002 LM230WF3(SLP1)
Category Aio / All In One Lcd Display Panels
Condition Like New Grade A

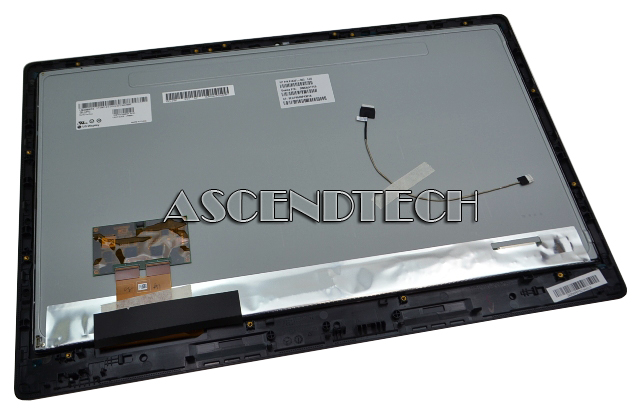

Condition Description Please note, this screen was pulled out of brand new HP desktop and is in excellent cosmetic condition with no scratches on LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! The HP DD0N63TH100 backlight cable and Touch Control Board are also included. Please see our images.

Description

HP Pavilion 23-Q Series 23" HD 1920x1080 LCD Digitizer Glass Touch Control Board 02960N001A LG LM230WF3(SL)(P1) Touchscreen Display Assembly 816331-002. This LCD assembly has the Bang & Olufsen Audio logo and is designed for the HP Pavilion 23-Q Series with touchscreen compatibility. The HP DD0N63TH100 backlight cable is also included.

HP Part Number: 816331-002
HP Model Name: Marcus
LG LCD Part Number: LM230WF3(SL)(P1)
HP Backlight Cable Part Number: DD0N63TH100
HP Touch Control Board Part Number: 02960N001A
Compatible Models: HP PAVILION AIO 23-q009 23-q010 23-q014 23-q014LD 23-q019 23-q020 23-q029q 23-q030q 23-q037Cq 23-q041q 23-q052M 23-q052M 23-q050Z 23-q060XT 23-q012 23-q067C 23-q070SE 23-q050Z 23-q060XT 23-q152M23-q113W 23-q110 23-q112 23-q114 23-q127C 23-q129 23-q150Z 23-q160XT 23-q160XT  23-q170SE 23-q170SE  23-q180ST 23-q109 23-q111 23-q118 23-q119 23-q120 23-q137C 23-q140 23-q149C 23-q151 PC 23-q152M  PC23-q131 23-q001la 23-q002la 23-q008la 23-q015la 23-q018 23-q025la 23-q034la 23-q035la 23-q133w 23-q140la 23-q141 23-q143la 23-q144la 23-q145la 23-q146la 23-q147c 23-q147la 23-q148la 23-q151la 23-q152la 23-q153la 23-q154la 23-q155la 23-q158la 23-q180st 23-q150z







Specifications:

Active Screen Size 23 inches
Pixel Format 1920×1080 (RGB) [FHD]
Active Area 509.184(H)×286.416(V) mm
Outline Dim. 533.2(H)×312(V) ×11(D) mm
Bezel Area 513.8(H)×291.0(V) mm
Luminance 300 cd/m² (Typ.)
View Direction Symmetry
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Color 16.7M 72% (CIE1931)
Type a-Si TFT-LCD , LCM
Configuration RGB Vertical Stripe
Outline Dim. 533.2(H)×312(V) ×11(D) mm
Surface Antiglare, Hard coating (3H)
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 14ms (Typ.)(G to G)
Color 16.7M 72% (CIE1931)
Lamp Type 17S2P WLED
Operating Mode IPS, Normally Black, Transmissive
Refresh Rate 60Hz
