HP Pavilion 24-B Display Assy 801615-001

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Hp Pavilion 24-B Display Assy 801615-001. Model: 801615-001 Lm238wf1(Sle1)
  Enlarge
Hp Pavilion 24-B Display Assy 801615-001. Model: 801615-001 Lm238wf1(Sle1)
Hp Pavilion 24-B Display Assy 801615-001. Model: 801615-001 Lm238wf1(Sle1)
Hp Pavilion 24-B Display Assy 801615-001. Model: 801615-001 Lm238wf1(Sle1)
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LCDHP24B8016151
Brand Hp / Compaq - Hewlett-Packard
Model 801615-001 LM238WF1(SLE1)
Category Aio / All In One Lcd Display Panels
Condition Like New Grade A
Condition Description Please note, this screen was pulled out of brand new HP desktop and is in excellent cosmetic condition with no scratches on LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Comes with Touch Control Board. Please see our images.

Description

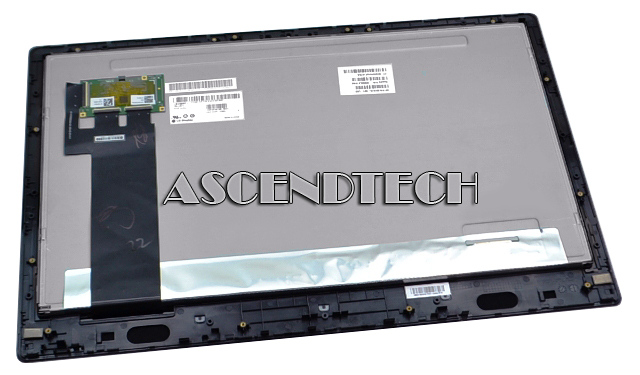

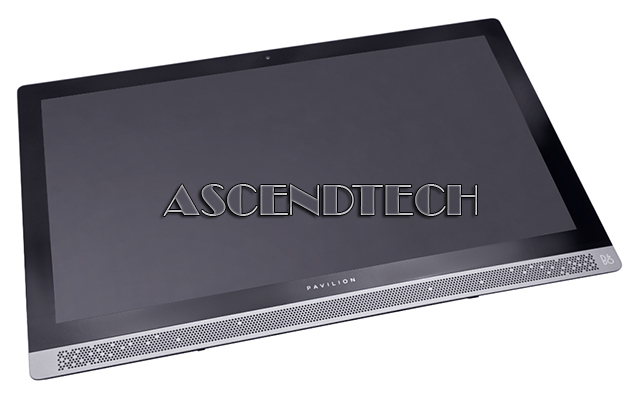

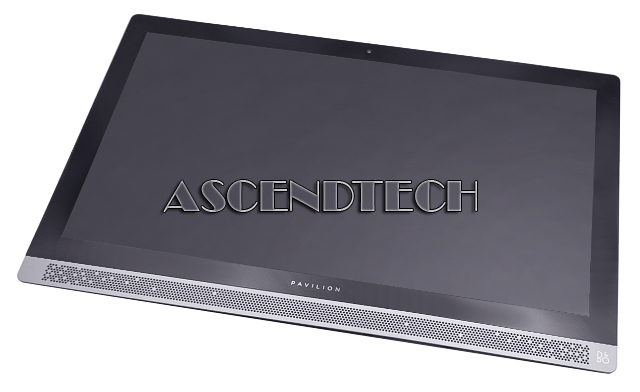

HP Pavilion AIO 24-B Series 23.8" 1920x1080 3D Module NZBD WLED LCD Touchscreen Display Panel Assembly 801615-001 LG LM238WF1(SL)(E1). This LCD assembly is designed for the HP Pavilion 24-B Series. This display panel includes the bottom B&o labeled stereo speaker panel, but not the speaker units. Touch Control Board is included with no other accessories.

HP Screen Assembly Part Number: 801615-001
HP Model Name: Fangio23
LG LCD Part Number: LM238WF1(SL)(E1)
Compatible Models: HP Pavilion AIO 24-b010 24-b016 24-b016A 24-b016A 24-b017C 24-b020T 24-b021 24-b027C 24-b029C 24-b030 24-b037C 24-b050SE 24-b114 24-b230XT 24-b109Nb 24-b110D 24-b214 24-b217D 24-b267C 24-b267C







Specifications:

Panel Size 23.8 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1920×1080, (RGB) FHD
Pixel Format RGB Vertical Stripe
Display Area 527.04(W)×296.46(H) mm
Bezel Opening 530.2(W)×299.6(H) mm
Outline Size 543(W)×317.4(H) ×11.7(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode IPS, Normally Black, Transmissive
Response Time 14 (Typ.)(G to G)
Display Colors 16.7M 72% (CIE1931)
Lamp Type 18S3P WLED
Refresh Rate 60Hz
