HP Pavilion 24-B Display Assy 863833-001

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Hp Pavilion 24-B Display Assy 863833-001. Model: 863833-001 M238han01.0
  Enlarge
Hp Pavilion 24-B Display Assy 863833-001. Model: 863833-001 M238han01.0
Hp Pavilion 24-B Display Assy 863833-001. Model: 863833-001 M238han01.0
Hp Pavilion 24-B Display Assy 863833-001. Model: 863833-001 M238han01.0

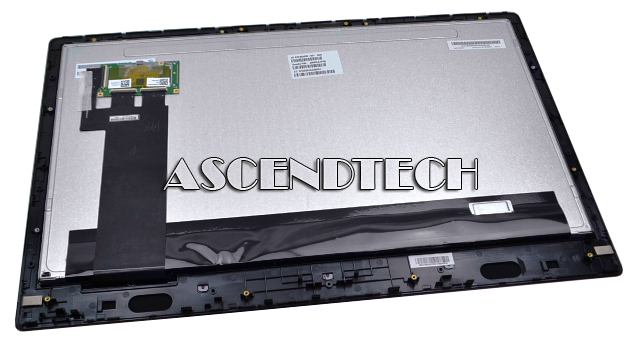

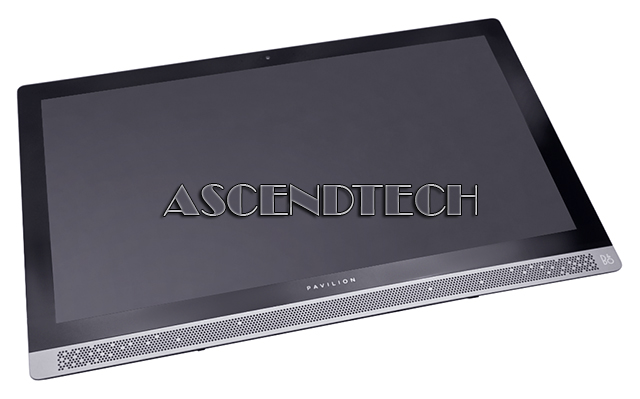

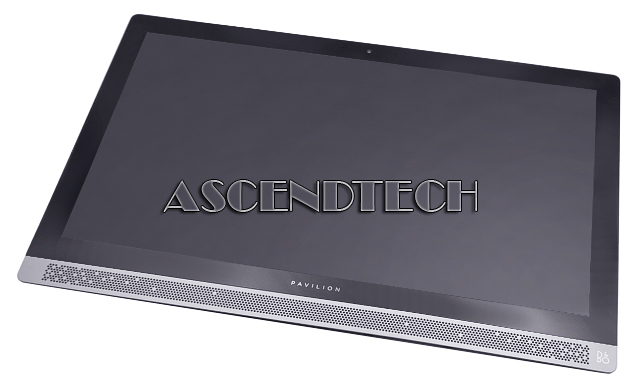

*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LCDHP24B8638331
Brand Hp / Compaq - Hewlett-Packard
Model 863833-001 M238HAN01.0
Category Aio / All In One Lcd Display Panels
Condition Like New Grade A
Condition Description Please note, this screen was pulled out of brand new HP desktop and is in excellent cosmetic condition with no scratches on LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Please see our images.

Description

HP Pavilion 24-B AIO Series 23.8" 1920x1080 WLED LCD AU Optronics M238HAN01.0 Touchscreen Display Panel Assembly 863833-001. This LCD assembly is designed for the HP Pavilion 24-a029c and 24-B series. This display panel includes the bottom B&o labeled stereo speaker panel, but not the speaker units.

HP Screen Assembly Part Number: 863833-001
HP Model Name: Fangio23
AU Optronics LCD Part Number: M238HAN01.0
Compatible Models: HP Pavilion All-in-One 24-A029C 24-B009 24-B010 24-B010Z 24-B012 24-B019 24-B021 24-B030 24-B030XT 24-B037C 24-B040QE 24-B050SE 24-B109 24-B114 24-B214 ALL 24-B217C 24-B223W 24-B227C 24-B229C 24-B230 24-B230XT 24-B237C 24-B239 24-B240 24-B240QE 24-B247C 24-B250SE 24-B259 24-B267C 24-b003la 24-b005la 24-b007la 24-b009la 24-b010a 24-b010la 24-b011a 24-b011la 24-b012a 24-b012la 24-b013a 24-b013la 24-b014a 24-b014la 24-b015a 24-b016a 24-b017a 24-b103la 24-b104la 24-b104tla 24-b204la 24-b205la 24-b206la 24-b207la 24-b210la 24-b211la 24-b213la 24-b215la 24-b216la 24-b217la 24-b219la 24-b222la 24-b224la







Specifications:

Screen Size 23.8 inch Screen
Type LCM, a-Si TFT-LCD
Pixel Number 1920×1080 (RGB)(FHD)
Arrangement RGB Vertical Stripe
Active Area(mm) 527.04 × 296.46 (H×V)
Outline(mm) 543 × 317.4 × 11.2 (H×V×D)
Bezel Area(mm) 530.2 × 299.6 (H×V)
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Response 14ms (Typ.)(G to G)
Good View at Symmetry
Work Mode AHVA, Normally Black, Transmissive
Color Depth 16.7M 72% (CIE1931)
Backlight 4 strings WLED
Refresh Rate 60Hz
Assembly Frame Color Black bezel with Silver Sound Panel B&o logo
