HP Pavilion 24-B Display Assy 863833-006

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Hp Pavilion 24-B Display Assy 863833-006. Model: 863833-006 Lm238wf1(Slk1)
  Enlarge
Hp Pavilion 24-B Display Assy 863833-006. Model: 863833-006 Lm238wf1(Slk1)
Hp Pavilion 24-B Display Assy 863833-006. Model: 863833-006 Lm238wf1(Slk1)
Hp Pavilion 24-B Display Assy 863833-006. Model: 863833-006 Lm238wf1(Slk1)
Hp Pavilion 24-B Display Assy 863833-006. Model: 863833-006 Lm238wf1(Slk1)

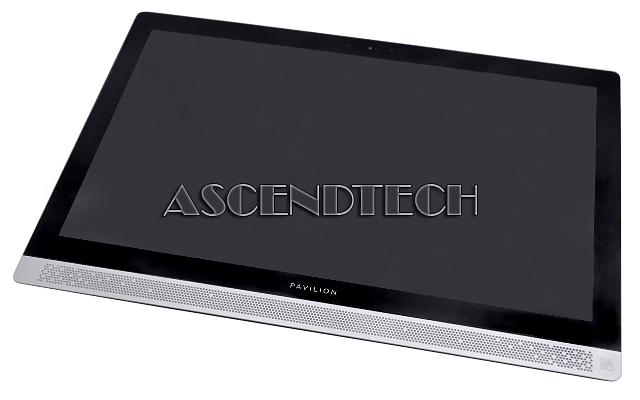

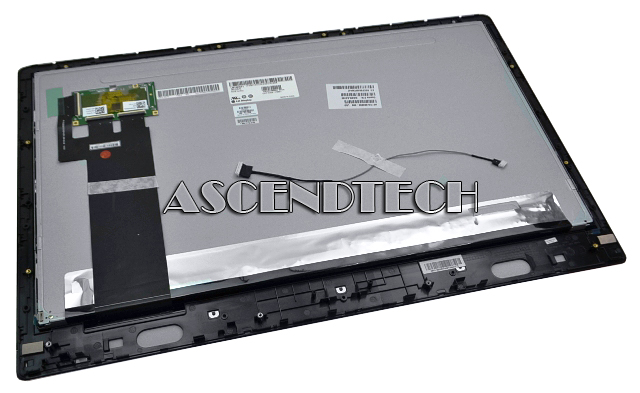

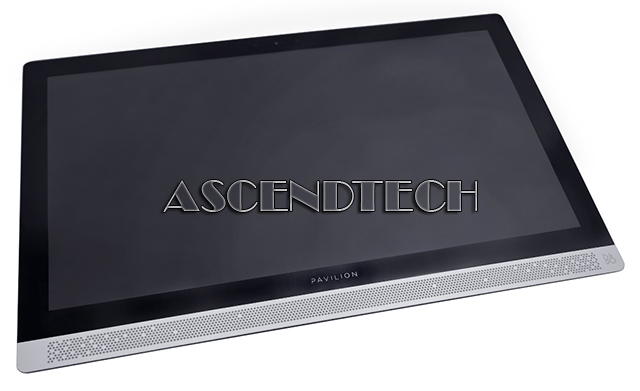

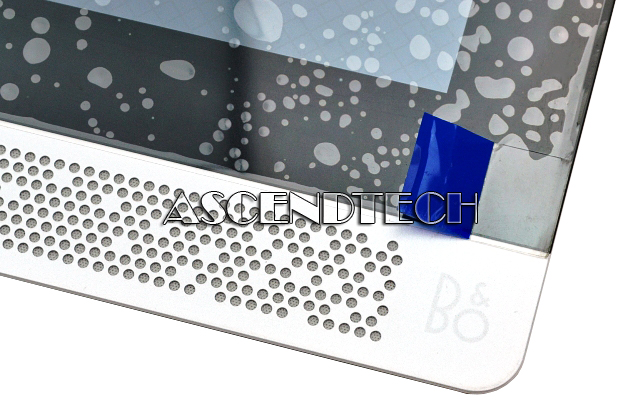

*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LCDHP24B8638336
Brand Hp / Compaq - Hewlett-Packard
Model 863833-006 LM238WF1(SLK1)
Category Aio / All In One Lcd Display Panels
Condition Like New Grade A
Condition Description Please note, this screen was pulled out of brand new HP desktop and is in excellent cosmetic condition with no scratches on LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Please see our images.

Description

HP Pavilion 24-B200 Series 23.8" FHD 1920x1080 LCD Digitizer Glass Touch Control Board LG LM238WF1(SL)(K1) White Touchscreen Display Assembly 863833-006. This LCD assembly has the white Bang & Olufsen Audio sound bar and is designed for the HP Pavilion 23-B Series with touchscreen compatibility. The HP DD0N83TH002 backlight cable is also included. No speaker units or other accessories.

HP Part Number: 863833-006
HP Model Name: Fangio23
LG LCD Part Number: LM238WF1(SL)(K1)
HP Backlight Cable Part Number: DD0N83TH002
Compatible Models: HP Pavilion All-in-One 24-b200nf 24-b201nf 24-b205nv 24-b206nv 24-b207nf 24-b209no 24-b225na 24-b229na 24-b231nh 24-b243na 24-b255na 24-b259na 24-b275na 24-b279na 24-b295na 24-b299na 24-b202nv 24-b209na 24-b212na 24-b212no







Specifications:

Model LM238WF1-SLK1
Diagonal Size 23.8 inch
Type a-Si TFT-LCD , LCM
Pixel Format 1920×1080 (RGB) [FHD]
Configuration RGB Vertical Stripe
Active Area 527.04(H)×296.46(V) mm
Outline Dim. 543(H)×317.4(V) ×11.7(D) mm
Bezel Area 530.2(H)×299.6(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 14ms (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode IPS, Normally Black, Transmissive
Color 16.7M 72% (CIE1931)
Light Source WLED [18S2P]
Refresh Rate 60Hz
