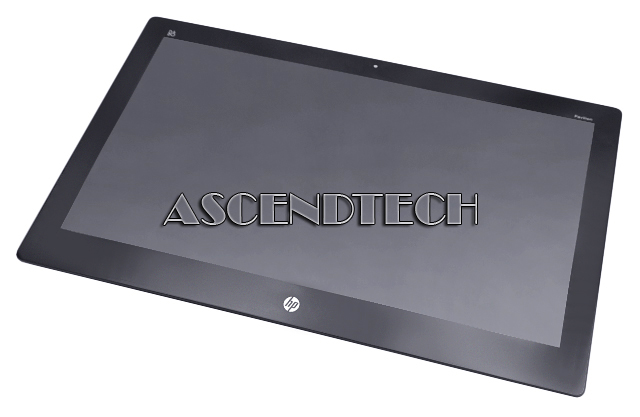

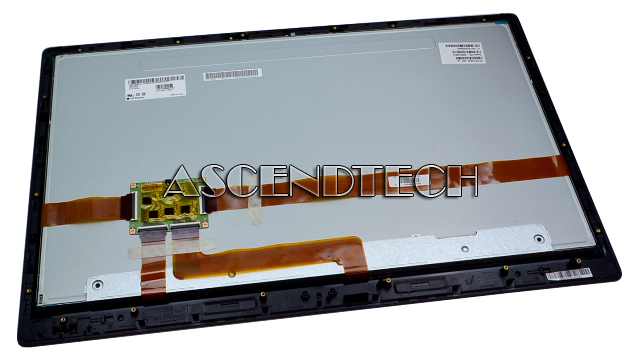

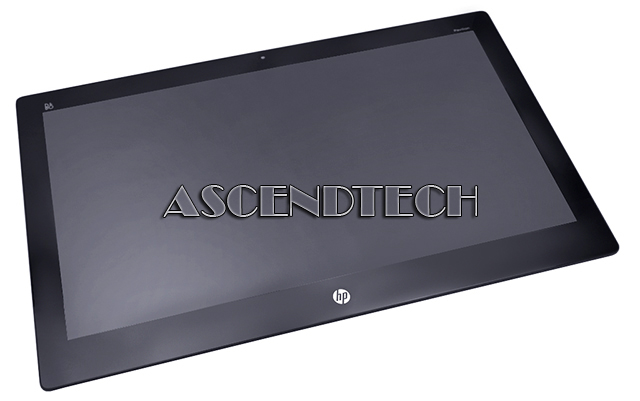

HP Pavilion 27-N Display Assy 712648-002

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Hp Pavilion 27-N Display Assy 712648-002. Model: 712648-002 Lm270wf5(Sln2)
  Enlarge
Hp Pavilion 27-N Display Assy 712648-002. Model: 712648-002 Lm270wf5(Sln2)
Hp Pavilion 27-N Display Assy 712648-002. Model: 712648-002 Lm270wf5(Sln2)
Hp Pavilion 27-N Display Assy 712648-002. Model: 712648-002 Lm270wf5(Sln2)
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LCDHP27N7126482
Brand Hp / Compaq - Hewlett-Packard
Model 712648-002 LM270WF5(SLN2)
Category Aio / All In One Lcd Display Panels
Condition Like New Grade A
Condition Description Please note, this screen was pulled out of working HP desktop and is in excellent cosmetic condition with no scratches on LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! This LCD Assembly includes the Touch Control Board with 4 Digitizer Cables.

Description

HP Pavilion 27-n Series LG LM270WF5(SL)(N2) 27" 1920x1080 HD IPS LCD Touchscreen Display Panel Assembly 712648-002. This LCD assembly has the Bang & Olufsen logo and is designed for the HP Pavilion 27-n Series All-in-One Desktop PC with Touchscreen compatibility.

HP Screen Assembly Part Number: 712648-002
LG LCD Part Number: LM270WF5(SL)(N2)
Compatible Models:
HP Pavilion 27-n100: 27-n101nf 27-n101nl 27-n100nf 27-n107a 27-n107nf 27-n114nb 27-n126nz 27-n150ng 27-n160kr 27-n229nb 27-n240nz 27-n014a 27-n105a 27-n170qe 27-n190st
Pavilion 27-n200: 27-n200nk 27-n200nl 27-n200ur 27-n203nf 27-n204ns 27-n205nf 27-n210nf 27-n214nb 27-n216nz 27-n240ur 27-n241ur 27-n250na 27-n251ng







Specifications:

Diagonal Size 27.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1920×1080 (RGB) [FHD]
Configuration RGB Vertical Stripe
Active Area 597.888(H)×336.312(V) mm
Outline Dim. 630(H)×368.2(V) ×12.2(D) mm
Bezel Area 602.0(H)×340.4(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 14ms (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode S-IPS, Normally Black, Transmissive
Support Color 16.7M 72% (CIE1931)
Refresh Rate 60Hz
Assembly Frame Color Black bezel with B&o logo
