HP Pavilion 590-P0109 Mboard 942023-001

  Enlarge
Hp Pavilion 590-P0109 Mboard 942023-001
Hp Pavilion 590-P0109 Mboard 942023-001
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item CodeMBDSK942023001N
BrandHp / Compaq - Hewlett-Packard
Part Number942023-001 942023-501 942023-601
Model NameSunflower
Compatible Part Numbers17516-1 348.0AA03.0011 355.0AA01.0001 348.0AA02.0011 391.0AA10.0002 36M.0AAMB.2001
Compatible ModelsHP Pavilion 590-P0109 Series
CategoryAmd Socket Am4 Motherboard
ConditionBrand New
Condition DescriptionPlease note, this motherboard does not include an I/O Shield, fan’s bracket, cables, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships

Description

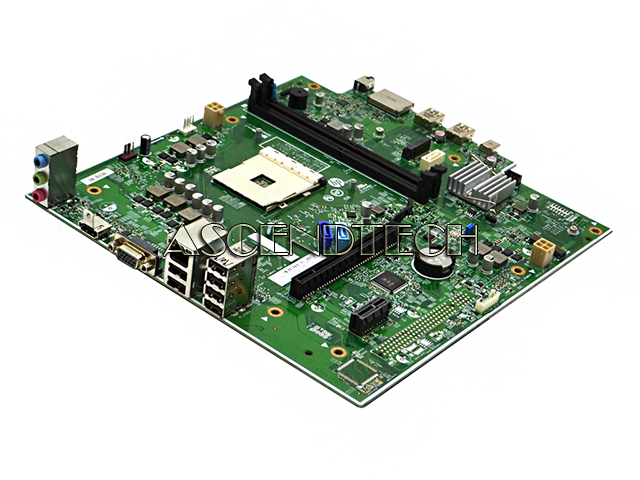

HP Pavilion 590-P0109 Series AMD Chipset Promontory FCH Socket AM4 Sunflower Desktop Motherboard 942023-001 942023-501 942023-601.

Chipset: AMD Promontory FCH
Socket: AMD AM4
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Speed: 2400MHz
Network/Communications: Realtek RTL8111SH 10/100/1000Mbps
Audio: ALC3601
Input/Output Ports: 2x USB 2.0, 4x USB 3.1, 1x Audio Line-in, 1x Speakers, 1x RJ-45 port, 1x Microphone jack, 1x HDMI, 1x VGA
Expansion Slots: 1x PCIe x16 slot, 1x PCIe x1 slot, 1x M.2 socket 1, key A, 1x M.2 socket 3, key M
Type: Desktop Motherboard

Please Note: Motherboards are part number specific. You must search by the exact part number of the motherboard you are replacing. The manufacturer part number of the original motherboard has to be an exact match to one you are buying or listed under the list of compatible part numbers, otherwise it may be different and may not work. Buying a matching part number is required in order to avoid returns, delays and lost shipping fees. You can NOT go by the model or serial number of the system alone! We obtain cross reference and compatibility information from the manufacturer (as well as various other sources) and while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your system manufacturer. Please order based on the part number only!
