HP PAVILION A1328X 5188-4361 MOTHERBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Hp Pavilion A1328x 5188-4361 Motherboard. Model: 5188-4398 Agena-Gl8e
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4HPCAGENAGL8E
Brand Hp / Compaq - Hewlett-Packard
Model 5188-4398 AGENA-GL8E
Category Intel Lga775 Motherboards

Description

HP Compaq Agena-GL8E Socket 775 Motherboard 5188-4398 5188-4361. HP / Compaq Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

Manufacturer: HP
Part Number: 5188-4361 5188-4398 P5RC-LA

Compatibility:

HP Pavilion a1328x home PC EL456AA,  EL456AAR
HP Pavilion a1329x home PC EL458AA
HP Pavilion a1419h home PC ER893AA,  ER893AAR
HP Pavilion a1217n home PC ER897AA,  ER897AAR
Presario SR1803WM Desktop PC ER978AA,  ER978AAR
Compaq Presario SR1800NX home PC EW211AA,  EW211AAR

Specifications:

Motherboard description
  • Motherboard manufacturer's name: Asus P5RC-LA
  • HP/Compaq name: Agena-GL8E
CPU/Processor
  • Socket: 775
  • Supports Intel Pentium 4, Pentium D and Celeron processors
Front-side bus (FSB)
  • 800/533 MHz
Chipset
  • Northbridge: ATI RC410 Graphics Memory and Controller Hub (GMCH)
  • Southbridge: ATI IXP450
BIOS features
  • 4 Mb FWH EEPROM
  • HP BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus
Form factor
  • Micro ATX size form factor, 9.6 in x 9.6 in
Memory
  • Single-channel memory architecture
  • 2 x 240-pin DIMM sockets support non-ECC 400/533 MHZ DDR2 memory modules
  • Maximum HP/Compaq approved memory is 2 GB
Expansion slots
  • One PCI Express
  • Three PCI
Video graphics
  • Integrated
  • Supports PCI Express x16 graphics cards
Onboard audio
  • Built-in Azalia 8-channel audio
    Realtek ALC883 8-channel High Definition Audio CODEC
Onboard LAN
  • Realtek RTL8100 10/100 Mbps Fast Ethernet controller
Back panel I/O
  • PS/2 keyboard (purple)
  • PS/2 mouse (green)
  • Four USB 2.0 ports
  • One IEEE 1394a port
  • One RJ45 networking port
  • One parallel port
  • One VGA port
  • S-Video port
  • S/PDIF out
  • Six audio ports:
    Side speaker out port (gray)
    Rear speaker out port (black)
    Center/Subwoofer port (yellow-orange)
    Microphone jack (pink)
    Line in jack (light blue)
    Line out jack (lime)

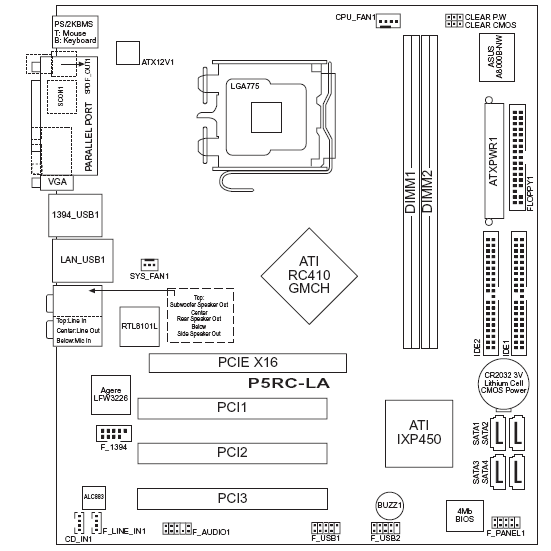

Internal connectors
  • ATX power connector
  • ATX +12v power connector
  • Two IDE connector
  • Four SATA connectors
  • One floppy drive connector (Labeled FLOPPY1)
  • CPU fan connector (Labeled CPU_FAN1)
  • System fan connector (also known as duct or chassis fan)
  • System indicator LEDs / power switch / reset button connector
  • Jumper to clear CMOS (Labeled CLEAR CMOS)
  • Jumper to clear password (Labeled CLEAR P.W)
  • Optical drive audio input (Labeled CD_IN1)
  • line level audio input (Labeled F_LINE_IN1)
  • Front panel headphone and microphone connector (Labeled F_Audio1)
  • Front panel power and LED connectors (Labeled F_PANEL1)
  • Two USB connectors supporting 4 additional USB 2.0 ports on front panel (Labeled F_USB1 and F_USB2)
  • One IEEE 1394a connector supporting one 1394a port (Labeled F_1394)

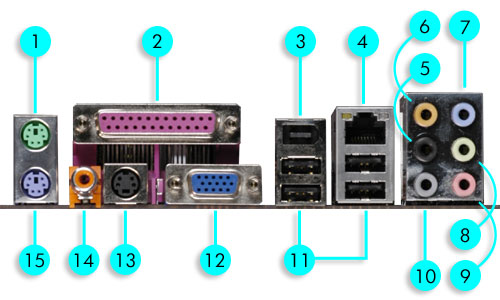

1 - PS/2 mouse port (green). This port is for a PS/2 mouse.
2 - Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3 - IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices.
4 - LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through a network hub.
5 - Rear Speaker Out port (black). This port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration.
6 - Center/Subwoofer port (yellow orange). This port connects the center/subwoofer speakers.
7 - Line In port (light blue). This port connects a tape, CD, DVD player or other audio sources.
8 - Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speaker Out.
9 - Microphone port (pink). This port connects a microphone.
10 - Side Speaker Out port (gray). This port connects to the side speakers in an 8-channel audio configuration.
11 - USB 2.0 ports 1, 2, 3, and 4. These four 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.
12 - Video Graphics Adapter port. This 15-pin port is for a VGA monitor or other VGA-compatible devices.
13 - S-Video: common to many home video components. The video signal is split up into two channels, providing good image fidelity.
14 - Coaxial S/PDIF Out port. This port connects an external audio output device via a coaxial S/PDIF cable.
15 - PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
