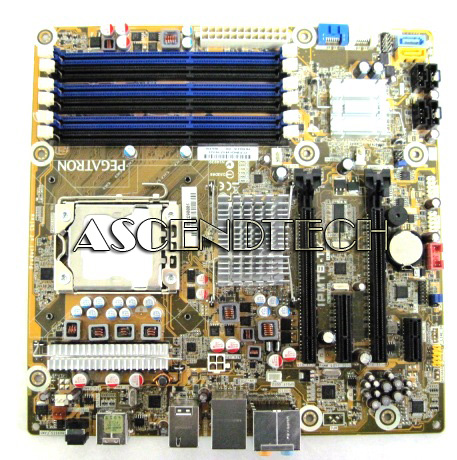

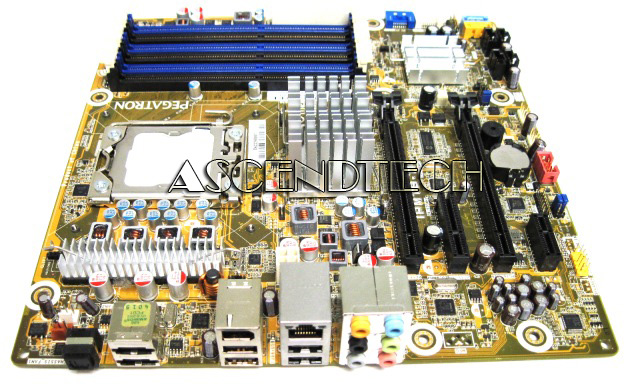

HP Pavilion Elite E9150T 594415-001 MB

HP Pavilion Elite E9150T 594415-001 Pegatron IPMTB-TK Truckee-UL8E Desktop motherboard. HP Motherboard meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Manufacturer: HP
Part Numbers: 594415-001 594415001 IPMTB-TK Truckee-UL8E

Compatible with: Pavilion Elite desktop PC E9150T E9180F E9180T M9600T M9650F

Specifications:

Intel X58 Express
Motherboard supports the following processor upgrades:
Intel Core i7 9xx series
Intel Core i7 Extreme Edition
Triple channel memory architecture
Six 240-pin DDR3 DIMM sockets
Supports PC3-8500 (DDR3-1066) DIMM types
Non-ECC memory only, unbuffered
Supports 4 GB DDR3 DIMMs
Number of channels: 8
Audio CODEC: ALC888S
Maximum bit depth: up to 24-bit
Maximum sample rate: up to 192,000 Hz
Supports SPDIF digital
LAN: 10-Base-T
Interface: Integrated into motherboard
Technology: Intel WG82567V
Data transfer speeds: 10/100/1000 Mb/s (Gigabit Ethernet) integrated LAN NOTE: Gigabit Ethernet is backwards compatible with 10/100 Mb/s network hardware.
Transmission standards:10-Base-T Ethernet
Expansion Slots:
Two PCI Express 2.0 x16 graphics
One PCI Express x4
One PCI Express x1
Back I/O ports:
1 - OPTICAL S/PDIF coaxial out port.
2 - SATA
3 - IEEE 1394 port.
4 - RJ45 Network (LAN)
Center/Subwoofer port
Audio: Rear speaker out
Audio: Line in
Audio: Line out
Audio: Microphone
Audio: Side speaker out
