HP Pavilion Presario 505107-001 MBoard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

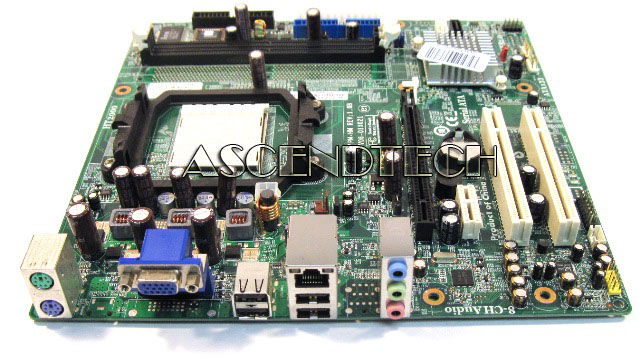

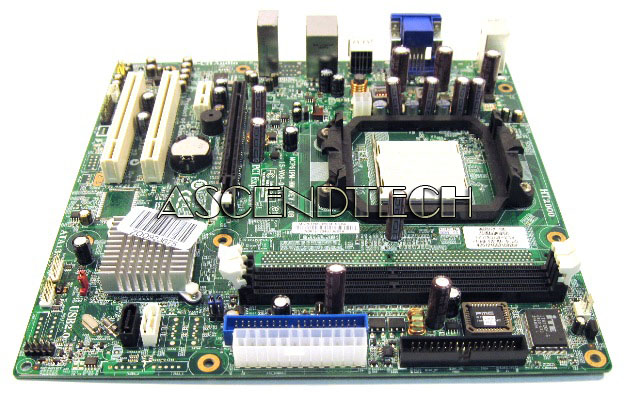

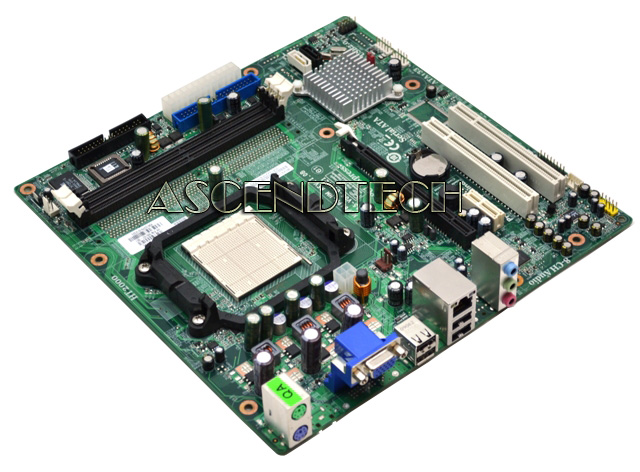

Hp Pavilion Presario 505107-001 Mboard. Model: Mcp61pm-Hm 5189-2789
  Enlarge
Hp Pavilion Presario 505107-001 Mboard. Model: Mcp61pm-Hm 5189-2789
Hp Pavilion Presario 505107-001 Mboard. Model: Mcp61pm-Hm 5189-2789
Hp Pavilion Presario 505107-001 Mboard. Model: Mcp61pm-Hm 5189-2789
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBHPIR851892789
Brand Hp / Compaq - Hewlett-Packard
Model MCP61PM-HM 5189-2789
Category Amd Socket Am2+ Am3 Motherboards

Description

HP Pavilion Presario Series MCP61PM-HM 5189-2789 IRIS8-GL6 505107-001 Motherboard. HP meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

HP Part Number: 505107-001 IRIS8-GL6
Manufacturer's Model Number: MCP61PM-HM
Compatible Part Numbers: 5189-2789

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!

Compatible Models:
Pavilion A6403HK Desktop
Pavilion A6503HK Desktop
Pavilion A6508HK Desktop
Pavilion A6525TW Desktop
Pavilion g3207tl Desktop
Pavilion g3213cx Desktop
Pavilion g3218cx Desktop
Pavilion G3219CX Desktop
Pavilion g3228cx Desktop
Pavilion G3229CN Desktop
Pavilion g3238cx Desktop
Pavilion g3275l Desktop
Pavilion g3278l Desktop
Pavilion g3316l Desktop
Pavilion g3318cx Desktop
Pavilion g3327cn Desktop
Pavilion g3328cx Desktop
Pavilion g3337l Desktop
Pavilion g3338cx Desktop
Pavilion g3373l Desktop
Pavilion g3375l Desktop
Pavilion g3411cx Desktop
Pavilion g3416cn Desktop
Pavilion g3418cx Desktop
Pavilion g3421cx Desktop
Pavilion g3426cn Desktop
Pavilion g3428cx Desktop
Pavilion g3475l Desktop
Pavilion g3476l Desktop
Pavilion g3511cx Desktop
Pavilion g3518cx Desktop
Pavilion g3521cx Desktop
Presario SG3203LA Desktop
Presario SG3207LA Desktop
Presario SG3209LA Desktop
Presario SG3210LA Desktop
Presario SG3309LA Desktop
Presario SG3310LA Desktop
Presario SG3408CX Desktop
Presario SG3420TW Desktop
Presario SG3501LA Desktop
Presario SG3502LA Desktop
Presario SG3510CN Desktop
Presario SG3510LA Desktop
Presario SG3516LA Desktop
Presario SG3530TW Desktop
Presario SR5312CF Desktop
Presario SR5313CF Desktop
Presario SR5313HK Desktop
Presario SR5333WM Desktop
Presario SR5351AP Desktop
Presario SR5420AN Desktop
Presario SR5425CF Desktop
Presario SR5440AN Desktop
Presario SR5507F Desktop
Presario SR5508F
Desktop Presario SR5510F Desktop
Presario SR5512CF Desktop
Presario SR5513CF Desktop
Presario SR5540AN Desktop
Presario SR5556AP Desktop
Presario SR5604F Desktop
Presario SR5608F Desktop
Presario SR5613WM Desktop
Presario SR5640AN Desktop

CPU/Processor:AM2 Socket
Supports the following processors:Athlon 64 X2 with Dual Core technology up to 4800+ (up to 65 Watt TDP)
Athlon 64 up to 3800+
Sempron - All
Front-side bus (FSB)
2000MT/s (2.0 GT/s)
Chipset:NVIDIA GeForce 6150SE nForce 430
BIOS features
Keyboard combination to used to enter BIOS: F10
Form factor:Micro-ATX 9.6 in X 9.6 in
Memory:Dual channel memory architecture
Two 240-pin DDR2 DIMM sockets
Supported DIMM types:
PC2-4200 (533 MHz)
PC2-5300 (667 MHz)
PC2-6400 (800 MHz)
Supports 2GB DDR2 DIMMs
Expansion slots:Two PCI
One PCI Express x16 graphics (for graphics card)
One PCI Express x1 (for cards such as network, sound, tv-tuner)
Video graphics:Integrated graphics using nVidia GeForce 6150SE
Also supports PCI Express x16 graphics cards
Parallel ATA:One 40-pin UltraDMA 100/66/33 connector
Supports PIO, multi-word DMA modes
Supports two PATA disk drives on one PATA ribbon cable (two drives total)
Serial ATA
Two SATA connectors:SATA1 = Black
SATA2 = White
Supports 1 SATA-150 disk drive on each SATA connector
Speed up to 1.5Gb/sec or 3.0Gb/sec, complying with SATA 1.0 and SATA 2.0 specifications
Onboard audio:Audio CODEC ALC888
6 channel high-definition audio
Onboard LAN:10/100Mbps LAN PHY
PCI Realtek RTL8201N
Onboard USB
USB 2.0
Eight ports total
four connectors on back panel
additional headers on motherboard support four additional ports/devices

Back panel I/0:One PS/2 mouse port (green)
One PS/2 keyboard port (purple)
One VGA port
Four USB 2.0
One RJ-45 networking port
Three Stereo-mini audio jacks for:
Line-in (light blue)
Line-out (lime)
Microphone-in (pink)
Internal connectors
One 24-pin ATX power connector
One 4-pin ATX power connector
One PATA connector
Two SATA connectors
One floppy drive connector
Two 12v fan connectors for CPU fan and PC fan
One 9-pin header for power button, reset button, power LED, and HDD LED
One line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)
One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
Two USB headers supporting 4 additional USB 2.0 ports or devices
