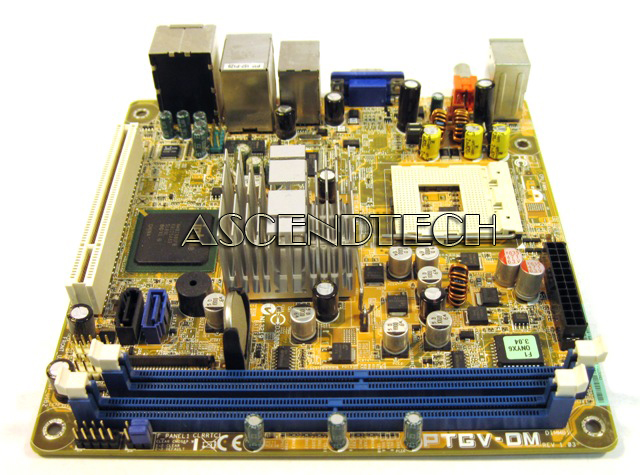

HP PTGV-DM Onyx2-GL8E Motherboard

HP Pavilion Slimline S7000 Series Onyx2-GL8E 5188-3647 Desktop Motherboard. HP meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

HP Part Number: 5188-3647
Compatible Part Numbers: Onyx2-GL8E PTGV-DM

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!

Compatible Models:
HP Pavilion Slimline S7320N Desktop
HP Pavilion Slimline S7530N Desktop
HP Pavilion Slimline S7541KR Desktop
HP Pavilion Slimline S7540A Desktop
HP Pavilion Slimline S7527C Desktop
HP Pavilion Slimline S7520LA Desktop
HP Pavilion Slimline S7520KR Desktop
HP Pavilion Slimline S7517C Desktop
HP Pavilion Slimline S7520CN Desktop
HP Pavilion Slimline S7510N Desktop
HP Pavilion Slimline S7500Y Desktop
HP Pavilion Slimline S7421C Desktop
HP Pavilion Slimline S7500FR Desktop
HP Pavilion Slimline S7500CN Desktop
HP Pavilion Slimline S7400N Desktop
HP Pavilion Slimline S7420N Desktop
HP Pavilion Slimline S7410N Desktop
HP Pavilion Slimline S7415C Desktop
HP Pavilion Slimline S7310N Desktop

Specifications:

PS/2 keyboard port (purple)
PS/2 mouse port (green)
1 x VGA (monitor) port
4 x USB (2.0) ports
1 x IEEE 1394a port
1 x RJ-45 networking port
1 x SPDIF out port
Audio ports:
line in (light blue)
line out (lime)
microphone (pink)
side speaker out (gray)
rear speaker out (black)
center/subwoofer (yellow orange)
