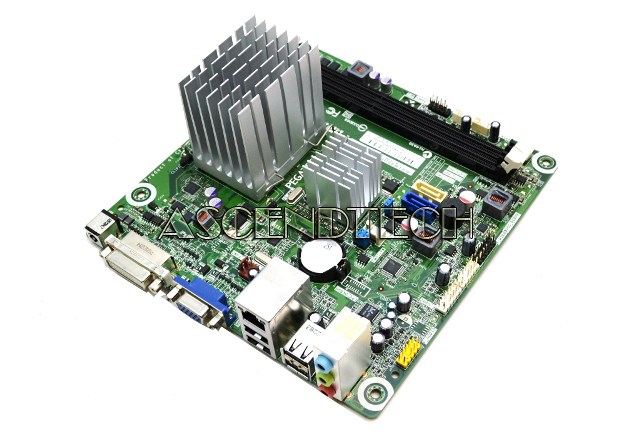

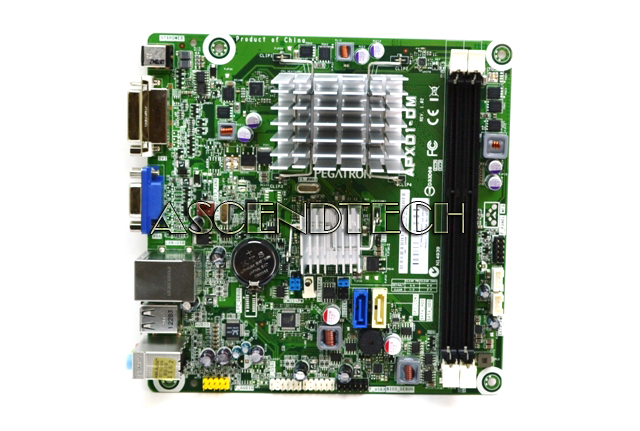

HP Redwood B 699342-001 AMD Motherboard

HP Compaq CQ2000 Pavilion P2-1000 Series AMD Hudson-D1 Domino Redwood B 699342-001 Desktop Motherboard. HP meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

HP Part Number: 699342-001
Compatible Part Numbers: Pegatron APXD1-DM 69M1QAPE0I03

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!

Compatible Models:
HP Compaq CQ2724LA Desktop PC
HP Compaq CQ2728LA Desktop PC
HP Compaq CQ2730LA Desktop PC
HP Pavilion p2-1120 Desktop PC
HP Pavilion p2-1310 Desktop PC
HP Pavilion p2-1317c Desktop PC
HP Pavilion p2-1343w Desktop PC





I/O Ports and internal connectors:

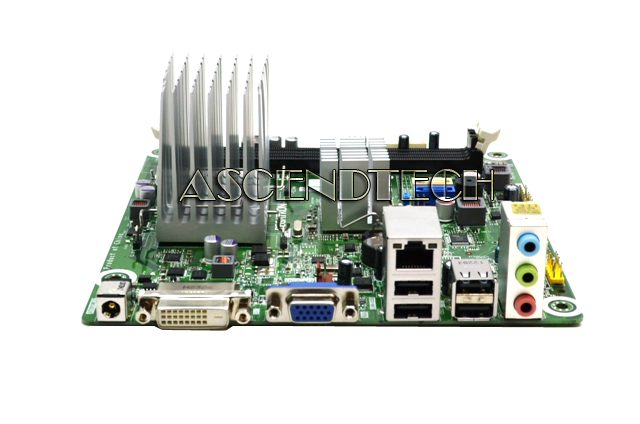

Back I/O ports:
1 - DC input power
2 - DVI-D
3 - VGA
4 - LAN
5 - USB 2.0: 4
6 - Audio: Line in
7 - Audio: Line out
8 - Audio: Microphone

Internal Connectors:
1x System fan
2x SATA 2.0
2x USB 2.0
1x Front panel audio
1x ROM recovery
2x SATA power
1x Front panel
