HP Stingray-GL6E 5187-4651 Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MB4HPSTGP4SDLA
Model 5187-4651 ASUS P4SD-LA
Description

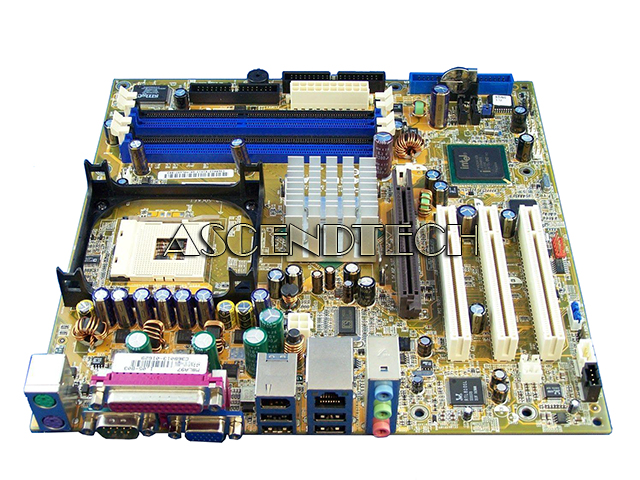

HP Pavilion Presario Series 5187-4651 P4SD-LA Stingray-GL6E uATX Intel mPGA478 Motherboard. HP meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.
HP Part Number: 5187-4651
Compatible Part Numbers: 5187-3429 5187-4294
Manufacturer Name: ASUS P4SD-LA
HP/Compaq Name: Stingray-GL6E
Specifications:
| Motherboard Supplier | ASUS |
| System BIOS Supplier | ASUS/Award |
| Board Form Factor | uATX |
| Processor Brand | Intel |
| Processor Socket Type | mPGA478 |
| Processor Family | Pentium 4HT |
| Maximum Processor Core Frequency | Up to 3.2GHz P4 Northwood |
| Processor Front Side Bus | 800/533/400MHz |
| Hyper Threading Support | Yes |
| Processor VRM Specification | Northwood FMB2 |
| Chipset 'North Bridge' | 865G |
| Chipset 'South Bridge' | ICH5 |
| Super I/O | SMsC LPC47M192-NC |
| Flash BIOS Device Type and Density | FWH 4 Mbit |
| Memory Type | DDR SDRAM (Supports duel channel) |
| Memory Speed | PC3200 (400MHz) PC2700 (333MHz) PC2100 (266MHz) |
| Memory Sockets | Four DDR DIMM (184-Pin) |
| Single or Dual Channel | Dual System Memory |
| Maximum Memory Supported | 4GB (4 x 512MB) unbuffered (HP and Compaq recommend 2GB) |
| AGP Graphics Supported | Yes |
| AGP Graphics Maximum Mode | AGP 8x |
| Integrated Graphics Supplier | Intel |
| Integrated Graphics Shared (UMA) Memory | Up to 64MB Intel DVMT - dynamic (32MB if less than 256MB system memory) |
| Graphics Configuration | Integrated on motherboard |
| Graphics Connector | AGP 8x (available) |
| TV-Out Device or Configuration | No |
| Integrated Audio Type | AC'97 |
| AC'97 Codec Device | Realtek ALC650 |
| 5.1 (Dolby) Channel Audio Support | Yes, Six Speaker Mode (Requires audio driver and software setting changes) |
| Passive Speaker Output (Amplified) | Speaker-Out Header |
| Rear Audio Jacks | Microphone, Line-In, Line-Out |
| Front Audio Connectors | Headphones, Microphone, Line-In |
| Ethernet 10/100 LAN Supplier | PCI Realtek RT8101L |
| Ethernet Configuration | Integrated, Down |
| IEEE 1394 Support | Configuration: Integrated on motherboard MAC/PHY Device: TI TSB43AB22 Maximum transfer rate: 400MBps Ports: Two total (1 front, 1 back) |
| IDE/ATAPI UDMA Modes | 2 IDE connectors Supports. 2 IDE devices on each connector. Supports UDMA 100/66/33 - requires an 40 pin/80 conductor cable for UDMA 66 and 100 disk drives 2 SATA connectors Supports. 1 Serial ATA-150 disk drive on each connector |
| Expansion Slots | One AGP, Three PCI, One Ultra ATA |
| USB Ports | Supported up to 8 USB v2.0 |
| USB Front/Rear Options | Up to four front, four rear |
| Rear I/O Ports | x1 Serial Port x1 Parallel Port x1 Floppy x2 PS/2 (Keyboard and Mouse) Ports x1 IEEE 1394 FireWire Port x4 USB 2.0 Ports x1 VGA Monitor Port |
| Front I/O Ports | x2 USB 2.0 Ports x1 IEEE 1394 FireWire Port |
| Fan Support | Headers for CPU and System CPU Fan Speed Control for active fansink System Fan Speed Control |
| Available Manufacturer Options | Integrated graphics (G), Integrated LAN (L), Six speaker mode, Dolby 5.1 (6) Integrated 1394 (E) |
