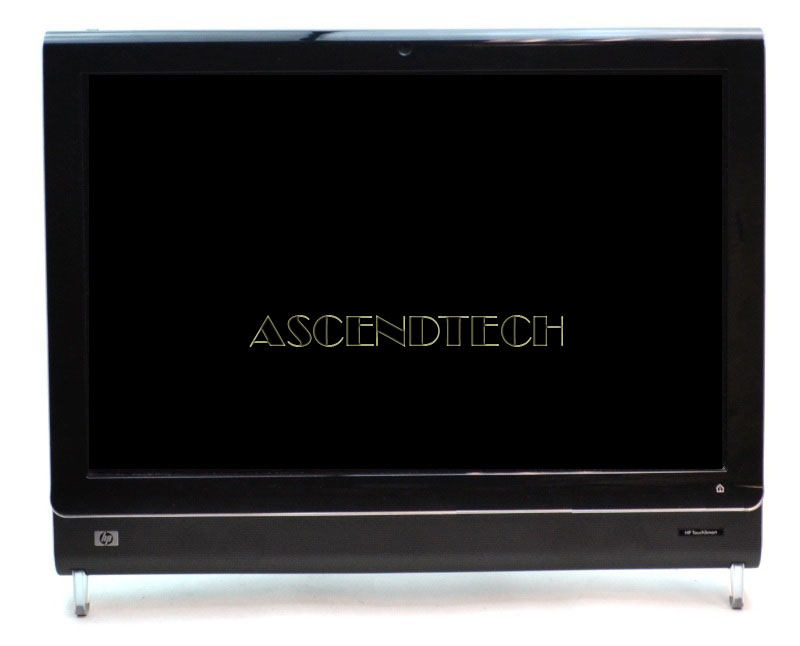

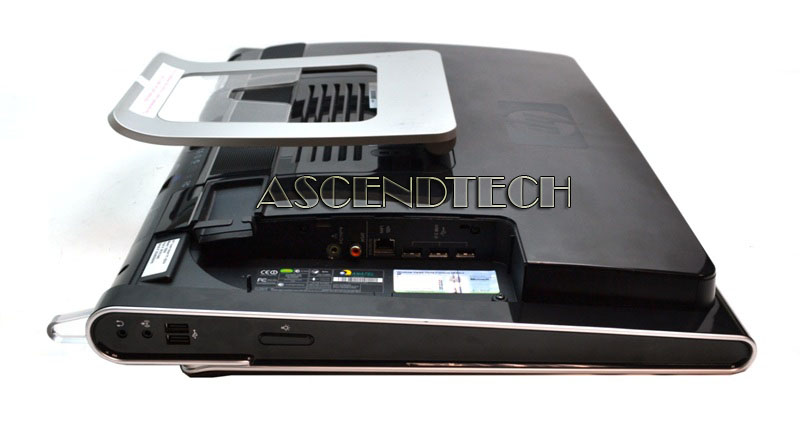

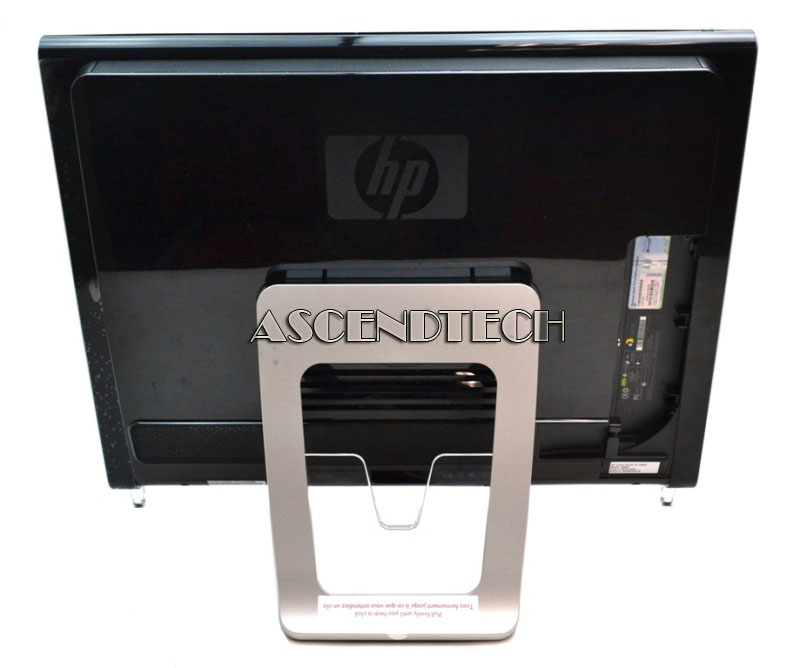

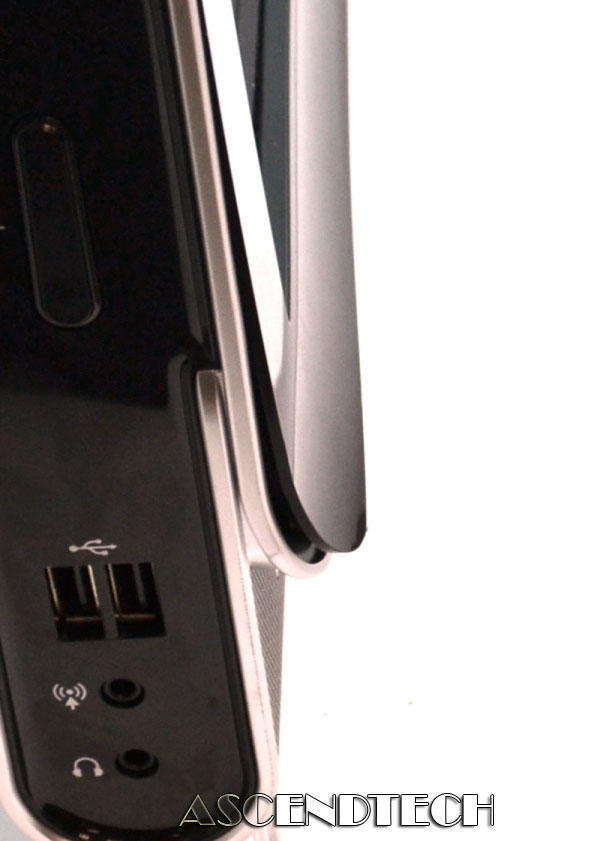

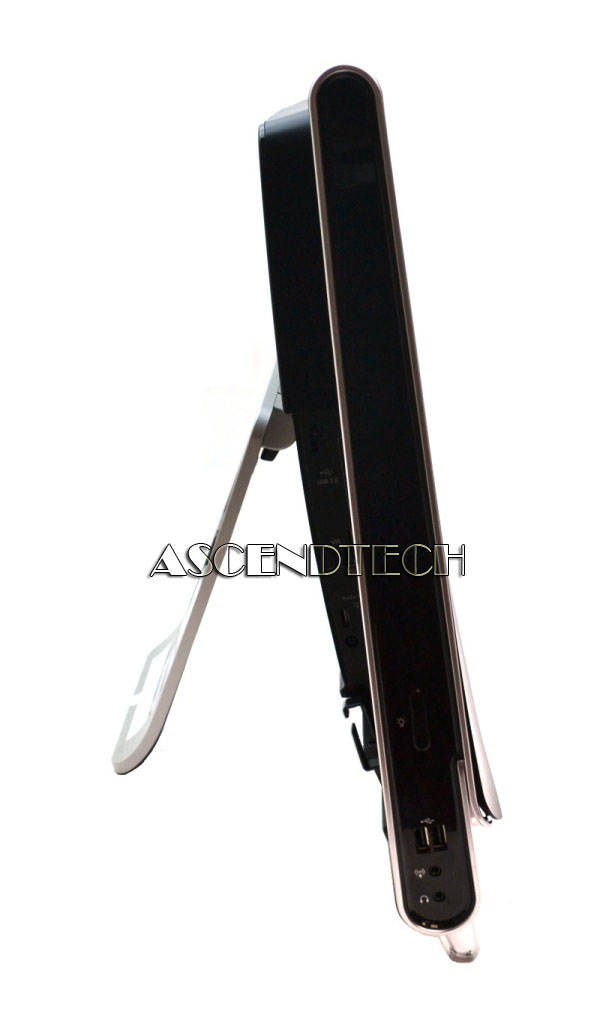

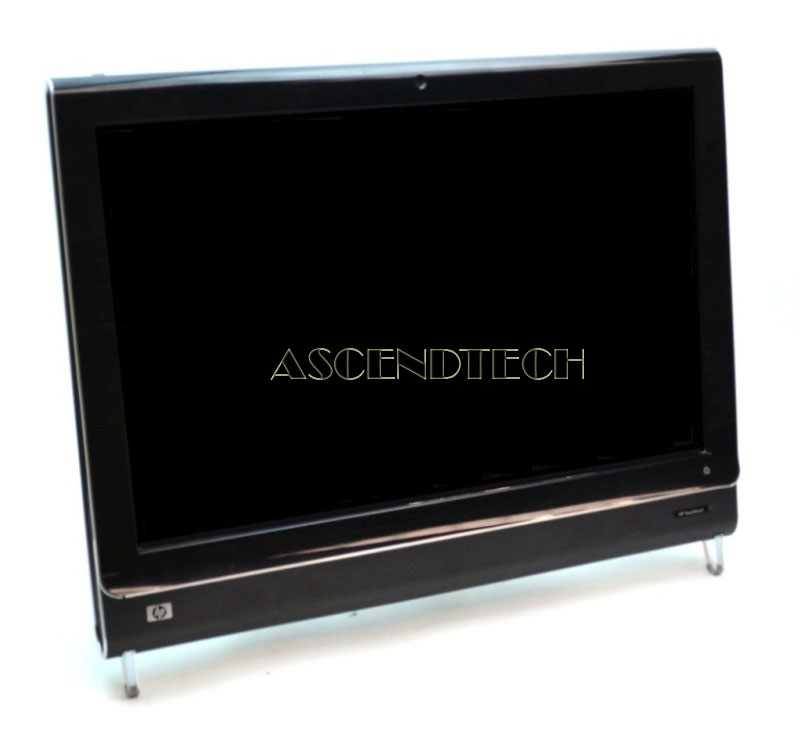

HP TouchSmart IQ524 All-inOne Intel PC

The TouchSmart IQ524 22" All-in-One Desktop Computer from Hewlett-Packard is a great computer for today's media-savvy families. The computer will help you get the most out of your digital devices. You'll be able to use it with digital cameras, video cameras, MP3 players, and more. The computer features an all-in-one design that places it completely within the 22" form factor of a widescreen LCD display. This design aesthetically complements any work environment or living room. Bringing digital photos into your computer is easy with the built-in 5-in-1 digital media card reader and you can capture digital video through the conveniently located FireWire-400 port. You can easily connect peripheral devices to the computer via the five installed USB 2.0 ports. Windows Vista Home Premium Edition is the platform that ties all this hardware and software together, giving you a great computer for the digital savvy family or home office, backed by the Hewlett-Packard name.

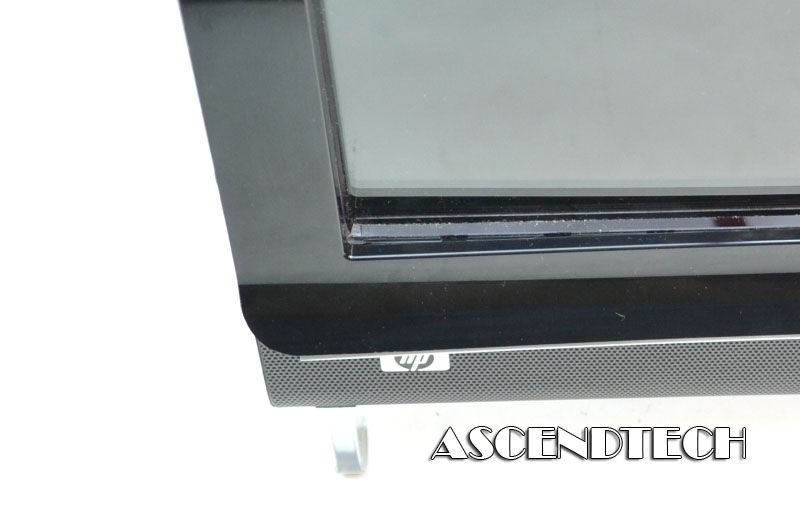

*Please note: This is not a touch screen model! These units were our in-store display models. They are in good working condition but will show normal wear and tear. This units lower left corner is sticking out and will not sit flush with the rest of the case.


Key Features:

• Multi core Technology CPU
• 64 Bit Computing
• Data Bus 800Mhz and 1066Mhz
• 3GB DDR2 RAM
• HDD 500GB 7200rpm
• DVD-RW Drive w/LightScribe Technology
• 22" LCD Display
• NVidia GeForce 9300M w/256MB Graphics Card
• Integrated Camera and Microphone
• WiFi
• 5 in 1 Card Reader
• Microsoft Windows Vista Home Premium


Specifications:

CPU: Intel Core 2 Duo T6400
Processor Speed: 2.0 GHz
Socket: P
Bus speed: 800 Mhz
Installed Video Memory per Card: 256 MB
Memory: 3GB DDR2
Memory upgrade information:
-Dual channel memory architecture
-Two DDR2 SO-DIMM (200-pin) sockets
Supported SO-DIMM types:
-PC2-5300 (DDR2-667 MHz)
-PC2-6400 (DDR2-800 MHz)
-Non-ECC memory only, unbuffered
-Supports 4GB DDR2 SO-DIMMs
-Supports installation of up to 8 GB RAM
-All 4.0 GB is addressable on 64-bit operating PCs
-Approximately 3.2 GB is addressable on 32-bit operating PCs
Motherboard: IMIMV-CF (Maureen)
Manufacturer: Pegatron
Form factor: microATX - 24 cm (9.45 inches) x 21.9 cm (8.66 inches)
Chipset: Intel GM45
Memory sockets: 2 x DDR2
Front side bus speeds: 800 and 1066 Mhz
Processor socket: P
Expansion Slots:
-1 PCI Express x16 slot (for MXM graphics card included on some models)
-2 PCI Express x1 minicard slot
Hard-drive Size: 500 GB
Interface: SATA
Rotational Speed: 7200RPM
CD/DVD disc drive: Supermulti Slimslot DVD drive
Interface: SATA
Data buffer memory: 2 MB
Video graphics: NVIDIA GeForce 9300M
Figure 3: Video card
Interface: PCI Express x16, MXM Connector, 256MB
Maximum resolution: 1920x1200 at 75 Hz
Display: 55.88 cm (22 inch) LCD panel display
Resolution: 1680 x 1050 @ 60Hz
Colors: 16.7 million
Color gamut: 72%
Response time: 5 ms (on/off)
Contrast ratio: 1000:1
Image brightness: up to 300 nits
Sound/Audio: Integrated High Definition Audio
Audio codec: ADI AD1984B
-Supports 2 audio channels through an analog connection
-Supports one S/PDIF digital connection
Speakers: 2.0 stereo (2 speakers)
Power: 4W per speaker
Microphone Interface: Integrated 2 channel (stereo array)
Networking: 1000-Base-T LAN
Interface: Integrated into motherboard
Technology: Realtek RTL8111c
Data transfer speeds: up to 10/100/1000 Mb/s (Gigabit Ethernet) LAN NOTE: Gigabit Ethernet is backwards compatible with 10/100 Mb/s network hardware.
Transmission standards:1000-Base-T Ethernet
802.11 wireless b/g/n PCI-Express Mini card:
Interface type: PCI
Data transfer speeds: up to 300 Mbps (downlink), 150 Mbps (uplink)
Transmission standards: 802.11 b/g/n
Supported antenna connections: 2 internal
Operating band: 2.4 GHz
Supported security protocols: WPA, WEP
Memory Card Reader:
-5-in-1 multimedia card reader
-Supports the following cards:
-Memory Stick (MS) and Memory Stick Pro (MS-Pro)
-MultiMediaCard (MMC)
-Secure Digital High Capacity (SDHC)
-Secure Digital (SD)
-xD Picture Card (xD)
USB - Universal Serial Bus (rear): (x3)
USB - Universal Serial Bus (front): (x2)
Number of Back Firewire Ports: 0
Number of Back USB 2 Ports: 3
Number of Front Firewire Ports: 1
Number of Front USB 2 Ports: 2
Chassis style: All-in-one

*Please note: This is not a touch screen model! These units were our in-store display models. They are in good working condition but will show normal wear and tear. This units lower left corner is sticking out and will not sit flush with the rest of the case.
