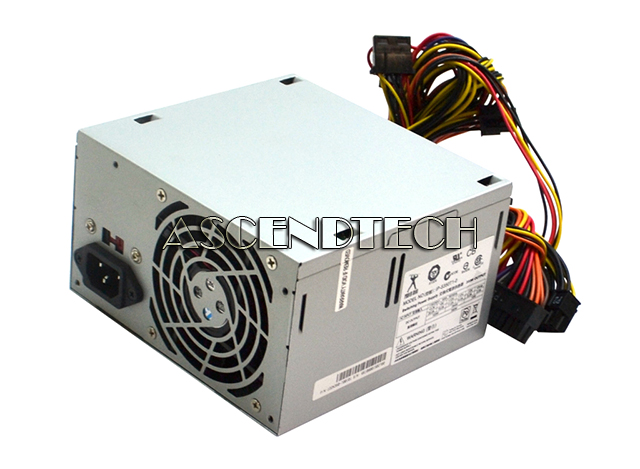

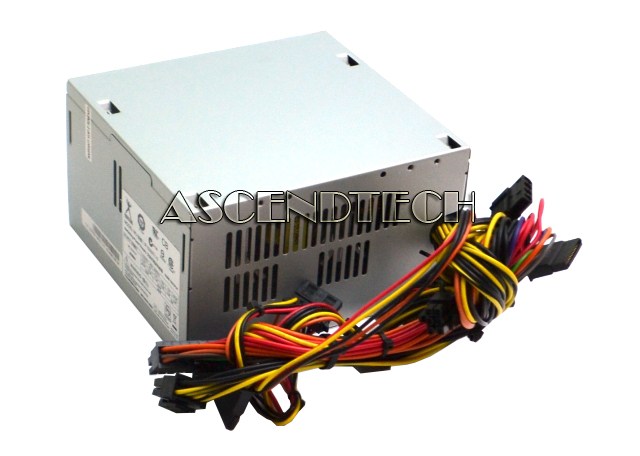

IN WIN Power Man IP-S350T1-0 350W PSU
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code PWRSPLIPS350T10
Brand In-Win
Model IP-S350T1-0
Category Inwin Power Supplies
Condition Like New Grade A
Condition Description Please note, this unit was removed from a brand new PC, it has minor scuffs and scratches from the removal process, but is fully operational & functions as intended!
Description
IN WIN Power Man IP-S-Series T IP-S350T1-0 350W ATX12V 115/230V 8/5A 60/50Hz PSU Switching Power Supply.
Model Number: IP-S350T1-0
Compatible Part Numbers: 1DDN350-T00101 1DDN350-T00620
Specifications:
Type ATX12V / EPS12V
Total Power 350W
AC Input 115/230V
Maximum Output Current
- +12V1: 11A
- +12V2: 14A
- +5V: 15A
- +3.3V: 20A
- -12V: 0.3A
- 5VSB: 2.5A
- Maximum 1: 103W
- Maximum 2: 264W
- Maximum 3: 350W
Connectors
- 1 x 20+4-pin main power connector
- 1 x 4+4-pin +12 V CPU power connector
- 1 x 4-pin FDD power connector
- 2 x Peripheral power connectors
- 3 x SATA power connectors
- 1 x 6-pin PCIe power connector (for PCIe VGA card)
Cooling Fan 1 x 3.1" (80.0 mm)
MTBF 80Khours at 77°F (25°C) per MIL-STD-217D/F
Temperature Operating Ambient: 50 to 104°F (10 to 40°C)
Dimensions (L x W x H) 5.5 x 5.9 x 3.3" (140.0 x 150.0 x 86.0 mm)
Features:
• Multiple +12V Output
• Smart Thermal Control to Balance Noise & Cooling
• 80mm Cooling Fan
• 6 Pin for PCI-E VGA Card
• MTBF 80KHRs @ 25°C per MIL-STD-217D/F
• Operating Ambient +10°C Minimum to +40°C Maximum
• Meets Intel® Haswell Processors
