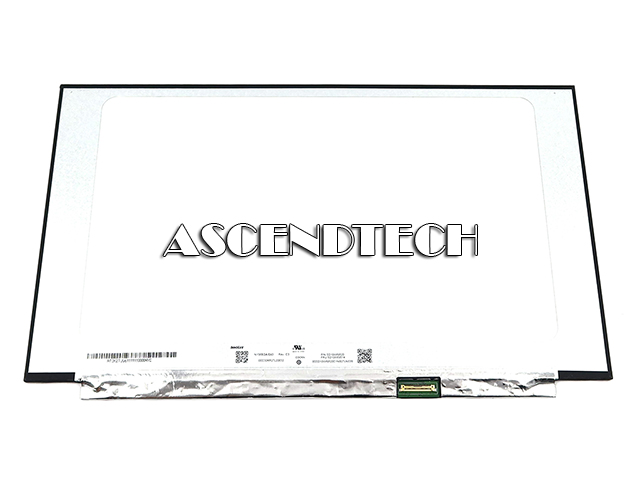

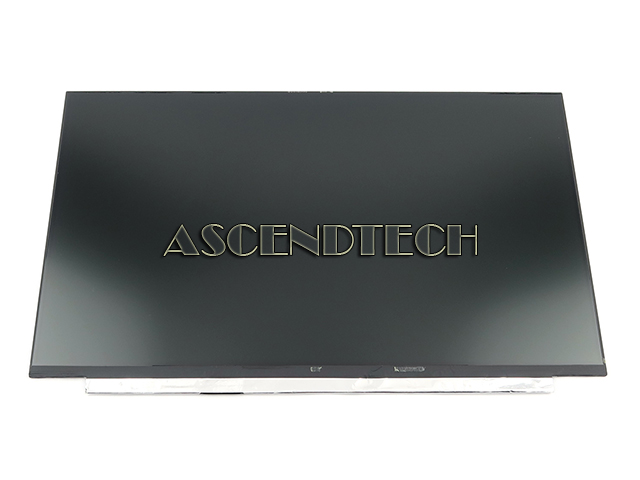

Innolux N156BGA-EA3 15.6" HD LCD Screen
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code LCDLT5D10W6951A
Brand Chi Mei Innolux
Model N156BGA-EA3
Part Number 5D10W69514 8S5D10W69514
Compatible Part Numbers SD10W69520 8SSD10W69520
Compatible Models Lenovo IdeaPad 1-15IJL7 (82LX); 1-15IAU7 (82QD); 1-15ALC7 (82R4); 1-15IGL7 (82V7); 3-15ARE05 (81W4) Series
Category Laptop Lcd Screens & Digitizers
Condition Like New Grade A
Description
Lenovo IdeaPad 1-15IJL7 82LX 1-15IAU7 82QD 1-15ALC7 82R4 1-15IGL7 82V7 3-15ARE05 81W4 Series Chi Mei Innolux N156BGA-EA3 15.6" 1366x768 HD WXGA TN 60Hz 30-pin Matte Anti-glare LED-Backlight Panel Laptop LCD Screen 5D10W69514 8S5D10W69514.
Screen Size: 15.6"
Maximum Resolution: 1366x768
Widescreen: Yes
Screen Surface: Matte, Anti-glare
Screen Panel Type: HD WXGA TN
Touchscreen: No
Refresh Rate: 60Hz
Aspect Ratio: 16:9
Contrast Ratio: 500:1
Response Time: 3/7 (Typ.)(Tr/Td)
Pixel Pitch: 100 PPI
Display Colors: 262K 45% NTSC
Brightness: 220 cd/m²
Viewing Angle: 45/45/20/45
Backlight: LED-Backlight
Connectors: 30-pin
Type: Laptop LCD Screen
