INTEL 810E P3 SOCKET 370 MOTHERBOARD
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description

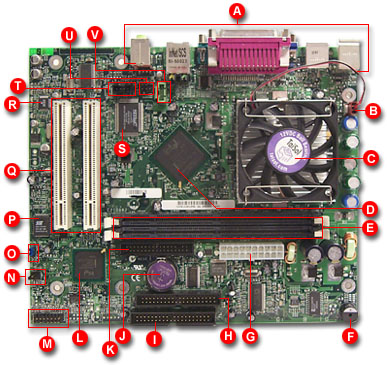

Intel Pentium 3 Socket 370 SDRam PC100 Ultra DMA100 Motherboard With Onboard Video / Sound & LAN! For Intel Pentium 3 Processors (CPU).
Specifications:
*Fan Pictured Is Not Included!
| Chipset | Intel 810E, which includes the following:
|
| BIOS | AMI |
| Memory | 2 PC 100 SDRAM DIMMs - 512 MB maximum |
| Graphics | Intel 810E chip set graphics controller, without 4-MB display cache |
| Audio | Crystal CS4201 AC '97 on-board codec with digital speaker support |
| Network Controller | On-board Intel Kinnereth 10/100 LAN controller |
| IDE Interface | Ultra DMA/100 (dual channel) 24-Bit LBA limits the hard drive to 137 GB |
| PCI Slots | Two slots that support low profile PCI adapter cards |
| Security | Screw lock and Kensington lock options |
| Form Factor | Flex ATX |
| I/O Panel | 2 PS/2 ports, VGA port, parallel port, serial port, two USB ports, RJ-45 LAN connector, Microphone in, Line out |
| Power Management Specifications | |
| Approved Operating Systems | Windows 98 SE, Windows NT 4.0, Windows Me, and Windows 2000 |
| Wake-Up Events | PS/2, USB port in ACPI and APM modes, power button |
| Power Management | Energy Star/Blue Angel compliant under Windows 98 SE, Windows Me, and Windows 2000 |
| Management Application | LAN Desk Client Manager |
| Management Features |
