INTEL 865GV P4 S.478 533/800FSB Board

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Intel 865Gv P4 S.478 533/800Fsb Board. Model: D865gv D865

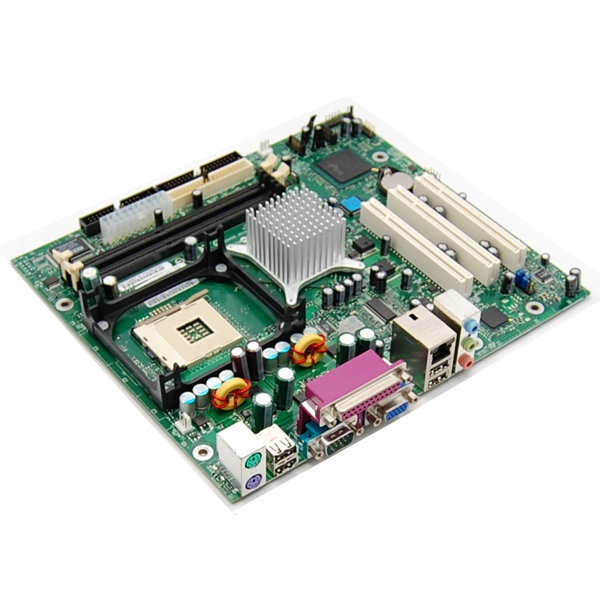

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4INTD865GHZLT
Brand Gateway
Model D865GV D865
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Intel 865GV Chipset Intel Pentium 4 Socket 478 DDR400 SATA / IDE Motherboard With Onboard Video / Audio & LAN! For Intel Pentium 4 & Celeron Processors In Socket 478.

Features & Specifications:

  • A microATX form factor
  • Intel® 865GV Chipset
  • Two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets
  • Intel Pentium 4 Socket 478 400FSB 533FSB and 800FSB Support
  • Intel Celeron Socket 478 400FSB and 533FSB Support
  • Support for 2 GB of system memory
  • Intel® Extreme Graphics 2 controller onboard Video
  • Intel® Pro 10/100 NIC Ethernet LAN subsystem using the Intel® 82562EZ Platform LAN Connect (PLC) device
  • Onboard Audio subsystem for AC ’97 processing using the Realtek ALC202A codec
  • Support for USB 2.0 devices
  • Serial ATA / SATA Hard Drive Support

*Please Note: This Is An OEM System Builder Motherboard, does not come with Back-plate Cover / Rear I/O Shield!

Form FactormicroATX Form Factor (9.60 inches × 8.50 inches [243.84 millimeters × 215.90 millimeters])
ProcessorSupport for an Intel Pentium 4 S.478 Socket 478 400/533/800 Mhz FSB and Celeron processor with 400/533FSB
Memory
  • Two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR 400 MHz, DDR 333 MHz and DDR 266 MHz DIMMs
  • Support for up to 2 GB of system memory
ChipsetIntel® 865GV Chipset, consisting of:
  • Intel® 82865GV Graphics and Memory Controller Hub (GMCH)
  • Intel® 82801EB I/O Controller Hub (ICH5)
  • 4-Mbit Firmware Hub (FWH)
VideoIntel® Extreme Graphics 2 controller
AudioAudio subsystem for AC '97 processing using the Realtek ALC202A codec
I/O ControlSMSC LPC47M172 LPC Bus I/O controller
USB Support for USB 2.0 devices
Peripheral Interfaces
  • Eight USB ports
  • One serial port
  • One parallel port
  • Two Serial ATA IDE interfaces
  • Two Parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
LAN Support10/100 Mbits/sec LAN subsystem using the Intel® 82562EZ Platform LAN Connect (PLC) device
BIOS
  • Intel/AMI BIOS (resident in the 4 Mbit FWH)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Expansion Capabilities
  • Three PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
Hardware Monitor Subsystem
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan connectors
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control



Product Packaging
  • OEM Motherboard Only! No Manuals, Cables Or Rear I/O Shield. Systems Builder Package!

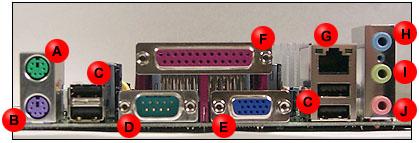

Rear panel ports

APS/2 mouse port
BPS/2 keyboard port
CTwo USB 2.0 stacks, each stack having two USB ports
DSerial port
EVGA monitor port
FParallel port
GRJ-45 network connector. Refer to the table at right for the port LED information.
HLine in jack.
IFront left and right out jack.
JMicrophone jack.
