Intel 945G S.775 1066FSB BTX Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

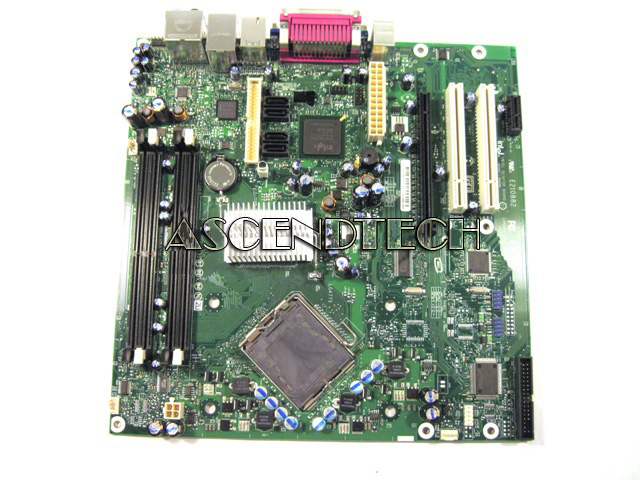

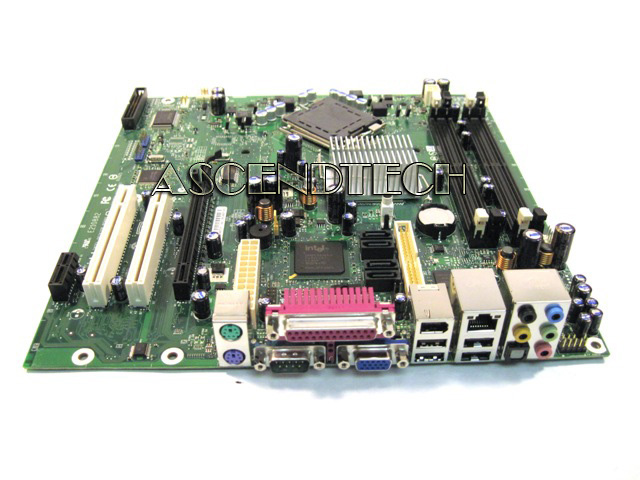

Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description
Intel 945G BTX Motherboard. This Motherboard Supports Intel Pentium® 4 and Celeron® D processors and Pentium D dual core processors. Memory support for DDR2 667/533/400 MHz DIMMs, expandable up to 4 GB. Please note this motherboard features Gateway Logo when booted, this board can be used in STANDARD BTX cases. This board is not designed for ATX cases, this is the new style BTX.
Features:
- Intel 945G chipset
- Supports Intel Pentium® 4 and Celeron® D processors and Pentium D dual core processors
- LGA775 socket
- 1066, 800, or 533 MHz system bus
- Memory support for DDR2 667/533/400 MHz DIMMs, expandable up to 4 GB
- Integrated Intel Graphics Media Accelerator 900
- Integrated Intel High Definition audio using Sigmatel® 9220
- Integrated Intel 10/100 LAN
- Two PCI conventional, one ×16 PCI Express, and one ×1 PCI Express add-in card slots
Packaging: OEM System Builder Bulk Packed. IO Shield not included.
Specifications:
| Form Factor | |
| CPU Support | Intel Pentium® 4 and Celeron® D processors and Pentium D dual core processors
|
| System Bus Support | 1066, 800, or 533 MHz |
| Memory Support | DDR2 667/533/400 MHz DIMMs, expandable up to 4 GB |
| MCH (northbridge) | Lakeport-G |
| ICH (southbridge) | ICH7-DH (EastFork Disabled) |
| Firmware Hub/SPI | 4 Mb |
| Integrated LAN | Intel Ekron-R 10/100 |
| Integrated Audio | |
| Serial Input/Output (SIO) | PA 1.6/3.0 |
| Add-in Card Slots | |
| Rear panel I/O Ports | |
| Internal Headers |
