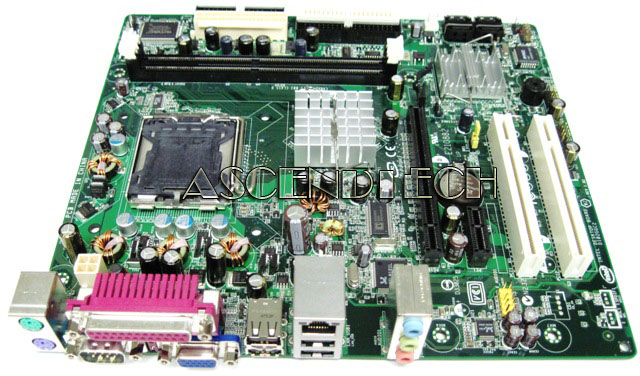

D101GGC | Intel D101ggc Lga775 800Fsb Motherboard

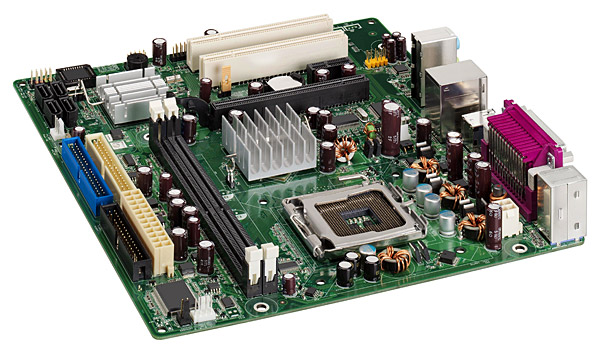

The Intel® Desktop Board D101GGC delivers an integrated graphics solution for your next value platform. The Intel® Desktop Board D101GGC supports the Intel® Pentium® D Processor, the Intel® Pentium® 4 Processor with Hyper-Threading Technology† and the Intel® Celeron® D processor in the LGA775 package. This uATX board delivers both quality and value by offering features such as High Definition Audio and Realtek* 8101L 10/100 LAN. This desktop board also features PCI Express* x16, DDR 400/333 memory, and 8 USB 2.0 ports. Manufactured by Intel for Gateway / eMachines. IO Shield not included.

Please Note: This is an OEM Motherboard. It does not come with Rear I/O Shield / (Back-Plate Cover for the case).

Feature	Specification
Form Factor	uATX Dimensions: 9.6 × 9.6 inches
CPU Support	Intel® processors in the LGA775 package
System Bus Support	800/533 Mhz
Memory Support	Two DDR1 DIMM slots DDR1 400/333 MHz single channel modules Maximum capacity: 2 GB
MCH (Northbridge)	ATI RC410 Rev. A12
ICH (Southbridge)	IXP 450
Firmware Hub	4 MB
Video	Integrated ATI Radeon Xpress 200 Up to 128 MB of shared video memory
Audio	Integrated Azalia 6-Channel (5.1) High Definition Audio
Network	Integrated Realtek 8101L 10/100 Ethernet LAN
Serial Input/Output (SIO)	SMSC SCH5017
Add-In Card Slots	One PCI Express ×16 (graphics interface) One PCI Express ×1 Two PCI conventional

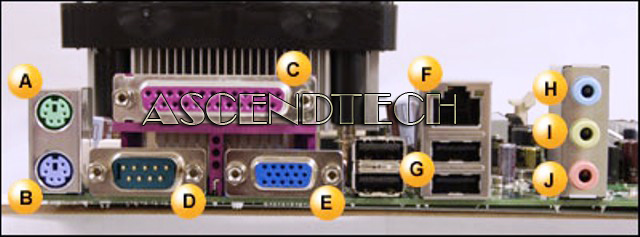

Rear Panel I/O Ports	One PS/2 mouse One PS/2 keyboard One parallel One serial One VGA monitor Four USB 2.0 One RJ-45 LAN connector Three analog audio jacks
Internal Headers	Two 2-port USB 2.0 connectors (2 × 5) Front panel audio connector (mic / headphone) (2 × 5) Front panel connector (2 × 5 supports power LED, power switch, hard drive LED, and, if present, reset switch) Floppy disk drive connector Primary IDE connector Secondary IDE connector Four Serial ATA (SATA) connectors Chassis Intrusion Header Main Power Connector 24-pin Auxiliary 12V CPU power connector 4-pin CPU fan connector Front fan connector Rear fan connector BIOS configuration jumper

The following is a list of all supported processors:

Processor Family	Processor Number	sSpec Number	Processor Speed	System Bus Frequency	L2 Cache Size
Intel® Pentium® D	950	SL95V only	3.40 GHz	800 MHz	2x2 MB
	945		3.40 GHz	800 MHz	2x2 MB
	940	SL95W only	3.20 GHz	800 MHz	2x2 MB
	930	SL95X only	3 GHz	800 MHz	2x2 MB
	930	SL94R only	3 GHz	800 MHz	2x2 MB
	925		3.0 GHz	800 MHz	2x2 MB
	920	SL95S only	2.80 GHz	800 MHz	2x2 MB
	915		2.80 GHz	800 MHz	2x2 MB
	820		2.80 GHz	800 MHz	2x1 MB
	805		2.66 GHz	533 MHz	2x1 MB
Intel® Pentium® 4	661		3.60 GHz	800 MHz	2 MB
	651		3.40 GHz	800 MHz	2 MB
	650		3.40 GHz	800 MHz	2 MB
	641		3.20 GHz	800 MHz	2 MB
	640		3.20 GHz	800 MHz	2 MB
	631		3 GHz	800 MHz	2 MB
	630		3 GHz	800 MHz	2 MB
	551		3.40 GHz	800 MHz	1 MB
	550J		3.40 GHz	800 MHz	1 MB
	541		3.20 GHz	800 MHz	1 MB
	540J		3.20 GHz	800 MHz	1 MB
	540		3.20 GHz	800 MHz	1 MB
	531		3.00 GHz	800 MHz	1 MB
	530J		3 GHz	800 MHz	1 MB
	530		3 GHz	800 MHz	1 MB
	524		3.06 GHz	533 MHz	1 MB
	521		2.80 GHz	800 MHz	1 MB
	520J		2.80 GHz	800 MHz	1 MB
	520		2.80 GHz	800 MHz	1 MB
	511		2.80 GHz	533 MHz	1 MB
	506		2.66 GHz	533 MHz	1 MB
Intel® Celeron® D	351	SL7TZ only	3.26 GHz	533 MHz	256 KB
	346	SL7TY only	3.06 GHz	533 MHz	256 KB
	345J	SL7TQ and SL7VV only	3.06 GHz	533 MHz	256 KB
	341	SL7TX only	2.93 GHz	533 MHz	256 KB
	340J		2.93 GHz	533 MHz	256 KB
	336	SL7TW only	2.80 GHz	533 MHz	256 KB
	335J		2.80 GHz	533 MHz	256 KB
	331	SL7TV only	2.66 GHz	533 MHz	256 KB
	330J		2.66 GHz	533 MHz	256 KB
	326	SL7TU only	2.53 GHz	533 MHz	256 KB
	325J		2.53 GHz	533 MHz	256 KB
