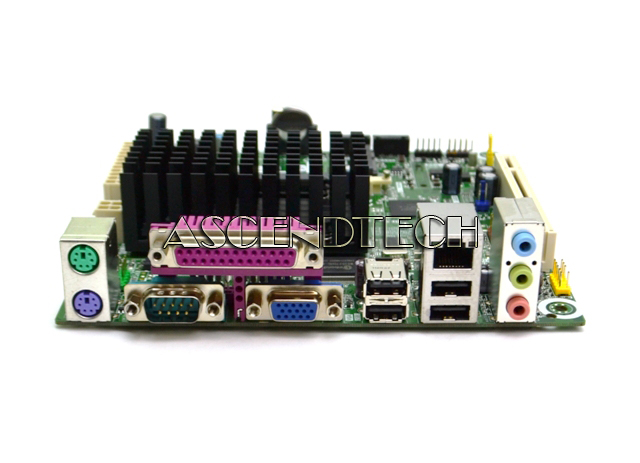

Intel D525MW Mboard E93082-402 No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBINTD525MWNOIO
Brand Intel
Model D525MW
Part Number E93082-402
Category All-In-One Desktop Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover, or any other accessories! Motherboard only!
Description
Intel D525MW Express Chipset NM10 Atom D525 1.8GHz Dual-Core Processor DDR3 USB 2.0 SATA 3.0Gb/s Mini-ITX Desktop Motherboard E93082-402.
Chipset: Intel NM10 Express
Socket: BGA
Processor/CPU: Atom D525 Dual-Core
Processor/CPU Speed: 1.80GHz
Number of Cores: 2
L2/L3 Cache: 2x 512KB 8-way set associative caches L2
Max Supported Memory: Up to 4GB
Number of Memory Slots: 2 SO-DIMM
Memory Type: DDR3 SDRAM
Pins: 204-pin
Speed: 800/1066/1333MHz
Video Chipset/GPU Model: Integrated GMA 3150
Network/Communications: 10/100/1000 Mbit/s Ethernet LAN subsystem using a Realtek 8111E Gigabit Ethernet Controller
Audio: Multi-streaming 5.1 (6-channel) audio subsystem support based on the Realtek ALC662 high definition audio codec
Connectors: 1x Main Power, 1x CPU Core Power, 2x SATA, 1x Serial port header, 1x Front panel header, 1x Standby power LED, 1x Front Panel Wireless Activity LED Header, 1x S/PDIF header, 1x Chassis fan header, 1x Front panel audio header
Input/Output Ports: 2x PS/2, 1x Parallel, 1x Serial, 1x VGA, 4x USB 2.0, 1x RJ-45, 1x Audio Line-In, 1x Audio Line-Out, 1x Microphone
Expansion Slots: 1x PCI-Express x1 Mini Card, 1x PCI Conventional bus
Form Factor: Mini-ITX
Type: Desktop Motherboard
