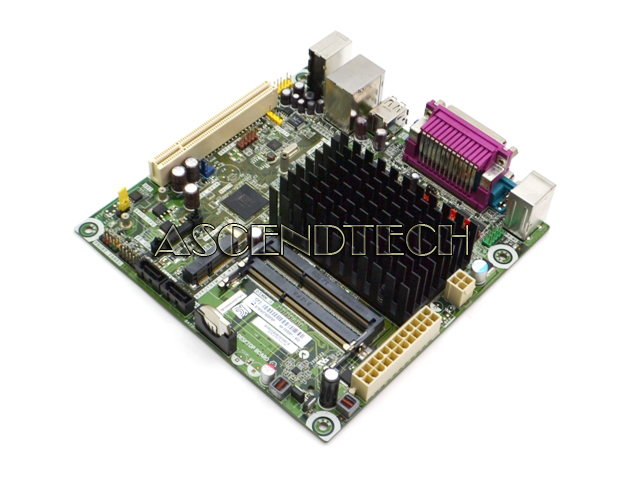

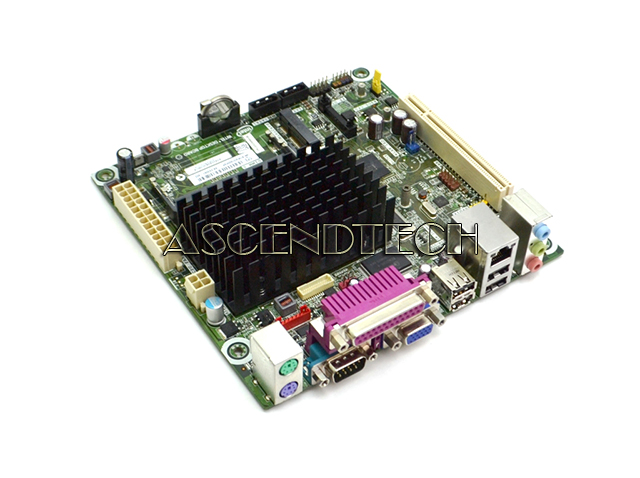

Intel D525MWVE Mboard E93081-402 No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBID525MWVENOIO
Brand Intel
Model D525MWVE
Part Number E93081-402
Category All-In-One Desktop Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover, or any other accessories! Motherboard only!
Description
Intel D525MWVE Atom D525 1.8GHz Dual-Core Processor Express Chipset NM10 DDR3 SDRAM USB 2.0 SATA 3.0Gb/s Mini-ITX Desktop Motherboard E93081-402.
Chipset: Intel NM10 Express Chipset
Socket: BGA
Processor/CPU: Intel Atom D525 Dual-Core
Processor/CPU Speed: 1.80GHz
Number of Cores: 2
L2/L3 Cache: 2x 512KB 8-way set associative caches L2
Max Supported Memory: Up to 4GB
Number of Memory Slots: 2 SO-DIMM
Memory Type: DDR3 SDRAM
Pins: 204-pin
Error Correction (ECC): Non-ECC
Video Chipset/GPU Model: Intel GMA 3150
Network/Communications: 10/100/1000 Mbit/s, Realtek 8111E Gigabit Ethernet
Audio: 6-channel Intel HD Audio Subsystem, Realtek ALC662 audio CODEC
Connectors: 1x Main Power, 1x CPU Core Power, 2x SATA, 1x Fan header, 1x LVDS voltage selector jumper block, 1x LVDS power, 1x 30-pin LVDS, 1x Serial COM port header, 2x USB 2.0 headers, 1x USB 2.0 (supports Intel USB SSD) header, 1x Wireless activity LED header, 1x S/PDIF, 1x Front-panel Audio

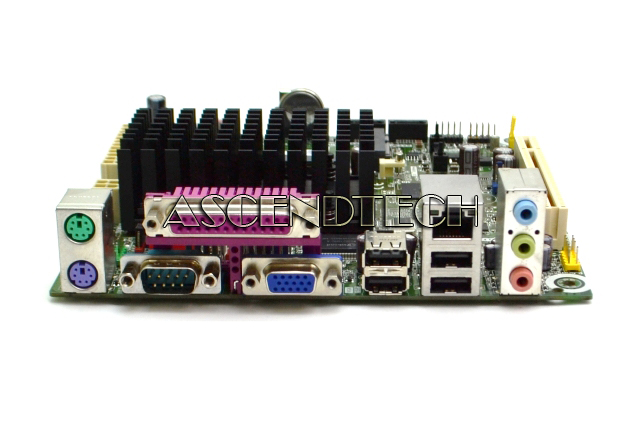

Input/Output Ports: 2x PS/2, 1x Parallel, 1x Serial, 1x VGA, 4x USB 2.0, 1x RJ-45, 1x Audio Line-In, 1x Audio Line-Out, 1x Microphone
Expansion Slots: 1x PCI, 1x Mini PCI-E x1
Form Factor: Mini-ITX
Type: Desktop Motherboard
Features: DirectX 9.0c , OpenGL 1.4, Hardware Pixel Shader 2.0, Vertex Shader Model 2.0, 1.6 dual texture GigaPixel/s max fill rate , VGA and LVDS (single channel, 18 bpp)
