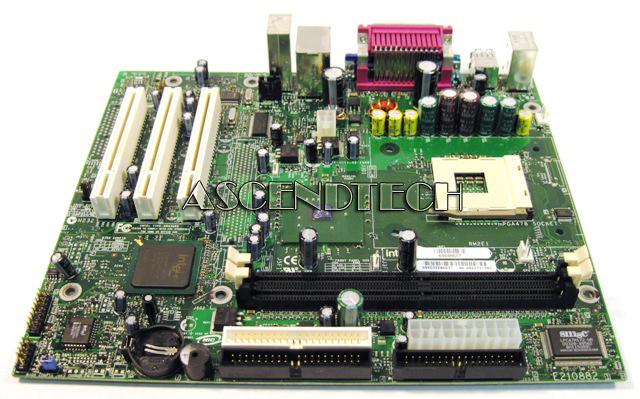

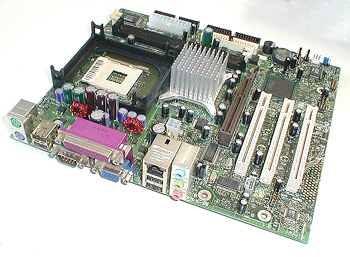

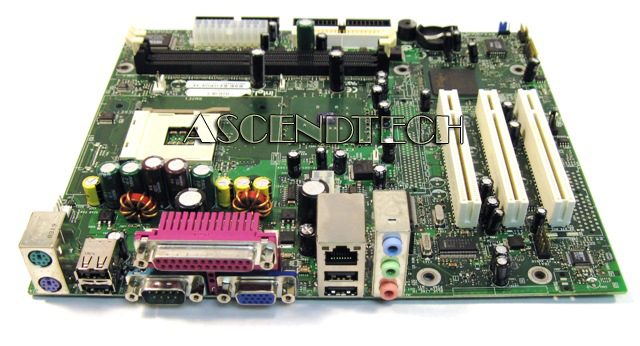

Intel D845GRG P4 S.478 Motherboard

Intel D845GRG P4 S.478 Motherboard. The Intel Desktop Board D845GRG expands the Intel Pentium 4 processor platform-based family of boards to include integrated graphics. Featuring the Intel 845G chipset, this desktop board delivers cutting-edge technology and versatility to meet the needs of today’s computing environment.

Specifications:

Form Factor
microATX (9.60 inches by 8.20 inches)
Processor
Support for an Intel® Pentium® 4 processor in a 478 socket with a 400/533 MHz system bus
Support for an Intel® Celeron® processor in a 478 socket with a 400 MHz system bus
Memory
Two 184-pin DDR SDRAM DIMM sockets
Support for single-sided or double-sided DIMMs (DDR 200 and DDR 266)
Support for up to 2 GB system memory
Chipset
Intel
Audio
Audio subsystem for AC '97 processing using the Analog Devices AD1981A codec featuring SoundMAX Cadenza
Video
Intel® Extreme Graphics controller
AGP connector supporting 1x, 2x, and 4x AGP cards (1.5 V only) or an AGP Digital Display (ADD) card
Integrated retention mechanism
Peripheral Interfaces
4 x USB ports
1 x serial port
1 x parallel port
2 x IDE interfaces with Ultra DMA 33 and ATA-66/100 support
2 x PS/2 ports
Three fan connectors
Expansion Capabilities
3 PCI, 1 AGP
